MS120-SEBDP (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine MPU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

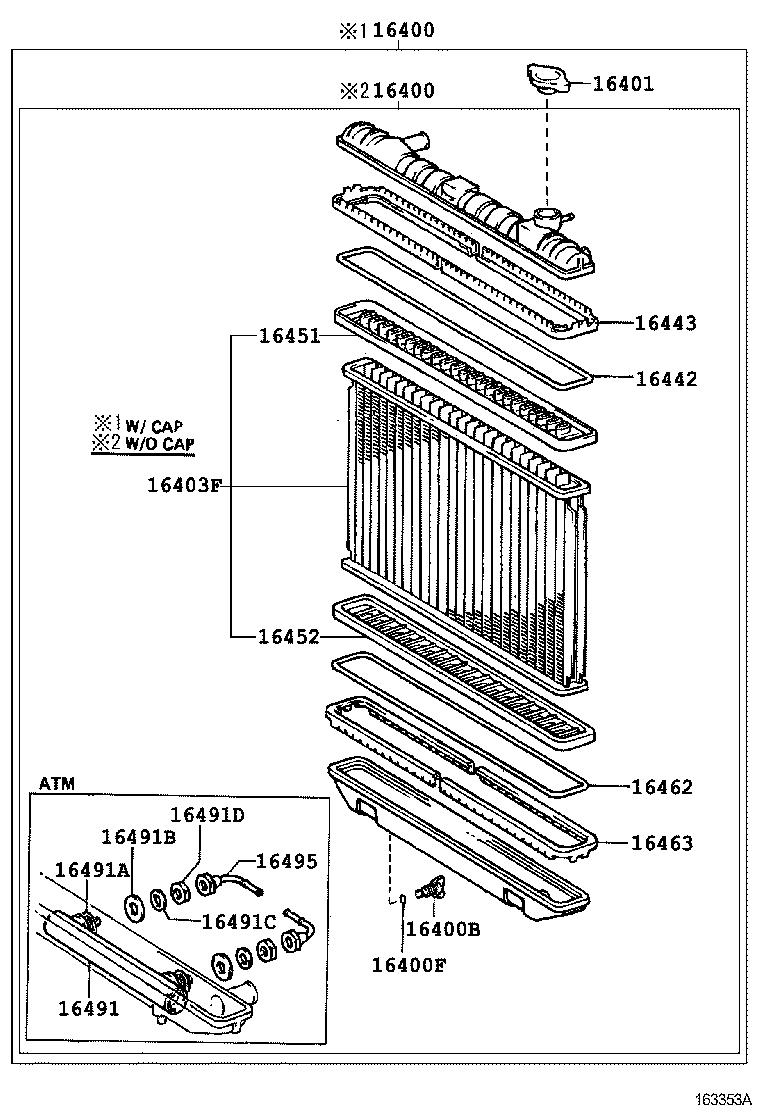

ILLUST NO. 3 OF 3(8308- )5MGEU,6MGEU,MPU,MTEU

Click highlighted areas on diagram

diagram 16400 16400 16400B 16400F 16401 16403F 16442 16443 16451 16452 16462 16463 16491 16491A 16491B 16491C 16491D 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16410-41240

MPU..MS120..4H

W/O CAP

 1
16410-41240

MPU..MS120..4H

W/O CAP

 1
16400-41350

MPU..MS120..4H

W/CAP

 1
16400-41350

MPU..MS120..4H

W/CAP

 1
16400 - RADIATOR ASSY
16410-41240

MPU..MS120..4H

W/O CAP

 1
16410-41240

MPU..MS120..4H

W/O CAP

 1
16400-41350

MPU..MS120..4H

W/CAP

 1
16400-41350

MPU..MS120..4H

W/CAP

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
23322-54010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
96711-19007

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16401-63010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-54300

MPU..MS120

 1
16403-54300

MPU..MS120

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-63030

5MGEU,6MGEU,MPU..MS12#

 1
16442-63030

5MGEU,6MGEU,MPU..MS12#

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-15321

5MGEU,6MGEU,MPU..MS12#

 2
16443-15321

5MGEU,6MGEU,MPU..MS12#

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-63030

5MGEU,6MGEU,MPU..MS12#

 1
16451-63030

5MGEU,6MGEU,MPU..MS12#

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-63030

5MGEU,6MGEU,MPU..MS12#

 1
16452-63030

5MGEU,6MGEU,MPU..MS12#

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-63030

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16462-63030

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-15320

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16463-15320

5MGEU,6MGEU,MPU,MTEU..MS12#

 2

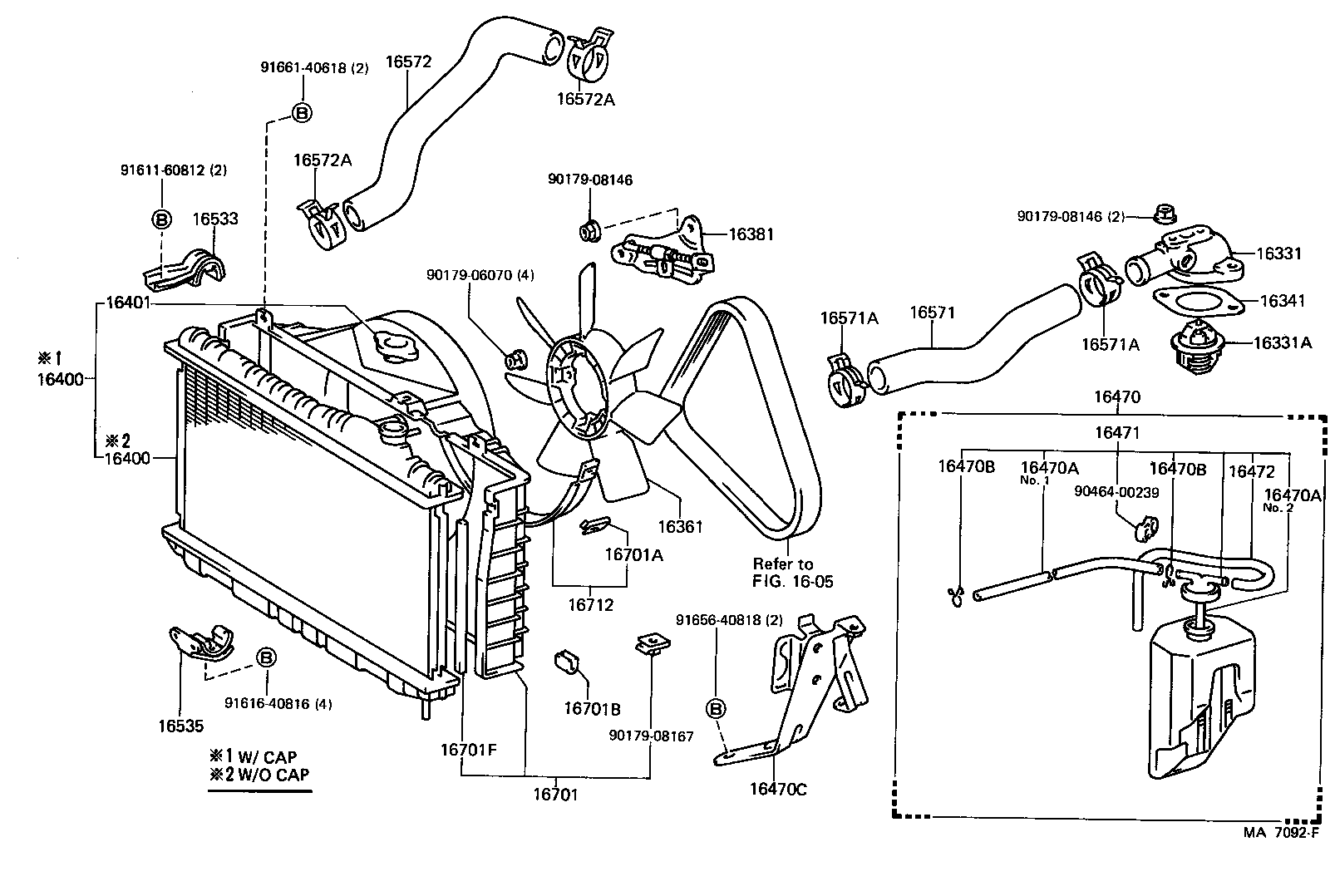

ILLUST NO. 1 OF 3(8308- )MPU,MTEU

Click highlighted areas on diagram

diagram 1605 16331 16331A 16341 16361 16381 16400 16400 16401 16470 16470A 16470A 16470B 16470B 16470C 16471 16472 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16701B 16701F 16712 9017906070 9017908146 9017908146 9017908167 9046400239 9161160812 9161640816 9165640818 9166140618
Part # Description Qty Price
16331 - OUTLET, WATER
16331-41080

MPU..MS120

 1
16331-41090

MPU..MS120

 1
16331A - THERMOSTAT
90916-03054

MPU,MTEU..MS120

*WAX 82−95

 1
90916-03055

MPU,MTEU..MS120

*WAX 88−100,ｶﾝﾚｲﾁ ｼﾖｳ

 1
16341 - GASKET, WATER OUTLET
16341-41010

MPU,MTEU..MS120

 1
16361 - FAN
16361-41090

5MGEU,6MGEU,MPU,MTEU..MS12#

7 BLADES

 1
16381 - BAR, FAN BELT ADJUSTING
16381-43010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16400 - RADIATOR ASSY
16410-41240

MPU..MS120..4H

W/O CAP

 1
16400-41350

MPU..MS120..4H

W/CAP

 1
16400 - RADIATOR ASSY
16410-41240

MPU..MS120..4H

W/O CAP

 1
16400-41350

MPU..MS120..4H

W/CAP

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-41150

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12138

5MGEU,6MGEU,MPU,MTEU..MS12#

*H,L=350

 1
90445-12078

6MGEU,MPU,MTEU..MS12#

*H,L=350,NO.1

 1
90445-12078

6MGEU,MPU..MS12#

*H,L=230,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12138

5MGEU,6MGEU,MPU,MTEU..MS12#

*H,L=350

 1
90445-12078

6MGEU,MPU,MTEU..MS12#

*H,L=350,NO.1

 1
90445-12078

6MGEU,MPU..MS12#

*H,L=230,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-41070

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-41080

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16472 - HOSE, BREATHER
85338-41150

6MGEU,MPU..MS12#

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-41010

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16535 - SUPPORT, RADIATOR, LOWER
16506-41010

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16571 - HOSE, RADIATOR, INLET
16571-41110

MPU,MTEU..MS120

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5MGEU,6MGEU,MPU,MTEU..MS12#

RADIATOR SIDE

 1
90467-37002

5MGEU,6MGEU,MPU,MTEU..MS12#

OUTLET SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5MGEU,6MGEU,MPU,MTEU..MS12#

RADIATOR SIDE

 1
90467-37002

5MGEU,6MGEU,MPU,MTEU..MS12#

OUTLET SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16572-41110

MPU,MTEU..MS120

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5MGEU,6MGEU,MPU,MTEU..MS12#

RADIATOR SIDE

 1
90467-37002

5MGEU,6MGEU,MPU,MTEU..MS12#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

5MGEU,6MGEU,MPU,MTEU..MS12#

RADIATOR SIDE

 1
90467-37002

5MGEU,6MGEU,MPU,MTEU..MS12#

WATER PUMP SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16701-41030

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16701B - CUSHION, FAN SHROUD
90541-11002

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16701F - SEAL(FOR FAN SHROUD)
16832-41010

5MGEU,6MGEU,MPU,MTEU..MS12#

 2
16712 - SHROUD, FAN, NO.2
16702-41010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
Common parts
90179-06070
90179-08146
90179-08167
90464-00239
91611-60812
91616-40816
91656-40818
91661-40618
Linked diagrams
1605

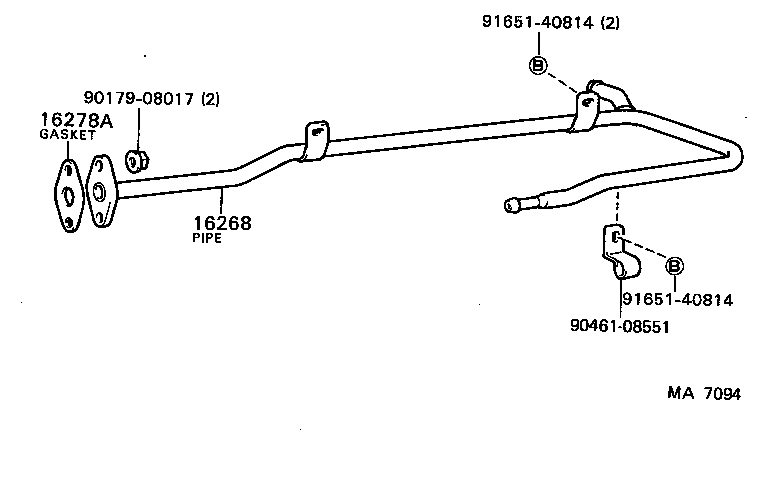

ILLUST NO. 2 OF 3(8308- )MPU

Click highlighted areas on diagram

diagram 16268 16278A 9017908017 9046108551 9165140814 9165140814
Part # Description Qty Price
16268 - PIPE, WATER BY-PASS, NO.1
16268-41150

MPU..MS120

 1
16278A - GASKET, WATER BY-PASS
16347-45010

5MGEU,6MGEU,MPU,MTEU..MS12#

 1
Common parts
90179-08017
90461-08551
91651-40814
