MS117V-SXKFSW (1979)

Toyota Crown

Production Sep 1979 - Aug 1982
Engine MJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

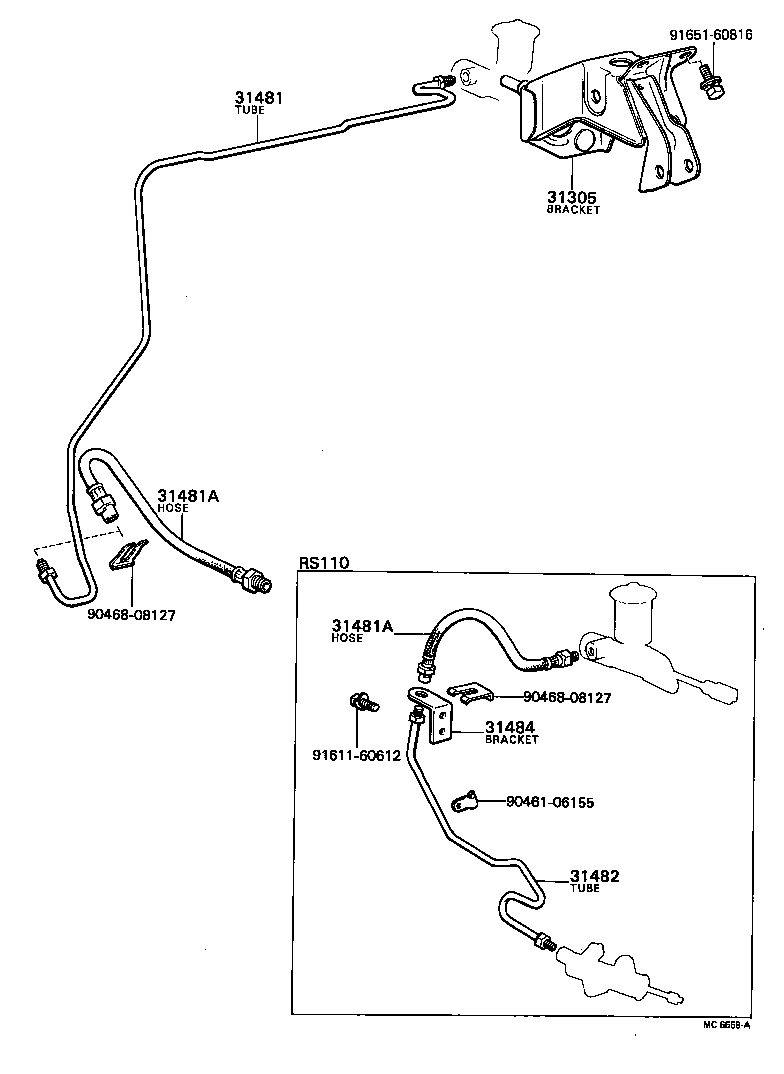

ILLUST NO. 2 OF 2(7909- )MTM

Click highlighted areas on diagram

diagram 31305 31481 31481A 31481A 31482 31484 9046106155 9046808127 9046808127 9161160612 9165160816
Part # Description Qty Price
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-30080

LS11#,MS110,117..(HT,V,WG)..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30120

GS11#,LS11#,MS11#..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-33005

GS11#,LS11#,MS11#..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-33005

GS11#,LS11#,MS11#..MTM

 1
Common parts
90461-06155
90468-08127
91611-60612
91651-60816

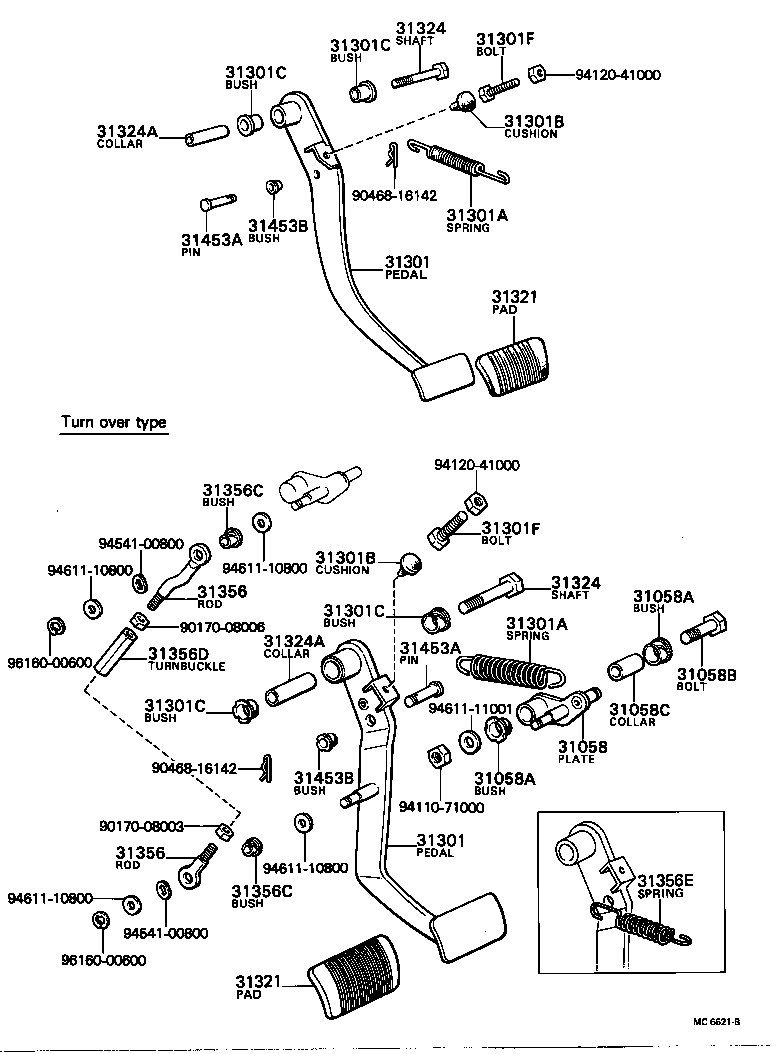

ILLUST NO. 1 OF 2(7909- )MTM

Click highlighted areas on diagram

diagram 31058 31058A 31058A 31058B 31058C 31301 31301 31301A 31301A 31301B 31301B 31301C 31301C 31301C 31301C 31301F 31301F 31321 31321 31324 31324 31324A 31324A 31356 31356 31356C 31356C 31356D 31356E 31453A 31453A 31453B 31453B 9017008003 9017008006 9046816142 9046816142 9411071000 9412041000 9412041000 9454100800 9454100800 9461110800 9461110800 9461110800 9461110800 9461111001 9616000600 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30130

LS11#,MS110,117..(HT,V,WG)..MTM

 1
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30130

LS11#,MS110,117..(HT,V,WG)..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12026

LS11#,MS110,117..MTM..(BTP,CTE,DLX,SAL,SDX,SPE,STD)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12026

LS11#,MS110,117..MTM..(BTP,CTE,DLX,SAL,SDX,SPE,STD)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LS11#,MS110,117..MTM..(BTP,CTE,DLX,SAL,SDX,SPE,STD)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LS11#,MS110,117..MTM..(BTP,CTE,DLX,SAL,SDX,SPE,STD)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GS11#,LS11#,MS11#,RS110..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GS11#,LS11#,MS11#,RS110..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GS11#,LS11#,MS11#,RS110..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GS11#,LS11#,MS11#,RS110..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

LS11#,MS110,117..MTM..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,DSL,EFI)

 1
90101-10067

LS11#,MS11#,RS110..MTM

 1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

LS11#,MS110,117..MTM..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,DSL,EFI)

 1
90101-10067

LS11#,MS11#,RS110..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-30040

GS11#,LS11#,MS11#,RS110..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-30040

GS11#,LS11#,MS11#,RS110..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

GS11#,LS11#,MS11#,RS110..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

GS11#,LS11#,MS11#,RS110..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GS11#,LS11#,MS11#,RS110..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GS11#,LS11#,MS11#,RS110..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

MS11#..MTM

長さ=29.5

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

MS11#..MTM

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08010

GS11#,LS11#,MS11#,RS110..MTM

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08010

GS11#,LS11#,MS11#,RS110..MTM

 1
Common parts
90170-08003
90170-08006
90468-16142
94110-71000
94120-41000
94541-00800
94611-10800
94611-11001
96160-00600
