MS117V-SXKDSW (1979)
Toyota Crown
(7909- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-45072 |
MJ..MS117 12V 55A |
1 | ||
| 27020-54012 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
MEU,MJ,5MEU,MTEU,MU..MS11# 12V 55A,60A |
1 | ||
| 27039-45110 |
MJ..MS117 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
L..LS110,117 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
MEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 27412-54040 |
L..LS110,117 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45071 |
MJ..MS117 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
MEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 90099-19251 |
L..LS110,117 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
MEU,MJ,5MEU,5RU,MU..MS11#,RS110 12V 50A,55A,60A |
1 | ||
| 90099-10120 |
L..LS110,117 12V 55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
L..LS110,117 12V 55A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
L..LS110,117 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54011 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27330-45070 |
MJ,5RU..MS117,RS110 12V 55A,60A |
1 | ||
| 27330-54060 |
L..LS110,117 12V 55A,IC REGULATOR |
1 | ||
| 27330-45070 |
MJ..MS117 12V 55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
L..LS110,117 12V 55A |
1 | ||
| 27350C - FELT (FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 90099-02181 |
L..LS110,117 12V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
MEU,MJ,5M#,5RU,MTEU,MU..MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34021 |
MJ,5RU..MS117,RS110 12V 55A |
1 | ||
| 27353-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27353-34021 |
MJ..MS117 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27356-34021 |
MJ,5RU..MS117,RS110 12V 55A |
1 | ||
| 27356-34021 |
MJ..MS117 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
MEU,MJ,5MEU,5RU,MU..MS11#,RS110 12V 50A,55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
MEU,MJ,5MEU,MU..MS11# 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
MJ..MS117 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54020 |
L..LS110,117 12V 55A |
1 | ||
| 27411-41071 |
MEU,MJ,5M#,MTEU,MU..MS11# 12V 55A,60A,65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
MJ..MS117 12V 55A |
1 | ||
| 27441-34030 |
MJ,5RU..MS117,RS110 12V 50A,55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90201-10283 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

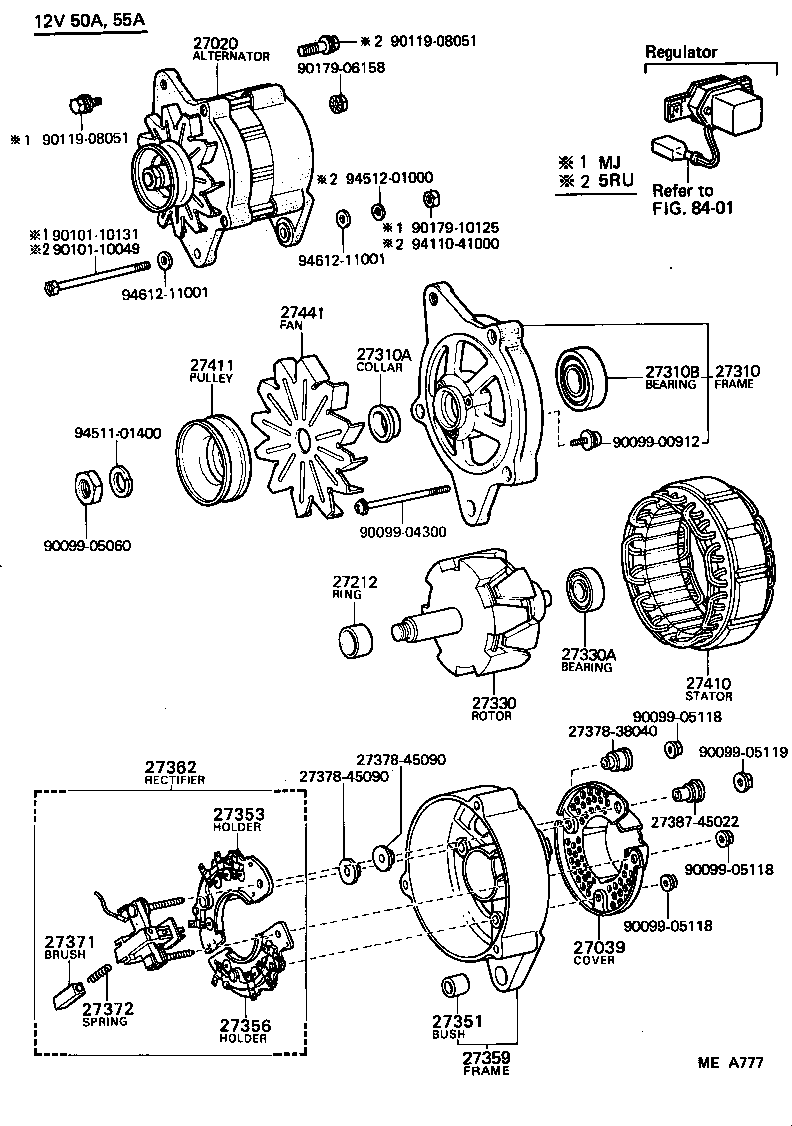

(7909-8108)5RU ; (7909-8208)MJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-45072 |
MJ..MS117 12V 55A |
1 | ||
| 27020-54012 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
MEU,MJ,5MEU,MTEU,MU..MS11# 12V 55A,60A |
1 | ||
| 27039-45110 |
MJ..MS117 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
MEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 27412-54040 |
L..LS110,117 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45071 |
MJ..MS117 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
MEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 90099-19251 |
L..LS110,117 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
MEU,MJ,5MEU,5RU,MU..MS11#,RS110 12V 50A,55A,60A |
1 | ||
| 90099-10120 |
L..LS110,117 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54011 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27330-45070 |
MJ,5RU..MS117,RS110 12V 55A,60A |
1 | ||
| 27330-54060 |
L..LS110,117 12V 55A,IC REGULATOR |
1 | ||
| 27330-45070 |
MJ..MS117 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
MEU,MJ,5MEU,MTEU,MU..MS11# 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
MEU,MJ,5M#,5RU,MTEU,MU..MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34021 |
MJ,5RU..MS117,RS110 12V 55A |
1 | ||
| 27353-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27353-34021 |
MJ..MS117 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27356-34021 |
MJ,5RU..MS117,RS110 12V 55A |
1 | ||
| 27356-34021 |
MJ..MS117 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
MJ,5RU..MS117,RS110 12V 50A,55A |
1 | ||
| 27359-24100 |
MJ..MS117 12V 55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-34020 |
MJ,5RU..MS117,RS110 12V 55A |
1 | ||
| 27362-34021 |
MJ..MS117 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
MEU,MJ,5MEU,5RU,MU..MS11#,RS110 12V 50A,55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
MEU,MJ,5MEU,MU..MS11# 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
MJ..MS117 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54020 |
L..LS110,117 12V 55A |
1 | ||
| 27411-41071 |
MEU,MJ,5M#,MTEU,MU..MS11# 12V 55A,60A,65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
MJ..MS117 12V 55A |
1 | ||
| 27441-34030 |
MJ,5RU..MS117,RS110 12V 50A,55A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90101-10131 | ||||
| 90119-08051 | ||||
| 90179-06158 | ||||
| 90179-10125 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 8401 | ||||

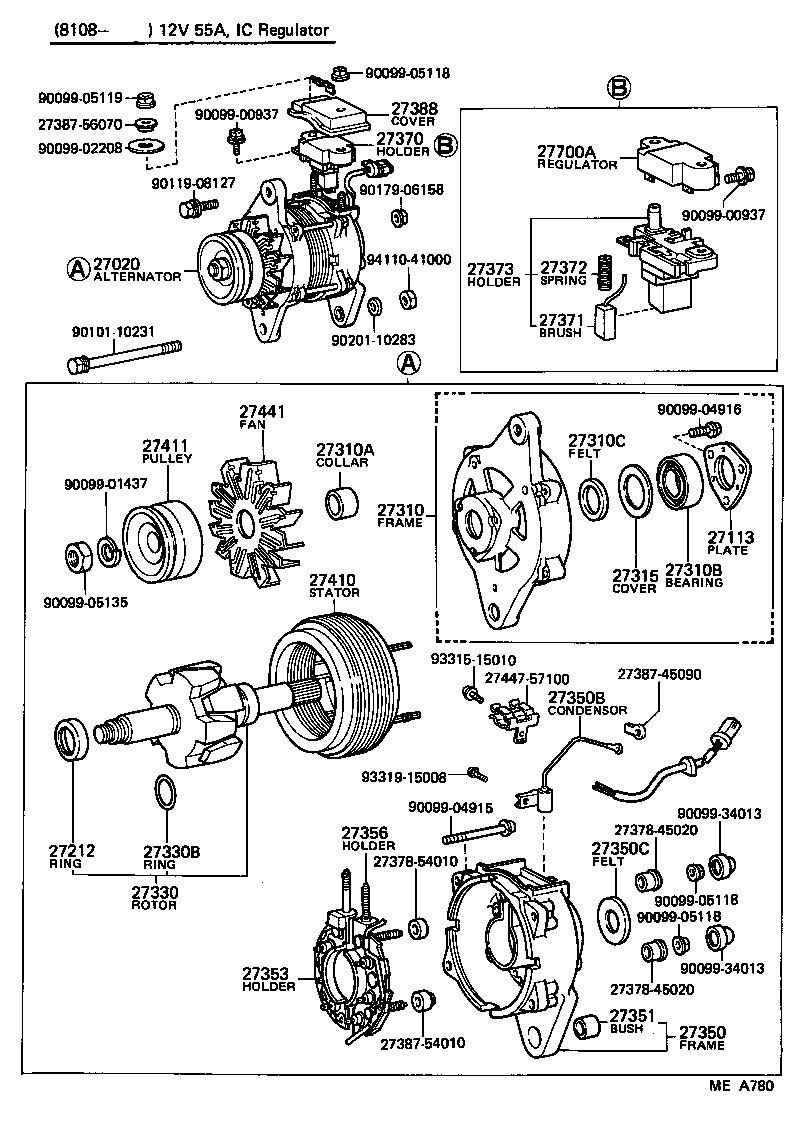

(8108- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-45072 |
MJ..MS117 12V 55A |
1 | ||
| 27020-54012 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
L..LS110,117 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
MEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 27412-54040 |
L..LS110,117 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-45071 |
MJ..MS117 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
MEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 90099-19251 |
L..LS110,117 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
MEU,MJ,5MEU,5RU,MU..MS11#,RS110 12V 50A,55A,60A |
1 | ||
| 90099-10120 |
L..LS110,117 12V 55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
L..LS110,117 12V 55A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
L..LS110,117 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54011 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27330-45070 |
MJ,5RU..MS117,RS110 12V 55A,60A |
1 | ||
| 27330-54060 |
L..LS110,117 12V 55A,IC REGULATOR |
1 | ||
| 27330-45070 |
MJ..MS117 12V 55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
L..LS110,117 12V 55A |
1 | ||
| 27350C - FELT (FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 90099-02181 |
L..LS110,117 12V 55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
MEU,MJ,5M#,5RU,MTEU,MU..MS11#,RS110 12V 50A,55A,60A,65A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34021 |
MJ,5RU..MS117,RS110 12V 55A |
1 | ||
| 27353-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27353-34021 |
MJ..MS117 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27356-34021 |
MJ,5RU..MS117,RS110 12V 55A |
1 | ||
| 27356-34021 |
MJ..MS117 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L..LS110,117 12V 55A,STANDARD REGULATOR |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
MEU,MJ,5MEU,5RU,MU..MS11#,RS110 12V 50A,55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
MEU,MJ,5MEU,MU..MS11# 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
MJ..MS117 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54020 |
L..LS110,117 12V 55A |
1 | ||
| 27411-41071 |
MEU,MJ,5M#,MTEU,MU..MS11# 12V 55A,60A,65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
MJ..MS117 12V 55A |
1 | ||
| 27441-34030 |
MJ,5RU..MS117,RS110 12V 50A,55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27447-57100 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-34013 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 93315-15010 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
