MS112-STNQF (1981)
Toyota Crown
Production
Aug 1981
-
Jul 1983
Engine
5MGEU
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )5MGEU

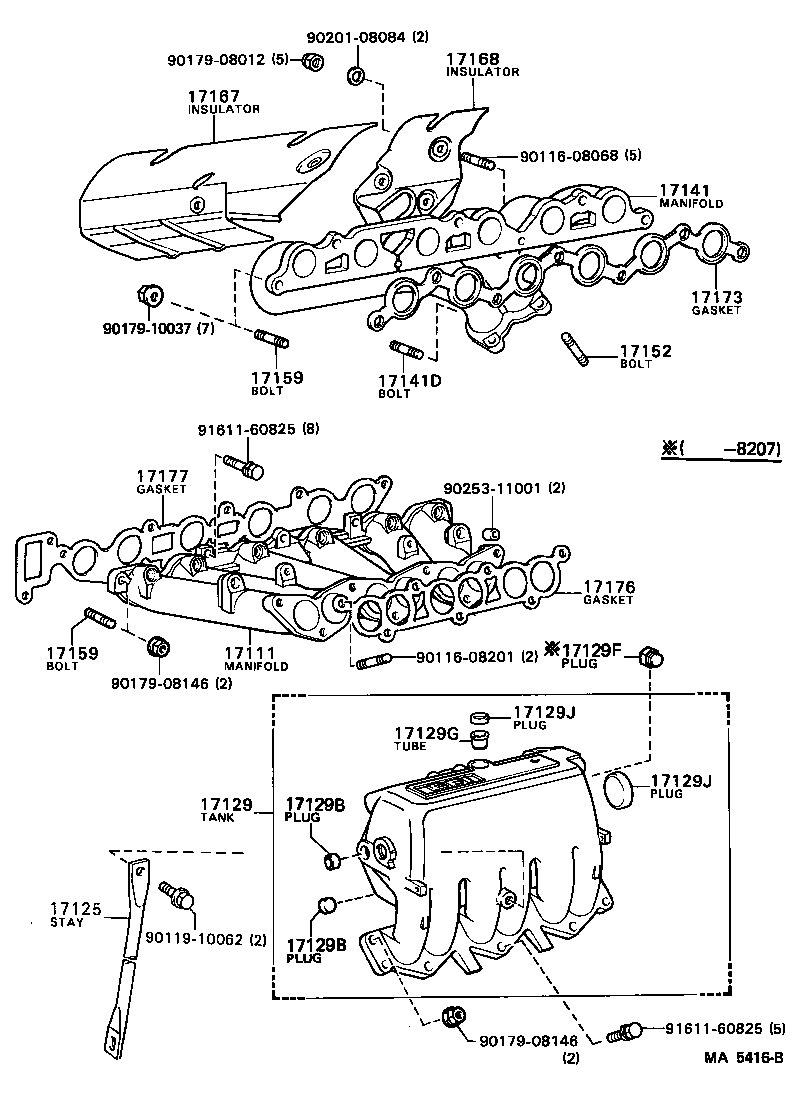

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-43010 |
5MGEU..MS112 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-43011 |
5MGEU..MS112 |
1 | ||
| 17125-43010 |
5MGEU..MS112 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-43020 |
5MGEU..MS112 |
1 | ||
| 17129B - PLUG | ||||
| 96411-11600 |
5MGEU..MS112 |
2 | ||
| 17129B - PLUG | ||||
| 96411-11600 |
5MGEU..MS112 |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90072-34107 |
5M#..MS112 |
1 | ||
| 17129G - TUBE, EGR INLET | ||||
| 25619-43010 |
5MGEU..MS112 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-13000 |
5MGEU..MS112 OD=30 |
1 | ||
| 96411-11800 |
5MGEU..MS112 OD=18 |
1 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-13000 |
5MGEU..MS112 OD=30 |
1 | ||
| 96411-11800 |
5MGEU..MS112 OD=18 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-43010 |
5MGEU..MS112 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
5MGEU..MS112 |
2 | ||
| 90116-08168 |
5M#,MTEU,MU..MS11# L=28,S=14&8 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
5MGEU..MS112 EXHAUST MANIFOLD |
7 | ||
| 90116-08201 |
5MGEU..MS112 INTAKE MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
5MGEU..MS112 EXHAUST MANIFOLD |
7 | ||
| 90116-08201 |
5MGEU..MS112 INTAKE MANIFOLD |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-43010 |
5MGEU..MS112 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-43010 |
5MGEU..MS112 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-43010 |
5MGEU..MS112 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-43010 |
5MGEU..MS112 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-43010 |
5MGEU..MS112 |
1 | ||
| Common parts | ||||
| 90116-08068 | ||||
| 90116-08201 | ||||
| 90119-10062 | ||||
| 90179-08012 | ||||
| 90179-08146 | ||||
| 90179-10037 | ||||
| 90201-08084 | ||||
| 90253-11001 | ||||
| 91611-60825 | ||||
