MS112-STMQE (1979)
Toyota Crown
ILLUST NO. 1 OF 2(7909- )LS117..DLX ; (7909- )GS11#,LS110,111,MS11#,RS110..4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-30031 |
LS110,MS110,112..HT..MTM WOODY |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002004 |
LS110,MS11#..(4F,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 46217-1002005 |
LS117..DLX;LS110,MS11#..4F,5F GREIGE,BEIGE,TRIM4# |
1 | ||
| 46217-1002002 |
MS110,112..5F..(ROY,SAL) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-30010 |
LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-30010 |
LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30130 |
MS110,112..5F..(ROY,SAL) |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-20010 |
GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F |
1 | ||
| 46357 - BRACKET, LEVER SUPPORT | ||||
| 46359-30080 |
LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30220 |
LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08028 |
GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F LEVER X CABLE |
1 | ||
| 90240-08021 |
LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F HANDLE X CABLE |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08028 |
GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F LEVER X CABLE |
1 | ||
| 90240-08021 |
LS117..DLX;GS11#,LS110,111,MS11#,RS110..4F,5F HANDLE X CABLE |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30210 |
MS110,112..(4FC,4HC,5F)..(ROY,SAL) |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30071 |
RS110..BTP,DLX;GS11#,LS11#,MS11# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30040 |
LS110,MS110,112,RS110 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
GS110,LS11#,MS11#,RS110 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-31011 |
GS11#,MS11#..CBR,EFI,TBO,TWC |
1 | ||
| 46479 - LEVER, CABLE GUIDE SAPPORT, NO.2 | ||||
| 46479-30010 |
LS11#,MS11#..CBR,DSL,EFI,TBO |
1 | ||
| 46479-30010 |
LS11#,MS11# |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90109-08102 | ||||
| 90119-08146 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90461-12019 | ||||
| 90468-08001 | ||||
| 90468-12070 | ||||
| 91611-40614 | ||||
| 91611-40816 | ||||
| 91615-40616 | ||||
| 91615-60614 | ||||
| 91656-40822 | ||||
| 94110-40600 | ||||
| 94611-10600 | ||||
| 95381-02020 | ||||

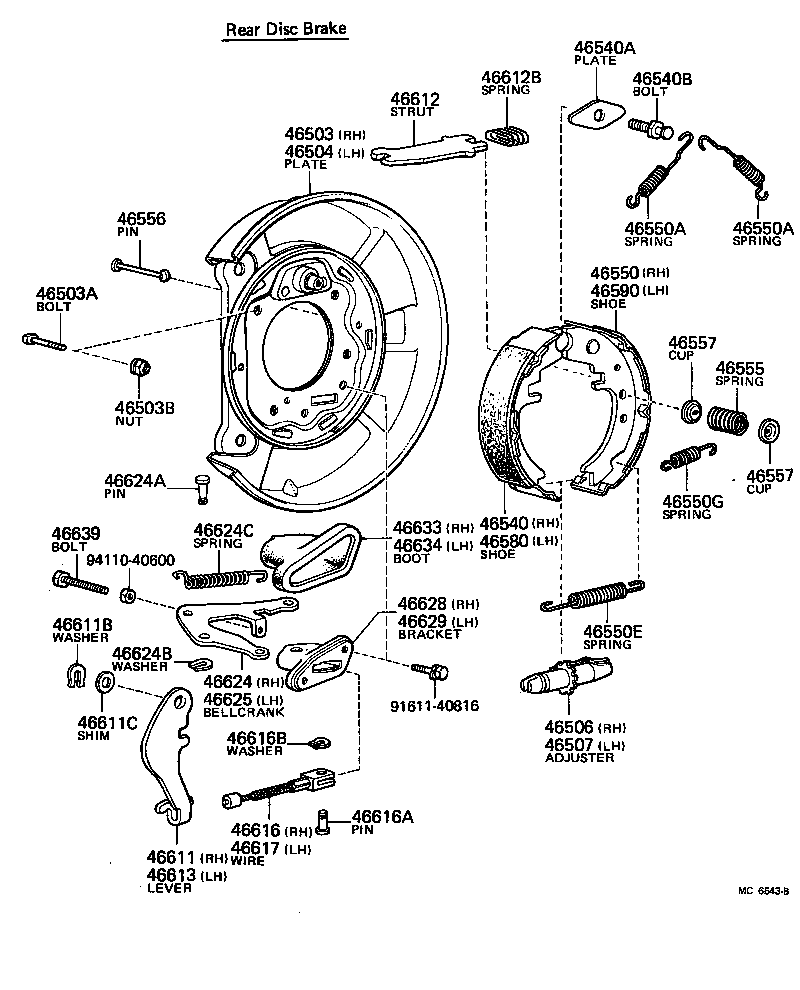

ILLUST NO. 2 OF 2(7909- )ROY,SAL ; (7909- )SPE..TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30020 |
MS110..SPE..TBO;MS110,112..ROY,SAL |
1 | ||
| 46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 42184-30030 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
8 | ||
| 46503B - NUT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 90179-10030 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
8 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30020 |
MS110..SPE..TBO;MS110,112..ROY,SAL |
1 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 47405-22010 |
MS110,112..ROY,SAL |
1 | ||
| 46507 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 47406-22010 |
MS110,112..ROY,SAL |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-30020 |
MS110,112..ROY,SAL |
1 | ||
| 46540A - PLATE, PARKING BRAKE SHOE GUIDE | ||||
| 47456-22010 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46540B - BOLT, PARKING BRAKE SHOE GUIDE PLATE SET | ||||
| 47459-30010 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-30020 |
MS110,112..ROY,SAL |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20031 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20031 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14033 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12029 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16050 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
4 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-30030 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
8 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-30030 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
8 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46580-30020 |
MS110,112..ROY,SAL |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46550-30020 |
MS110,112..ROY,SAL |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 47611-30050 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46611B - WASHER, C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46611C - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09185 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL T=0.6 |
2 | ||
| 90564-09186 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL T=0.9 |
2 | ||
| 90564-09184 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL T=0.3 |
2 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 47613-30040 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90501-12043 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46613 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-30050 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-30050 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46616A - PIN, PARKING BRAKE WIRE | ||||
| 90249-07074 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46616B - WASHER, C(FOR PARKING BRAKE WIRE PIN) | ||||
| 90213-04008 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46617 - WIRE, PARKING BRAKE, LH | ||||
| 47616-30050 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46624 - BELLCRANK, PARKING BRAKE, RH | ||||
| 47603-30010 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46624A - PIN, PARKING BRAKE BELLCRANK | ||||
| 90249-08075 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46624B - WASHER, C(FOR PARKING BRAKE BELLCRANK PIN) | ||||
| 90213-06013 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| 46624C - SPRING, TENSION(FOR PARKING BRAKE BELLCRANK RETURN) | ||||
| 90506-20001 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL RH |
1 | ||
| 90506-20002 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL LH |
1 | ||
| 46625 - BELLCRANK, PARKING BRAKE, LH | ||||
| 47604-30010 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46628 - BRACKET, BELLCRANK, RH | ||||
| 47628-30050 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46629 - BRACKET, BELLCRANK, LH | ||||
| 47629-30040 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46633 - BOOT, PARKING BRAKE BELLCRANK, RH | ||||
| 47633-30040 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46634 - BOOT, PARKING BRAKE BELLCRANK, LH | ||||
| 47634-30030 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 46639 - BOLT, BELLCRANK STOPPER | ||||
| 47639-30020 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
2 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-40600 | ||||
