MS112-STMGE (1979)
Toyota Crown

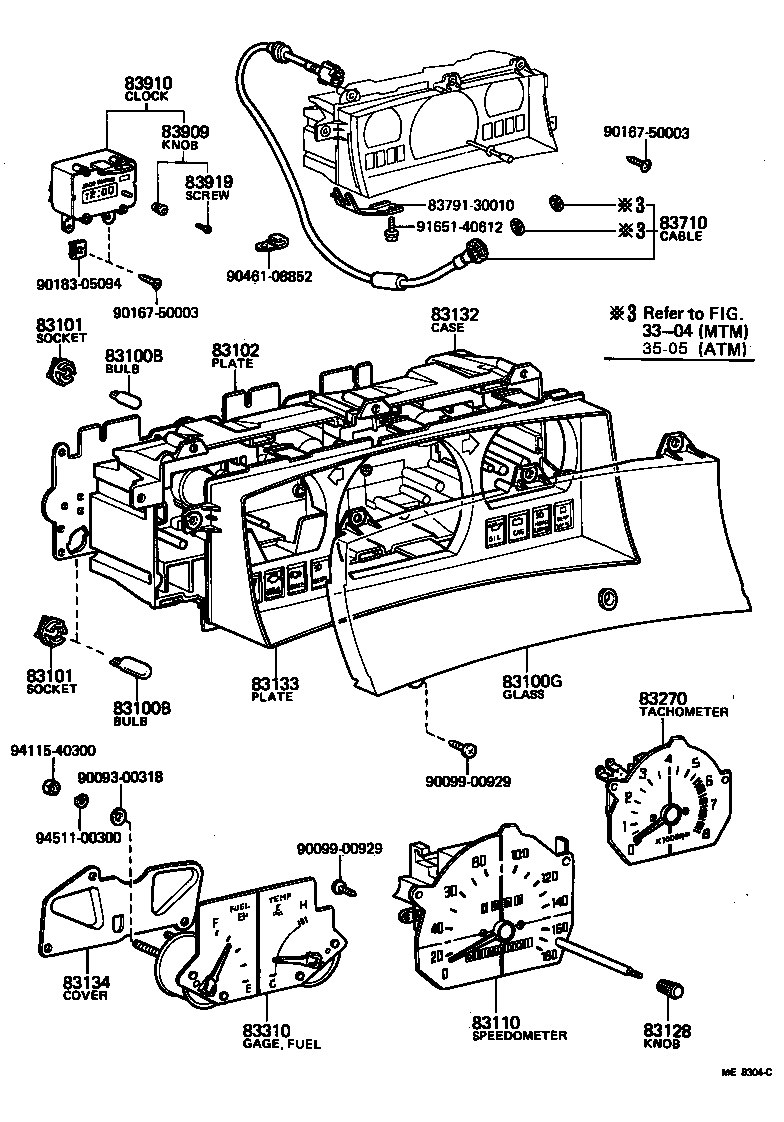

ILLUST NO. 1 OF 1(7909-8108)4DH..DLX ; (7909-8108)MS110,112..SED,WG..CBR,EFI,LPG ; (7909-8108)LS11#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
2 | ||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 99132-12034 |
LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
2 | ||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 99132-12034 |
LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30550 |
GS110,MS112..HT |
1 | ||
| 83138-30860 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
2 | ||
| 83101-14030 |
LS11#,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
2 | ||
| 83101-14030 |
LS11#,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30870 |
MS110,112..HT |
1 | ||
| 83247-30090 |
GS110,MS112..HT..EFI |
1 | ||
| 83247-30871 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-30640 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 83110-30810 |
GS110,MS112..HT..(ROY,SAL) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30870 |
MS110,112..HT |
1 | ||
| 83132-30871 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83132-30050 |
GS110,MS112..HT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30880 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83133-30050 |
LS111;GS110,LS110,MS112..HT |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-30810 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30810 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83243-30870 |
LS111;GS110,LS110,MS112..HT |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30431 |
LS11#,MS11#..4F,5F L=1330 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-30250 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30250 |
LS110,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83910-30240 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,STD |
1 | ||
| 83910-30300 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-30250 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| Common parts | ||||
| 83153-30800 | ||||
| 83791-30010 | ||||
| 90093-00318 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00934 | ||||
| 90099-00935 | ||||
| 90167-50003 | ||||
| 90183-05094 | ||||
| 90461-08852 | ||||
| 91651-40612 | ||||
| 94115-40300 | ||||
| 94511-00300 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
ILLUST NO. 1 OF 1(7909-8108)MS110,112..HT ; (7909- )TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
2 | ||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 99132-12034 |
LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
2 | ||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 99132-12034 |
LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30550 |
GS110,MS112..HT |
1 | ||
| 83138-30860 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
2 | ||
| 83101-14030 |
LS11#,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
2 | ||
| 83101-14030 |
LS11#,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30870 |
MS110,112..HT |
1 | ||
| 83247-30090 |
GS110,MS112..HT..EFI |
1 | ||
| 83247-30871 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-30640 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 83110-30810 |
GS110,MS112..HT..(ROY,SAL) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30870 |
MS110,112..HT |
1 | ||
| 83132-30871 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83132-30050 |
GS110,MS112..HT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30880 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83133-30050 |
LS111;GS110,LS110,MS112..HT |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-30810 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-30050 |
GS110,MS112..HT..EFI |
1 | ||
| 83242-30020 |
MS110,112..HT..(CBR,EFI) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30810 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83243-30870 |
LS111;GS110,LS110,MS112..HT |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30431 |
LS11#,MS11#..4F,5F L=1330 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-30250 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30250 |
LS110,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83910-30240 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,STD |
1 | ||
| 83910-30300 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-30250 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| Common parts | ||||
| 83791-30010 | ||||
| 90093-00318 | ||||
| 90099-00929 | ||||
| 90167-50003 | ||||
| 90183-05094 | ||||
| 90461-08852 | ||||
| 91651-40612 | ||||
| 94115-40300 | ||||
| 94511-00300 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
ILLUST NO. 1 OF 2(8108- )LS111 ; (8108- )SED..TBO ; (8108-)MS110..SPE ; (8108- )GS110,L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
2 | ||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 99132-12034 |
LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
2 | ||
| 90981-11018 |
GS11#,LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 99132-12034 |
GS11#,LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
10 | ||
| 99132-12034 |
LS11#,MS11#,RS110 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30550 |
GS110,MS112..HT |
1 | ||
| 83138-30860 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
2 | ||
| 83101-14030 |
LS11#,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
2 | ||
| 83101-14030 |
LS11#,MS11#,RS110 12V 3.4W |
12 | ||
| 83101-14030 |
GS11#,LS11#,MS11#,RS110 12V 3.4W |
10 | ||
| 83101-14040 |
RS110..BTP,DLX,STD;GS11#,LS110,117,MS11# 12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30870 |
MS110,112..HT |
1 | ||
| 83247-30090 |
GS110,MS112..HT..EFI |
1 | ||
| 83247-30871 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-30640 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 83110-30810 |
GS110,MS112..HT..(ROY,SAL) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30870 |
MS110,112..HT |
1 | ||
| 83132-30871 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83132-30050 |
GS110,MS112..HT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30880 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83133-30050 |
LS111;GS110,LS110,MS112..HT |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-30050 |
GS110,MS112..HT..EFI |
1 | ||
| 83242-30020 |
MS110,112..HT..(CBR,EFI) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30810 |
MS110,112..HT;MS110..SED..TBO |
1 | ||
| 83243-30870 |
LS111;GS110,LS110,MS112..HT |
1 | ||
| Common parts | ||||
| 90099-00888 | ||||
| 90099-00929 | ||||
| 90099-00935 | ||||
| 90167-50003 | ||||
| 93315-14025 | ||||

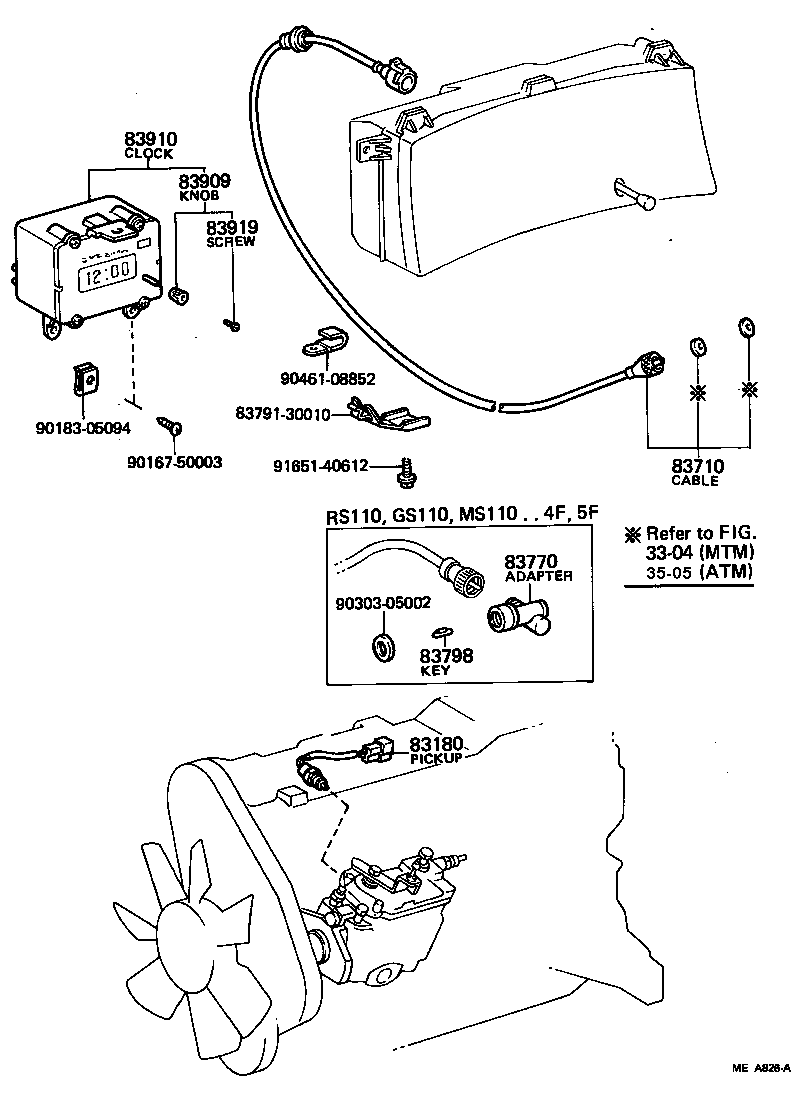

ILLUST NO. 2 OF 2(8108- )BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30431 |
LS11#,MS11#..4F,5F L=1330 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-30250 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30250 |
LS110,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83910-30240 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,STD |
1 | ||
| 83910-30300 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-30250 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE DIGITAL |
1 | ||
| Common parts | ||||
| 83791-30010 | ||||
| 90167-50003 | ||||
| 90183-05094 | ||||
| 90303-05002 | ||||
| 90461-08852 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
