MS112-STHQF (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 5MGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )5MGEU

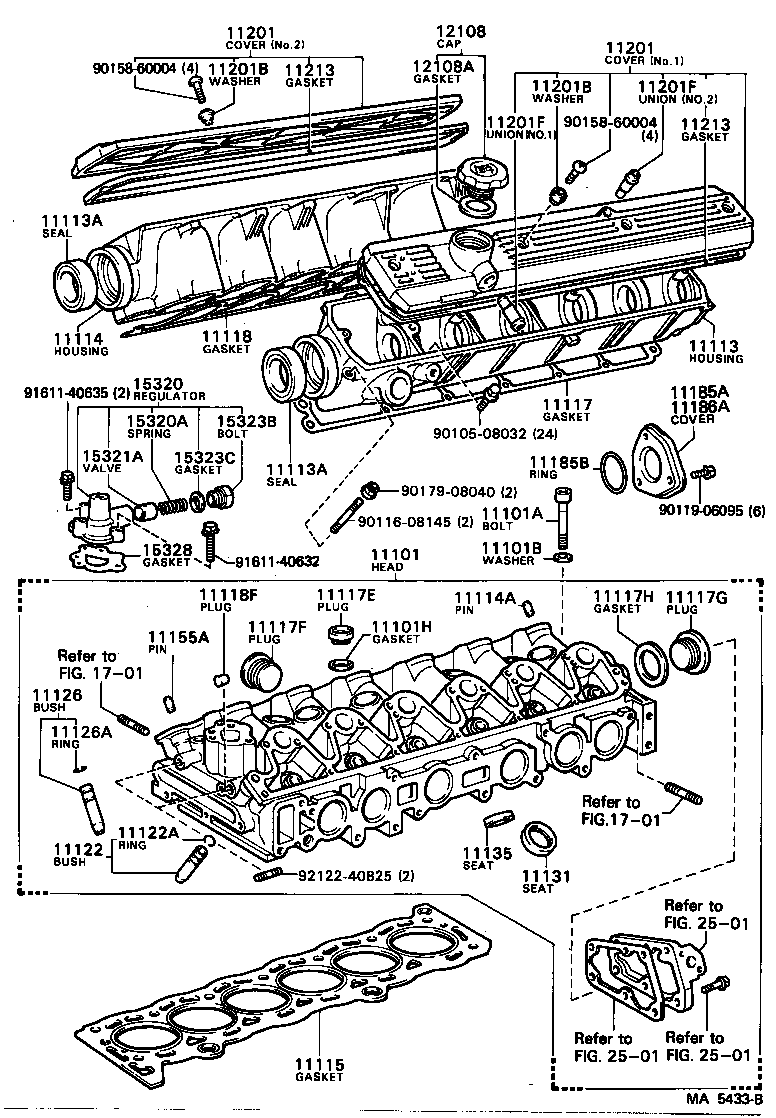

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101H 11113 11113A 11113A 11114 11114A 11115 11117 11117E 11117F 11117G 11117H 11118 11118F 11122 11122A 11126 11126A 11131 11135 11155A 11185A 11185B 11186A 11201 11201 11201B 11201B 11201F 11201F 11213 11213 12108 12108A 15320 15320A 15321A 15323B 15323C 15328 1701 1701 2501 2501 2501 9010508032 9011608145 9011906095 9015860004 9015860004 9017908040 9161140632 9161140635 9212240825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49295

5MGEU..MS112

 1
11101-49296

5MGEU..MS112

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90110-12001

5MGEU..MS112

*12-1.25PX96-22

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12027

5MGEU..MS112

 14
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-20004

5MGEU..MS112

 3
11113 - HOUSING, CAMSHAFT, NO.1
11113-43010

5MGEU..MS112

 1
11113A - SEAL, OIL(FOR CAMSHAFT HOUSING)
90311-38013

5MGEU..MS112

 2
11113A - SEAL, OIL(FOR CAMSHAFT HOUSING)
90311-38013

5MGEU..MS112

 2
11114 - HOUSING, CAMSHAFT, NO.2
11114-43010

5MGEU..MS112

 1
11114A - PIN, STRAIGHT
90250-08054

5MGEU..MS112

長さ=23,外径=8

 2
11115 - GASKET, CYLINDER HEAD
11115-43030

5MGEU..MS112

 1
11117 - GASKET, CAMSHAFT HOUSING, NO.1
11117-43010

5MGEU..MS112

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20002

5MGEU..MS112

 3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-32031

5MGEU..MS112

 3
11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3
90341-36001

5MGEU..MS112

 1
11117H - GASKET(FOR WATER HOLE)
90430-36001

MEU,MJ,5M#,MTEU,MU..MS11#

 1
11118 - GASKET, CAMSHAFT HOUSING, NO.2
11118-43010

5MGEU..MS112

 1
11118F - PLUG, TAPER, NO.1
90072-33614

5MGEU..MS112

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-43010

5MGEU..MS112

O/S 0.05,O/S 0.05

 6
11122-43010

5MGEU..MS112

STD,STD

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

MEU,MJ,5M#,MTEU,MU..MS11#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-43010

5MGEU..MS112

STD,STD

 6
11123-43010

5MGEU..MS112

O/S 0.05,O/S 0.05

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

MEU,MJ,5M#,MTEU,MU..MS11#

 6
11131 - SEAT, INTAKE VALVE
11131-43020

5MGEU..MS112

STD,STD

 6
11132-43020

5MGEU..MS112

O/S 0.03,O/S 0.03

 6
11135 - SEAT, EXHAUST VALVE
11136-43010

5MGEU..MS112

O/S 0.03,O/S 0.03

 6
11135-43010

5MGEU..MS112

STD,STD

 6
11155A - PIN, RING W/HEAD
90253-10003

5MGEU..MS112

 2
11185A - COVER, CAMSHAFT REAR HOUSING, NO.1
11185-43010

5MGEU..MS112

 1
11185B - RING, O
90301-56001

5MGEU..MS112

 2
11186A - COVER, CAMSHAFT REAR HOUSING, NO.2
11185-43010

5MGEU..MS112

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-49195

5MGEU..MS112

NO.1

 1
11212-49015

5MGEU..MS112

NO.2

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-49195

5MGEU..MS112

NO.1

 1
11212-49015

5MGEU..MS112

NO.2

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06003

5MGEU..MS112

 8
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06003

5MGEU..MS112

 8
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90406-14002

5MGEU..MS112

NO.2

 1
17361-41010

5MGEU..MS112

NO.1

 1
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90406-14002

5MGEU..MS112

NO.2

 1
17361-41010

5MGEU..MS112

NO.1

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-43020

5MGEU..MS112

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-43020

5MGEU..MS112

 2
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

5M#,MTEU,MU..MS11#

 1
12180-13010

5M#,MTEU,MU..MS11#

 1
12180-13010

MEU,MJ,5M#,MTEU,MU..MS11#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

MEU,MJ,5M#,MTEU,MU..MS11#

 1
15320 - REGULATOR ASSY, OIL PRESSURE
15320-43010

5MGEU..MS112

 1
15320A - SPRING, OIL PRESSURE REGULATOR VALVE
15132-43010

5MGEU..MS112

 1
15321A - VALVE, OIL PRESSURE REGULATOR
15131-38030

5MGEU..MS112

 1
15323B - BOLT, OIL PRESSURE REGULATOR
15133-20010

5MGEU..MS112

 1
15323C - GASKET, OIL PRESSURE REGULATOR BOLT
15134-20010

5MGEU..MS112

 1
15328 - GASKET, OIL PRESSURE REGULATOR
15328-43010

5MGEU..MS112

 1
Common parts
90105-08032
90116-08145
90119-06095
90158-60004
90179-08040
91611-40632
91611-40635
92122-40825
Linked diagrams
1701
2501
