MS112-STHQE (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

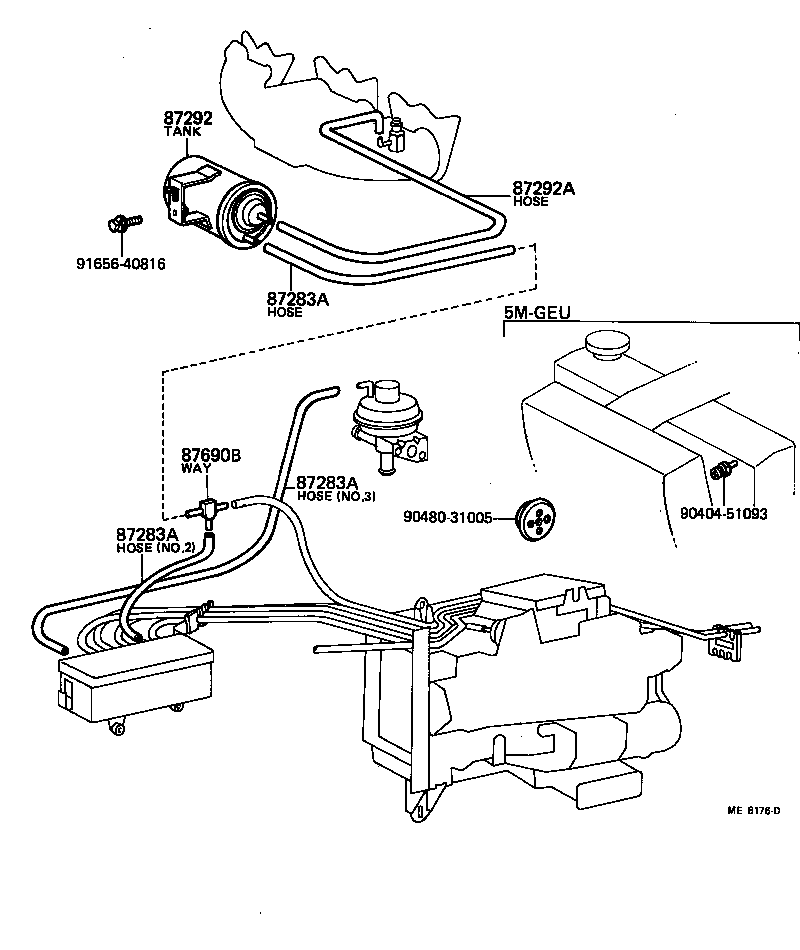

ILLUST NO. 1 OF 2(7909- )ROY

Click highlighted areas on diagram

diagram 87283A 87283A 87283A 87292 87292A 87690B 9040451093 9048031005 9165640816
Part # Description Qty Price
87283A - HOSE, NO.1
90445-06004

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
90445-06003

MS112..ROY

NO.2,L=270

 1
90445-06032

MS112..ROY

NO.2,L=270

 1
90445-06035

MS112..ROY

NO.3,L=430

 1
90445-06036

GS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
90445-06008

MS112..ROY

NO.3,L=430

 1
87283A - HOSE, NO.1
90445-06004

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
90445-06003

MS112..ROY

NO.2,L=270

 1
90445-06032

MS112..ROY

NO.2,L=270

 1
90445-06035

MS112..ROY

NO.3,L=430

 1
90445-06036

GS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
90445-06008

MS112..ROY

NO.3,L=430

 1
87283A - HOSE, NO.1
90445-06004

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
90445-06003

MS112..ROY

NO.2,L=270

 1
90445-06032

MS112..ROY

NO.2,L=270

 1
90445-06035

MS112..ROY

NO.3,L=430

 1
90445-06036

GS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
90445-06008

MS112..ROY

NO.3,L=430

 1
87292 - TANK, VACUUM
87292-30280

GS110,MS110,112..ROY,SAL,SDX,SPE

 1
87292A - HOSE, VACUUM TANK
90445-06038

MS11#

L=700

 1
90445-06001

MS11#

L=700

 1
90445-06001

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=700

 1
87690B - WAY, 3
90413-03001

GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)

W/*AAC OR *MPAAC

 1
Common parts
90404-51093
90480-31005
91656-40816

ILLUST NO. 2 OF 2(7909- )EFI,TBO

Click highlighted areas on diagram

diagram 88031A 88031A 88031A 88645B 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691D 88691D 88691D 9033903005 9046400082 9046400139 9046400139 9338518014 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MS110,112..EFI,TBO

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MS110,112..EFI,TBO

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MS110,112..EFI,TBO

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS110,112..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS110,112..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS110,112..EFI

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-22010

MS110,112..EFI

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-22010

MS110,112..EFI

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-22010

MS110,112..EFI

 1
Common parts
90339-03005
90464-00082
90464-00139
93385-18014
96132-30600
