MS112-STHQE (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)ROY,SAL..EFI ; (8108- )MS112

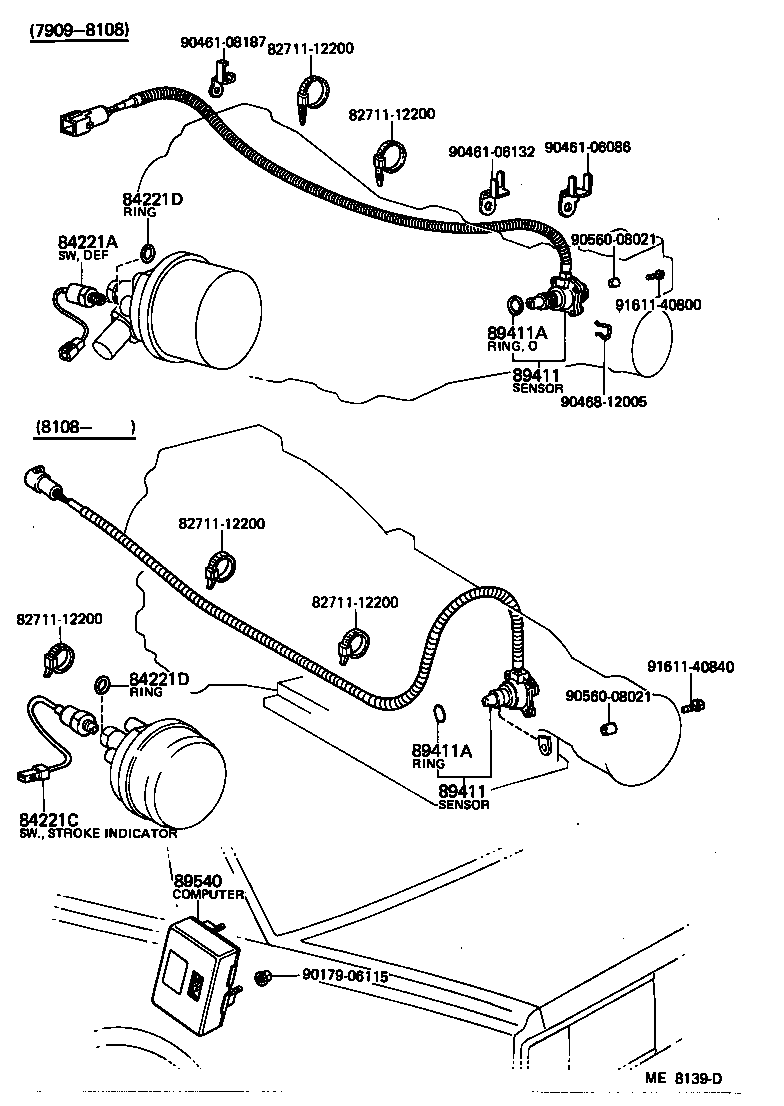

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271112200 8271112200 8271112200 84221A 84221C 84221D 84221D 89411 89411 89411A 89411A 89540 9017906115 9046106086 9046106132 9046108187 9046812005 9056008021 9056008021 9161140800 9161140840
Part # Description Qty Price
84221A - SWITCH ASSY, DIFFERENTIAL VALVE (FOR ESC)
84220-12050

MS110,112..(ROY,SAL)..EFI

 1
84221C - SWITCH, STOROKE INDICATOR (FOR ESC)
84221-24010

MS112

 1
84221D - RING, O (FOR ESC STROKE INDICATOR SWITCH)
96710-01010

MS112

 1
96710-01010

MS110,112..(ROY,SAL)..EFI

 1
84221D - RING, O (FOR ESC STROKE INDICATOR SWITCH)
96710-01010

MS112

 1
96710-01010

MS110,112..(ROY,SAL)..EFI

 1
89411 - SENSOR, SPEED
89411-30070

MS110,112..ATM..(ROY,SAL)..EFI

 1
89411-24010

MS112

 1
89411 - SENSOR, SPEED
89411-30070

MS110,112..ATM..(ROY,SAL)..EFI

 1
89411-24010

MS112

 1
89411A - RING, O (FOR SPEED SENSOR)
90301-18018

MS110,112..(ROY,SAL)..EFI

 1
90301-18018

MS112

 1
89411A - RING, O (FOR SPEED SENSOR)
90301-18018

MS110,112..(ROY,SAL)..EFI

 1
90301-18018

MS112

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-30060

MS112..HT

 1
89540-30060

MS110,112..HT..(ROY,SAL)..EFI

 1
Common parts
82711-12200
90179-06115
90461-06086
90461-06132
90461-08187
90468-12005
90560-08021
91611-40800
91611-40840
