MS112-STHGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )ATM..DSL,EFI,TBO,TDE

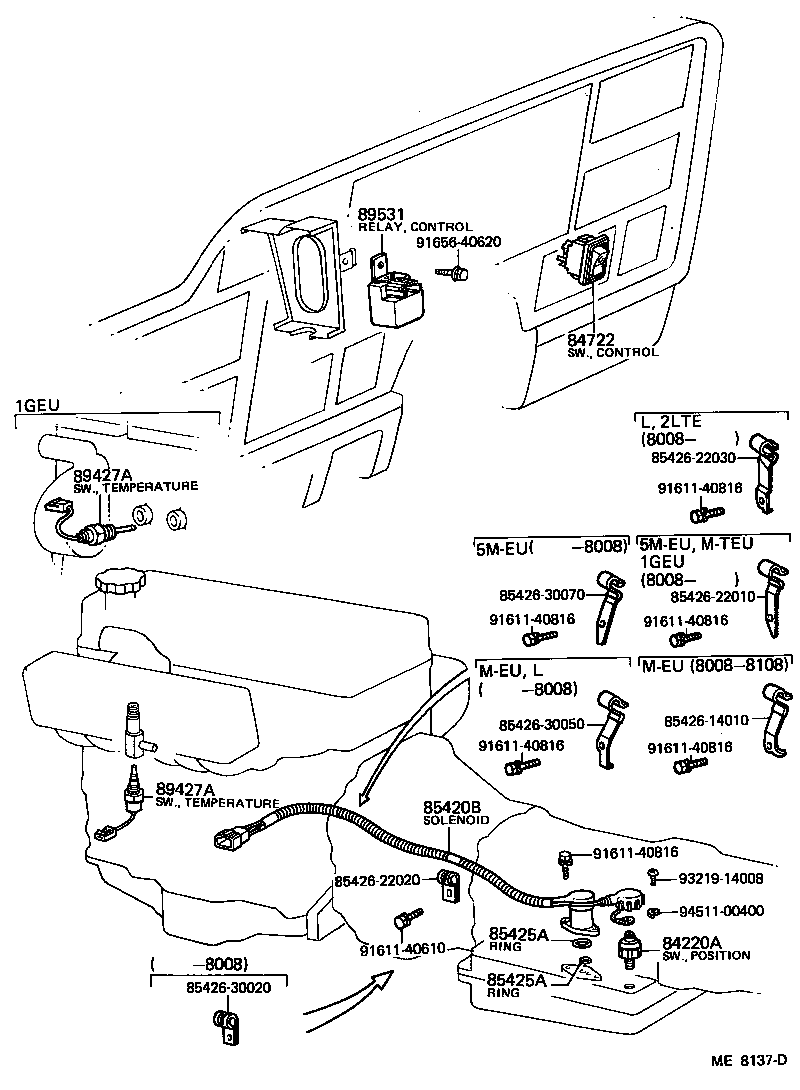

Click highlighted areas on diagram

diagram 84220A 84722 85420B 85425A 85425A 8542614010 8542622010 8542622020 8542622030 8542630020 8542630050 8542630070 89427A 89427A 89531 9161140610 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9165640620 9321914008 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

GS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-30040

GS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-14040

LS11#,MS110,112..4FC,4HC

 1
85420-30022

LS11#,MS110,112..ATM..(DSL,EFI)

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)

OD=23.5

 1
90301-11001

LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)

OD=11

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)

OD=23.5

 1
90301-11001

LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)

OD=11

 1
Common parts
85426-14010
85426-22010
85426-22020
85426-22030
85426-30020
85426-30050
85426-30070
91611-40610
91611-40816
91656-40620
93219-14008
94511-00400
