MS112-SSMQE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine 5MEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)HT,SED

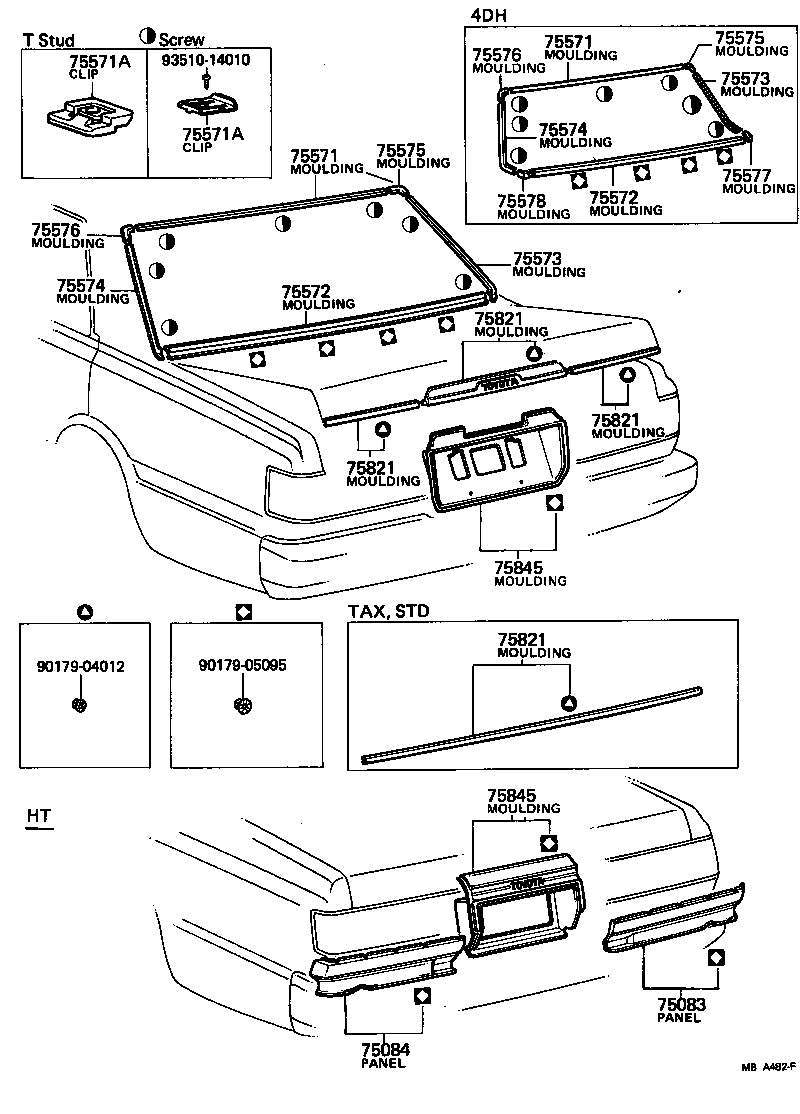

Click highlighted areas on diagram

diagram 75083 75084 75571 75571 75571A 75571A 75572 75572 75573 75573 75574 75574 75575 75575 75576 75576 75577 75578 75821 75821 75821 75821 75845 75845 9017904012 9017905095 9351014010
Part # Description Qty Price
75083 - PANEL SUB-ASSY, LOWER BACK FINISH, RH
75083-39085

LS110,MS110,112..HT

 1
75084 - PANEL SUB-ASSY, LOWER BACK FINISH, LH
75084-39085

LS110,MS110,112..HT

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-30170

GS110,MS110,112..2D

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-30170

GS110,MS110,112..2D

 1
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30021

LS110,MS110,112,RS110..HT,SED

T STUD

 14
75545-30050

GS110,MS110,112..2D

W/LANDAUTOP

 14
75545-30040

GS110,LS110,111,MS110,112,RS110..HT,SED

SCREW

 14
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30021

LS110,MS110,112,RS110..HT,SED

T STUD

 14
75545-30050

GS110,MS110,112..2D

W/LANDAUTOP

 14
75545-30040

GS110,LS110,111,MS110,112,RS110..HT,SED

SCREW

 14
75572 - MOULDING, BACK WINDOW, LOWER
75507-30120

GS110,LS110,111,MS110,112..HT

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-30120

GS110,LS110,111,MS110,112..HT

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-30180

GS110,MS110,112..2D

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-30180

GS110,MS110,112..2D

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-30180

GS110,MS110,112..2D

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-30180

GS110,MS110,112..2D

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-30060

GS110,MS110,112..2D

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-30060

GS110,MS110,112..2D

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75582-30060

GS110,MS110,112..2D

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75582-30060

GS110,MS110,112..2D

 1
75845 - MOULDING, BODY LOWER BACK PANEL, CENTER
75082-39055

LS110,MS110,112..HT

 1
75845 - MOULDING, BODY LOWER BACK PANEL, CENTER
75082-39055

LS110,MS110,112..HT

 1
Common parts
90179-04012
90179-05095
93510-14010
