MS112-SSMQE (1979)
Toyota Crown

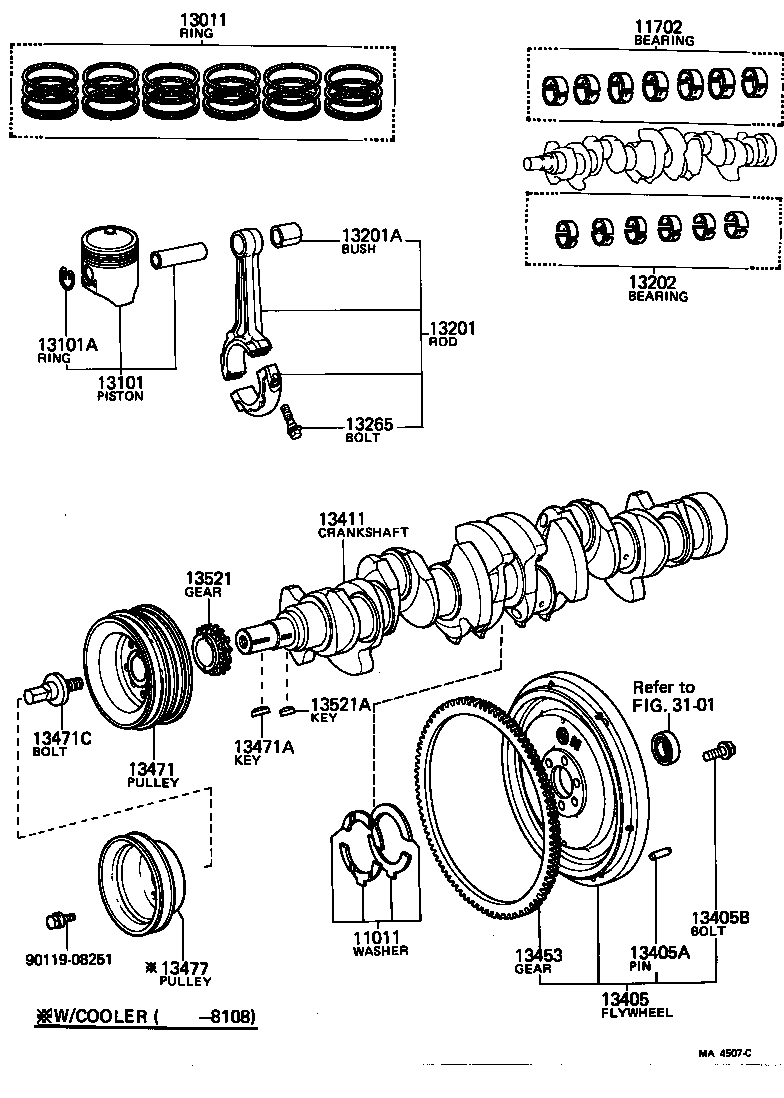

(7909- )MEU,MJ,MTEU,MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-43010 |
MEU,MJ,5M#,MTEU,MU..MS11# STD,STD |
1 | ||
| 11012-43010 |
MEU,MJ,5M#,MTEU,MU..MS11# O/S 0.125,O/S 0.125 |
1 | ||
| 11013-43010 |
MEU,MJ,5M#,MTEU,MU..MS11# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# STD,STD |
1 | ||
| 11703-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.05,U/S 0.05 |
1 | ||
| 11704-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.25,U/S 0.25 |
1 | ||
| 11705-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.50,U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-43020 |
5MEU..MS112 O/S 0.75,O/S 0.75 |
1 | ||
| 13011-43010 |
5MEU..MS112 STD,STD |
1 | ||
| 13015-43020 |
5MEU..MS112 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-43020 |
5MEU..MS112 O/S 0.50,O/S 0.50 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-43010 |
5MEU..MS112 STD,STD |
6 | ||
| 13104-43030 |
5MEU..MS112 O/S 0.75,O/S 0.75 |
6 | ||
| 13103-43030 |
5MEU..MS112 O/S 0.50,O/S 0.50 |
6 | ||
| 13105-43030 |
5MEU..MS112 O/S 1.00,O/S 1.00 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25052 |
MEU,MJ,5M#,MTEU,MU..MS11# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-45010 |
5M#..MS112 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73066 |
MEU,MJ,5M#,MTEU,MU..MS11# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# STD,STD |
1 | ||
| 13204-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.25,U/S 0.25 |
1 | ||
| 13205-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.50,U/S 0.50 |
1 | ||
| 13203-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.05,U/S 0.05 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49025 |
5M#..MS112 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-49116 |
MEU,MJ,5MEU,MU..MS11#..MTM N=115 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
MEU,MJ,5MEU,MU..MS11#..MTM 長さ=23,外径=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
MEU,MJ,5MEU,MU..MS11#..MTM *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-45012 |
5M#..MS112 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
MEU,MJ,5MEU,MU..MS11#..MTM N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-41021 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05001 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16002 |
MEU,MJ,5M#,MTEU,MU..MS11# *16-1.5PX26-21 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-30330 |
MEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO ST |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-41011 |
MEU,MJ,5MEU,MTEU,MU..MS11# N=20 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| Common parts | ||||
| 90119-08251 | ||||
| Linked diagrams | ||||
| 3101 | ||||

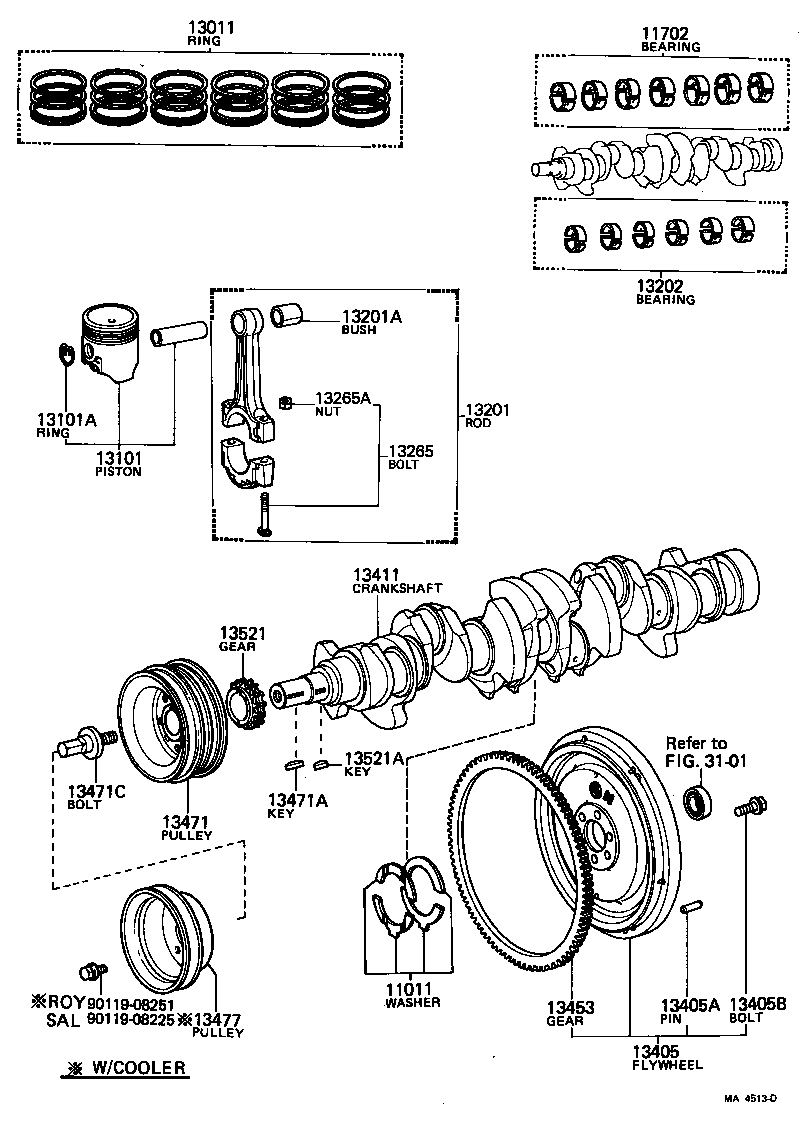

(7909- )5MEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-43010 |
MEU,MJ,5M#,MTEU,MU..MS11# STD,STD |
1 | ||
| 11012-43010 |
MEU,MJ,5M#,MTEU,MU..MS11# O/S 0.125,O/S 0.125 |
1 | ||
| 11013-43010 |
MEU,MJ,5M#,MTEU,MU..MS11# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# STD,STD |
1 | ||
| 11703-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.05,U/S 0.05 |
1 | ||
| 11704-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.25,U/S 0.25 |
1 | ||
| 11705-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.50,U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-43020 |
5MEU..MS112 O/S 0.75,O/S 0.75 |
1 | ||
| 13011-43010 |
5MEU..MS112 STD,STD |
1 | ||
| 13015-43020 |
5MEU..MS112 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-43020 |
5MEU..MS112 O/S 0.50,O/S 0.50 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-43010 |
5MEU..MS112 STD,STD |
6 | ||
| 13104-43030 |
5MEU..MS112 O/S 0.75,O/S 0.75 |
6 | ||
| 13103-43030 |
5MEU..MS112 O/S 0.50,O/S 0.50 |
6 | ||
| 13105-43030 |
5MEU..MS112 O/S 1.00,O/S 1.00 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25052 |
MEU,MJ,5M#,MTEU,MU..MS11# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-45010 |
5M#..MS112 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73066 |
MEU,MJ,5M#,MTEU,MU..MS11# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# STD,STD |
1 | ||
| 13204-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.25,U/S 0.25 |
1 | ||
| 13205-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.50,U/S 0.50 |
1 | ||
| 13203-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# U/S 0.05,U/S 0.05 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49025 |
5M#..MS112 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
5M#..MS112 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-49116 |
MEU,MJ,5MEU,MU..MS11#..MTM N=115 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
MEU,MJ,5MEU,MU..MS11#..MTM 長さ=23,外径=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
MEU,MJ,5MEU,MU..MS11#..MTM *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-45012 |
5M#..MS112 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
MEU,MJ,5MEU,MU..MS11#..MTM N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-41021 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05001 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16002 |
MEU,MJ,5M#,MTEU,MU..MS11# *16-1.5PX26-21 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-30330 |
MEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO ST |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-41011 |
MEU,MJ,5MEU,MTEU,MU..MS11# N=20 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| Common parts | ||||
| 90119-08225 | ||||
| 90119-08251 | ||||
| Linked diagrams | ||||
| 3101 | ||||
