MS112-SSHQE (1979)
Toyota Crown
ILLUST NO. 1 OF 2(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30050 |
MS117;MS110,112..2D;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30050 |
MS117;MS110,112..2D;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
GS11#,LS11#,MS11#,RS110 12V 5W,12V 5W |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
GS11#,LS11#,MS11#,RS110 12V 5W,12V 5W |
4 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30010 |
GS110,MS110,112..2D;GS117,LS117,MS117,RS110;GS110,LS110,MS110..BTP,CTE,DLX,STD,TAX DOOR TORIM |
1 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30010 |
GS110,MS110,112..2D;GS117,LS117,MS117,RS110;GS110,LS110,MS110..BTP,CTE,DLX,STD,TAX DOOR TORIM |
1 | ||
| 81236 - RIM, COURTESY LAMP | ||||
| 81236-30010 |
GS110,MS110,112..2D;GS117,LS117,MS117,RS110;GS110,LS110,MS110..BTP,CTE,DLX,STD,TAX DOOR TORIM |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-22030 |
LS110,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
LS110,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE 12V 1.2W ｿｹｯﾄ無し,12V 1.4W(MARK=74) |
1 | ||
| 81280 - LAMP ASSY, ENGINE ROOM | ||||
| 81280-30031 |
GS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE |
1 | ||
| 81280B - BULB, ENGINE ROOM LAMP | ||||
| 99132-13060 |
GS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE 12V 6W,12V 6W |
1 | ||
| 81281 - LENS, ENGINE ROOM LAMP | ||||
| 81281-30010 |
GS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE |
1 | ||
| 81282 - PACKING, ENGINE ROOM LAMP LENS | ||||
| 81282-30010 |
GS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-30070 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-30070 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13060 |
MS110,112..HT..(ROY,SAL,SPE) 12V 6W,12V 6W |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13060 |
MS110,112..HT..(ROY,SAL,SPE) 12V 6W,12V 6W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81281-30010 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 81332 - PACKING, LUGGAGE COMPARTMENT LAMP LENS | ||||
| 81282-30010 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30020 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 99132-12050 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE 12V 5W,12V 5W |
1 | ||
| Common parts | ||||
| 81239-30050 | ||||
| 93510-24014 | ||||
| 93530-24020 | ||||

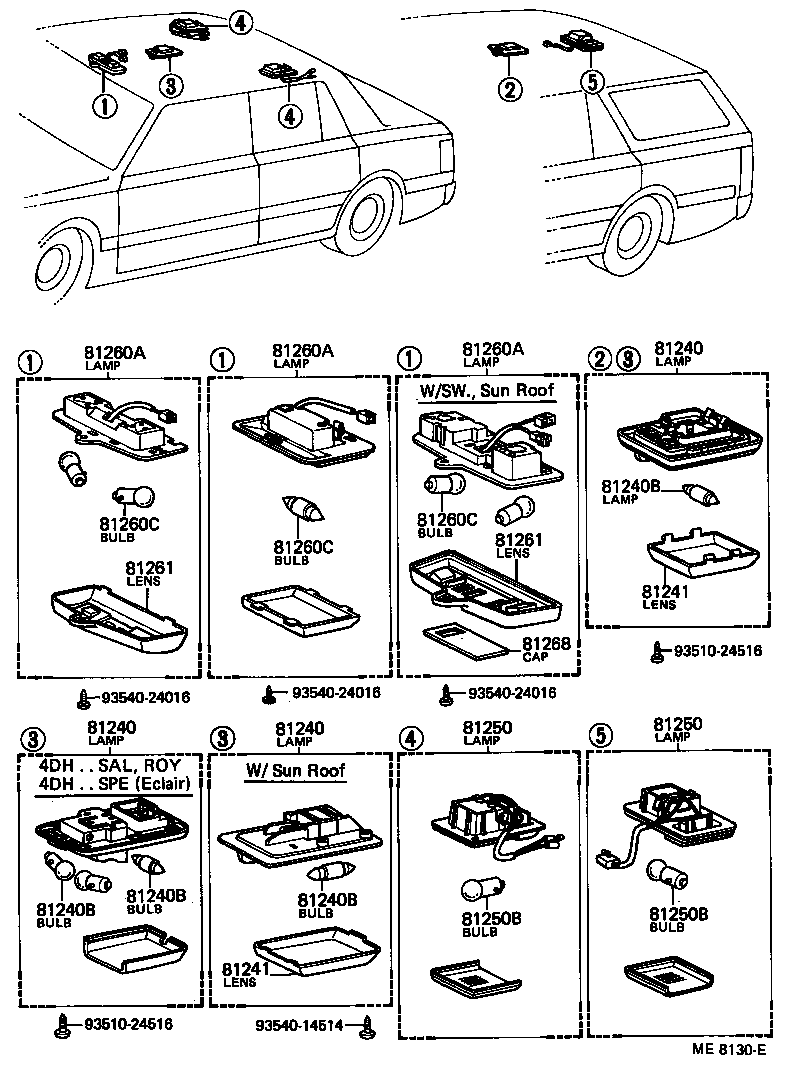

ILLUST NO. 2 OF 2(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-3007004 |
LS11#,MS117,RS110;MS110,112..SED,WG;MS110..HT..(CTE,DLX,SPE);MS110,112..(ROY,SAL)..2D BLUE,BLUE,TRIM8# |
1 | ||
| 81240-1401304 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81240-3007008 |
LS11#,MS117,RS110;MS110,112..SED,WG;MS110..HT..(CTE,DLX,SPE);MS110,112..(ROY,SAL)..2D IVORY,IVORY,TRIM3#,4# |
1 | ||
| 81240-1401318 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-3007004 |
LS11#,MS117,RS110;MS110,112..SED,WG;MS110..HT..(CTE,DLX,SPE);MS110,112..(ROY,SAL)..2D BLUE,BLUE,TRIM8# |
1 | ||
| 81240-1401304 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81240-3007008 |
LS11#,MS117,RS110;MS110,112..SED,WG;MS110..HT..(CTE,DLX,SPE);MS110,112..(ROY,SAL)..2D IVORY,IVORY,TRIM3#,4# |
1 | ||
| 81240-1401318 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-3007004 |
LS11#,MS117,RS110;MS110,112..SED,WG;MS110..HT..(CTE,DLX,SPE);MS110,112..(ROY,SAL)..2D BLUE,BLUE,TRIM8# |
1 | ||
| 81240-1401304 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81240-3007008 |
LS11#,MS117,RS110;MS110,112..SED,WG;MS110..HT..(CTE,DLX,SPE);MS110,112..(ROY,SAL)..2D IVORY,IVORY,TRIM3#,4# |
1 | ||
| 81240-1401318 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11015 |
GS110,MS110,112..HT..(ROY,SAL,SPE) 12V 10W,12V 10W,W/SUN ROOF |
1 | ||
| 99132-12100 |
GS11#,LS11#,MS11#,RS110 12V 10W,12V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11015 |
GS110,MS110,112..HT..(ROY,SAL,SPE) 12V 10W,12V 10W,W/SUN ROOF |
1 | ||
| 99132-12100 |
GS11#,LS11#,MS11#,RS110 12V 10W,12V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11015 |
GS110,MS110,112..HT..(ROY,SAL,SPE) 12V 10W,12V 10W,W/SUN ROOF |
1 | ||
| 99132-12100 |
GS11#,LS11#,MS11#,RS110 12V 10W,12V 10W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11015 |
GS110,MS110,112..HT..(ROY,SAL,SPE) 12V 10W,12V 10W,W/SUN ROOF |
1 | ||
| 99132-12100 |
GS11#,LS11#,MS11#,RS110 12V 10W,12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-30070 |
LS111,MS110..SED,WG;GS110..CTE,DLX,SDX,SPE;GS110,MS112..SED..(ROY,SAL);GS117,LS110,117,MS117,RS110;GS110,MS110,112..(ROY,SAL)..2D;LS111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-30070 |
LS111,MS110..SED,WG;GS110..CTE,DLX,SDX,SPE;GS110,MS112..SED..(ROY,SAL);GS117,LS110,117,MS117,RS110;GS110,MS110,112..(ROY,SAL)..2D;LS111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3008008 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81260-3007008 |
MS110,112..ROY,SAL,SPE IVORY,IVORY,TRIM3#,4# |
1 | ||
| 81260-3007004 |
MS110,112..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 81260-3008004 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3008008 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81260-3007008 |
MS110,112..ROY,SAL,SPE IVORY,IVORY,TRIM3#,4# |
1 | ||
| 81260-3007004 |
MS110,112..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 81260-3008004 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3008008 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81260-3007008 |
MS110,112..ROY,SAL,SPE IVORY,IVORY,TRIM3#,4# |
1 | ||
| 81260-3007004 |
MS110,112..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 81260-3008004 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90049-51052 |
GS110,LS110,111,MS110,112..ROY,SAL,SPE 12V 10W,12V 10W |
2 | ||
| 99132-12100 |
GS110,MS110,112..HT..(ROY,SAL,SPE) 12V 10W,12V 10W,W/SUN ROOF |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90049-51052 |
GS110,LS110,111,MS110,112..ROY,SAL,SPE 12V 10W,12V 10W |
2 | ||
| 99132-12100 |
GS110,MS110,112..HT..(ROY,SAL,SPE) 12V 10W,12V 10W,W/SUN ROOF |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90049-51052 |
GS110,LS110,111,MS110,112..ROY,SAL,SPE 12V 10W,12V 10W |
2 | ||
| 99132-12100 |
GS110,MS110,112..HT..(ROY,SAL,SPE) 12V 10W,12V 10W,W/SUN ROOF |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3007008 |
MS110,112..ROY,SAL,SPE IVORY,IVORY,TRIM4# |
1 | ||
| 81261-3008004 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81261-3007004 |
MS110,112..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 81261-3008008 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3007008 |
MS110,112..ROY,SAL,SPE IVORY,IVORY,TRIM4# |
1 | ||
| 81261-3008004 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| 81261-3007004 |
MS110,112..ROY,SAL,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 81261-3008008 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81268 - CAP MAP LAMP | ||||
| 81268-3008008 |
MS110,112..HT..(ROY,SAL,SPE) IVORY,W/SUN ROOF,IVORY,TRIM3#,4# |
1 | ||
| 81268-3008004 |
MS110,112..HT..(ROY,SAL,SPE) BLUE,W/SUN ROOF,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 93510-24516 | ||||
| 93540-14514 | ||||
| 93540-24016 | ||||
