MS112-SSHQE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)HT

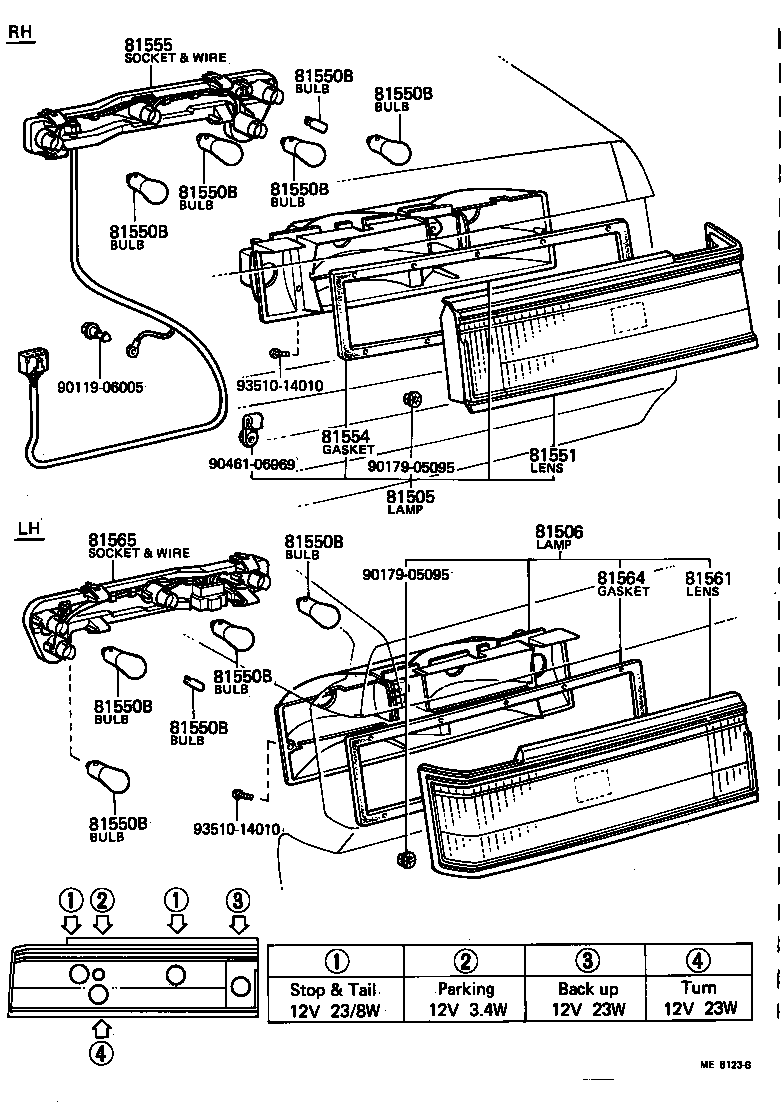

Click highlighted areas on diagram

diagram 81505 81506 81550B 81550B 81550B 81550B 81550B 81550B 81550B 81550B 81550B 81550B 81551 81554 81555 81561 81564 81565 9011906005 9017905095 9017905095 9046106969 9351014010 9351014010
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-39115

LS110,MS110,112..HT

 1
81506 - LAMP SUB-ASSY, REAR COMBINATION, LH
81506-39095

LS110,MS110,112..HT

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GS11#,LS11#,MS11#,RS110

12V 23W,12V 23W

 4
99132-21230

LS11#,MS11#,RS110

12V 23/8W,12V 23/8W

 4
99132-12034

GS11#,LS11#,MS11#,RS110

12V 3.4W,12V 3.4W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-30500

LS110,MS110,112..HT

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-30500

GS110,LS110,111,MS110,112..HT

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81553-30500

LS110,MS110,112..HT

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-30450

LS110,MS110,112..HT

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-30450

GS110,LS110,111,MS110,112..HT

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81563-30450

LS110,MS110,112..HT

 1
Common parts
90119-06005
90179-05095
90461-06969
93510-14010
