MS112-SENQF (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 5MGEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

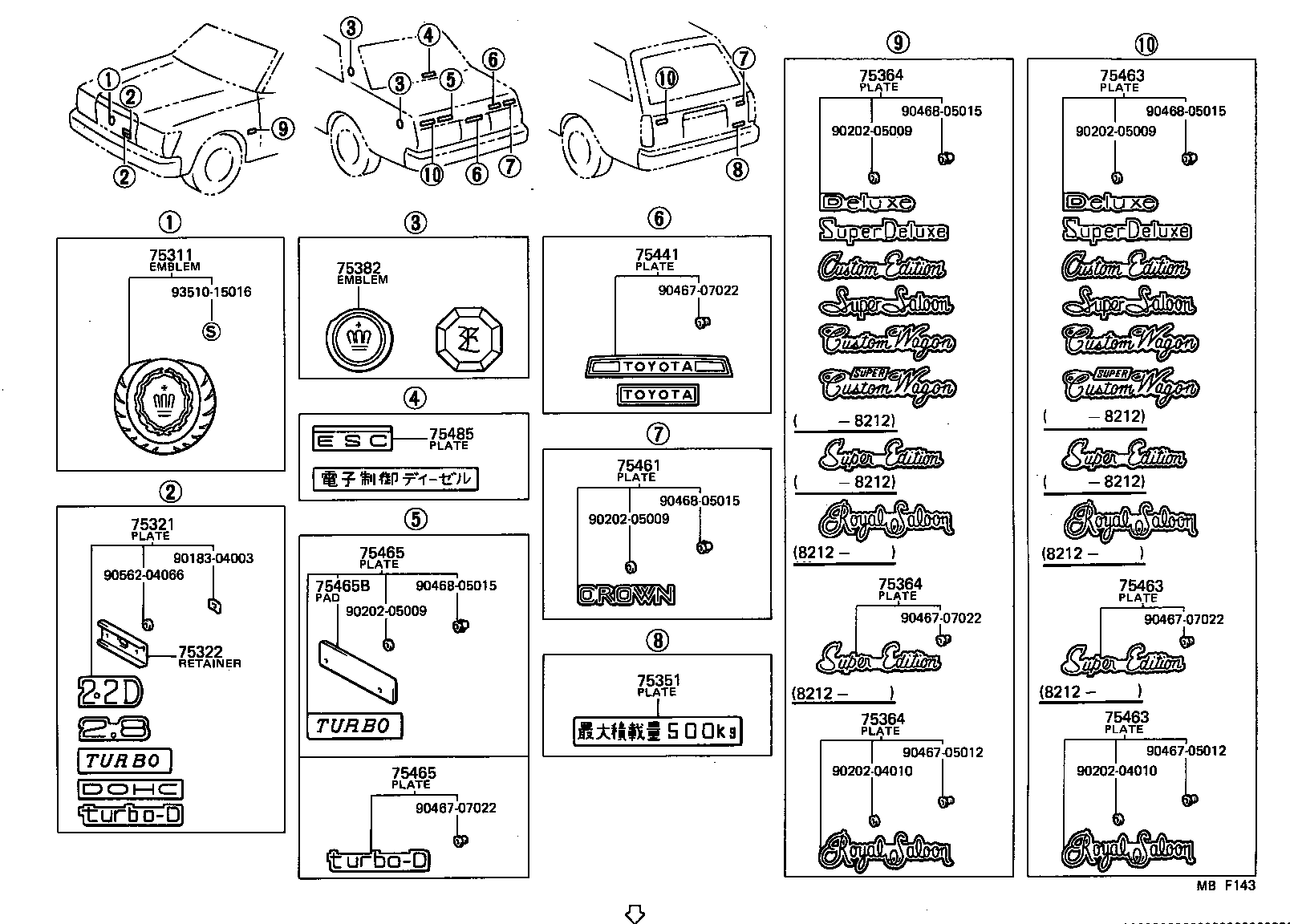

Click highlighted areas on diagram

diagram 75311 75321 75322 75351 75364 75364 75364 75382 75441 75461 75463 75463 75463 75465 75465 75465B 75485 9018304003 9020204010 9020204010 9020205009 9020205009 9020205009 9020205009 9046705012 9046705012 9046707022 9046707022 9046707022 9046707022 9046805015 9046805015 9046805015 9046805015 9056204066 9351015016
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-39065

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75311-30110

MS110,112..SED..(ROY,SAL)

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75322-39015

MS112..TWC

DOHC

 1
75321-39075

MS112

2.8

 1
75321-39125

MS112..SED

2.8

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-30030

MS112;LS11#,MS110..DSL,TBO

 1
75324-30060

LS110,117,MS110,112..DSL,EFI,TBO,TWC

 1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75361-30150

MS112..ROY

ROYAL SALOON

 2
75361-30151

MS112

ROYAL SALOON

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75361-30150

MS112..ROY

ROYAL SALOON

 2
75361-30151

MS112

ROYAL SALOON

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75361-30150

MS112..ROY

ROYAL SALOON

 2
75361-30151

MS112

ROYAL SALOON

 2
75382 - EMBLEM, QUARTER PANEL OR SIDE PANEL
75371-30060

MS112..4D

 2
75441 - PLATE, REAR NAME, NO.1
75431-30170

GS110,LS110,111,MS110,112..CTE,ROY,SAL,SPE

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-30090

GS11#,LS11#,MS11#,RS110

CROWN

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75361-30151

MS112

ROYAL SALOON

 1
75361-30150

MS112..ROY

ROYAL SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75361-30151

MS112

ROYAL SALOON

 1
75361-30150

MS112..ROY

ROYAL SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75361-30151

MS112

ROYAL SALOON

 1
75361-30150

MS112..ROY

ROYAL SALOON

 1
75485 - PLATE, BACK WINDOW NAME
75485-30020

MS112

ESC

 1
Common parts
90183-04003
90202-04010
90202-05009
90467-05012
90467-07022
90468-05015
90562-04066
93510-15016
