MS112-SENQE (1979)
Toyota Crown

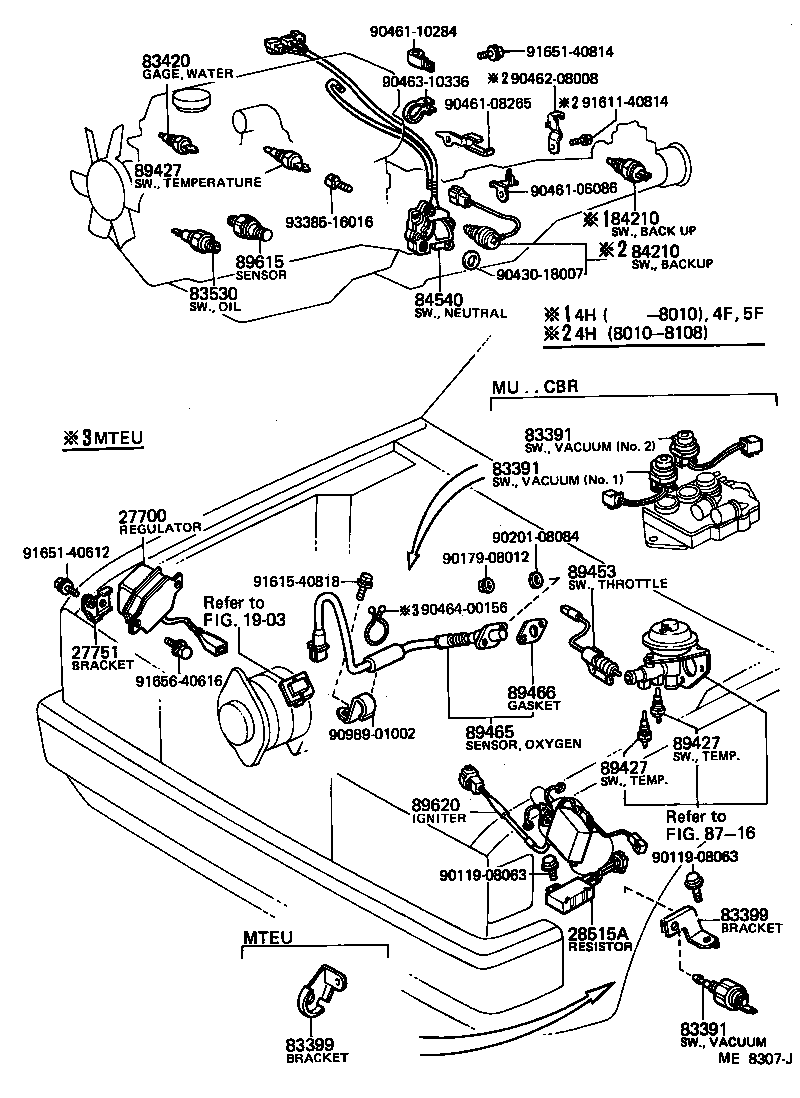

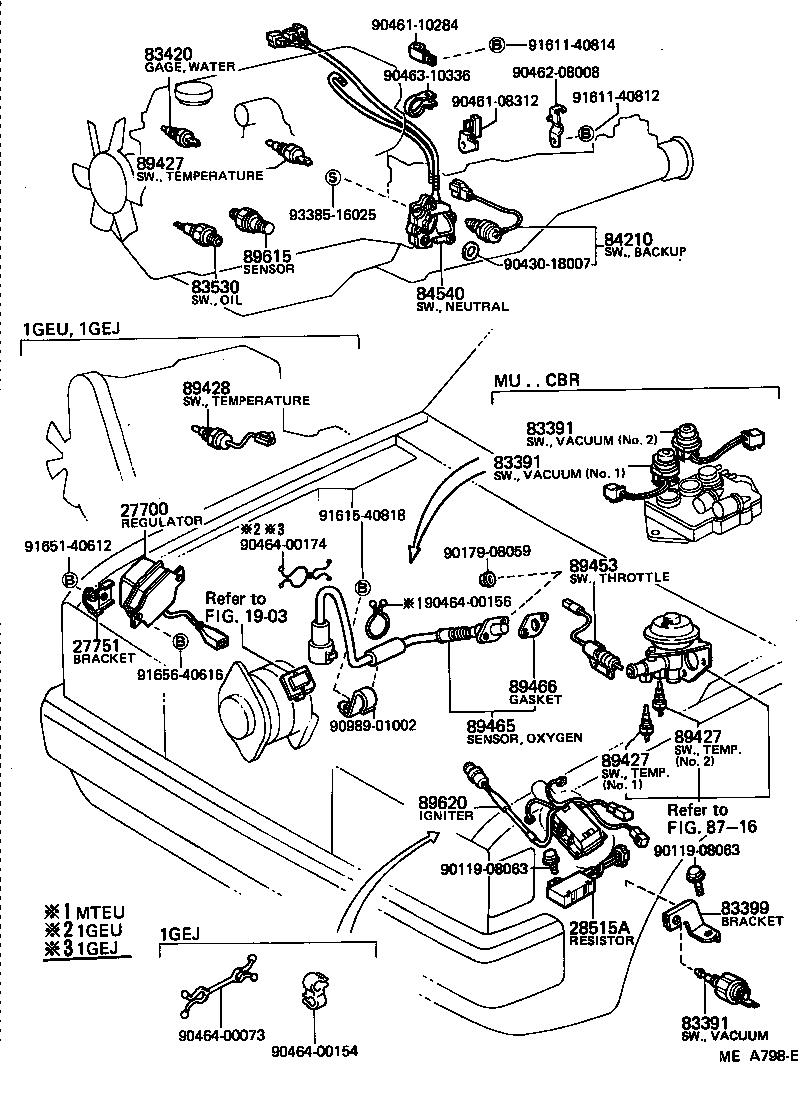

ILLUST NO. 1 OF 8(7909-8108)MS11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS11#,LS11#,MS11#,RS110 YAZAKI |
1 | ||
| 83420-16010 |
GS11#,LS11#,MS11#,RS110 DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30042 |
GS110,MS11# |
1 | ||
| 83530-30050 |
MS11# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
LS11#,MS11#,RS110..4F,4H,5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
LS11#,MS11#,RS110..4F,4H,5F |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30210 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 84540-30190 |
LS11#,MS110,112..ATM |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 83430-30020 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.2(MARK=50) |
1 | ||
| 83430-30010 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.1(MARK=30) |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 83430-30020 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.2(MARK=50) |
1 | ||
| 83430-30010 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.1(MARK=30) |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 83430-30020 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.2(MARK=50) |
1 | ||
| 83430-30010 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.1(MARK=30) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39045 |
MS110,112..EFI |
1 | ||
| 89465-29065 |
MS110,112..CBR,EFI |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
GS11#,MS110,112,RS110 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-30080 |
MS110,112..CBR,EFI |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90179-08012 | ||||
| 90201-08084 | ||||
| 90430-18007 | ||||
| 90461-06086 | ||||
| 90461-08265 | ||||
| 90461-10284 | ||||
| 90462-08008 | ||||
| 90463-10336 | ||||
| 90464-00156 | ||||
| 90989-01002 | ||||
| 91611-40814 | ||||
| 91615-40818 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91656-40616 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8716 | ||||

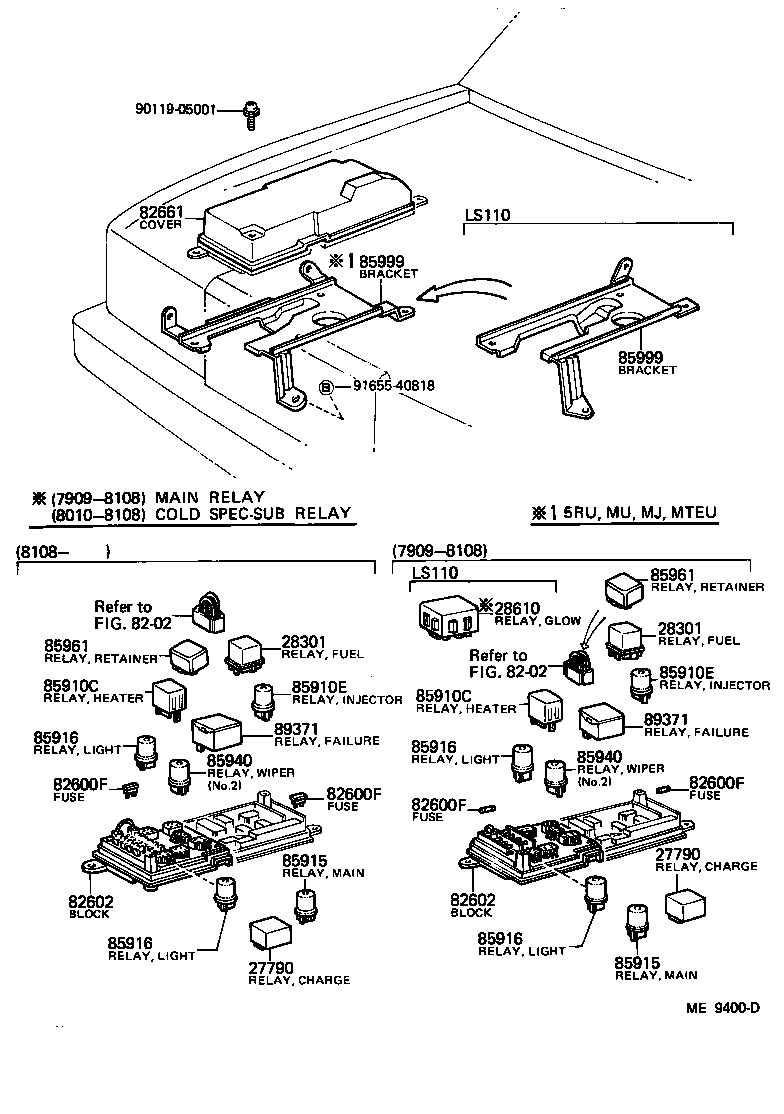

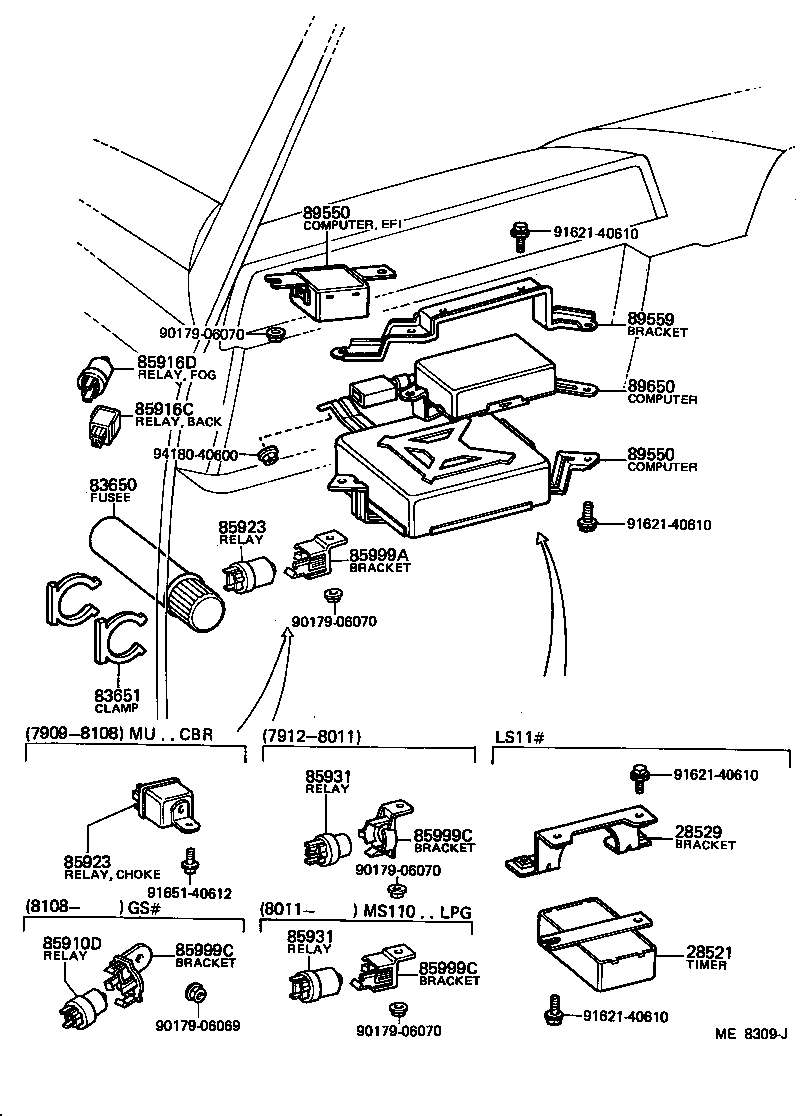

ILLUST NO. 3 OF 8(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90986-01003 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25001 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 85916-30040 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
GS110,LS110,111,MS110,112..CTE,ROY,SAL,SDX,SPE |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30110 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE ROOM LAMP RELAY |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-30150 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-30150 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30030 |
MS110..TBO;MS112..ROY |
1 | ||
| 89650-30060 |
MS110..TBO;GS110,LS111,MS112..ROY,SAL |
1 | ||
| 89650-30030 |
MS110..TBO;GS110,MS112..ROY,SAL |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90179-06070 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
| 94180-40600 | ||||

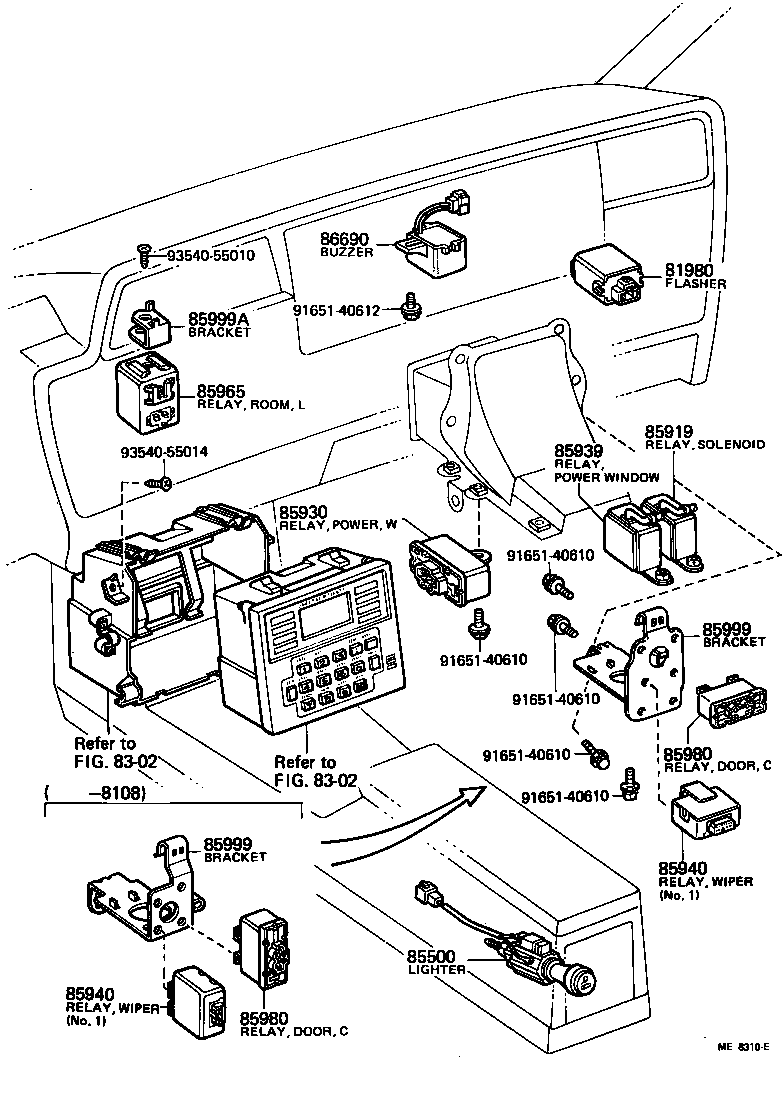

ILLUST NO. 4 OF 8(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 81980-22060 |
GS110,LS11#,MS11#,RS110 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30280 |
GS110,LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(DLX,ROY,SAL,SDX) RR |
1 | ||
| 85500-30300 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE FR |
1 | ||
| 85919 - RELAY, SOLENOID LOCK DOOR CONTROL | ||||
| 85918-30063 |
GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 85918-30062 |
GS110,LS110,MS110,112..ROY,SAL |
1 | ||
| 85918-30061 |
MS110,112..ROY,SAL |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-30040 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85930-30050 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 85939-30020 |
GS110,LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85939-30021 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30080 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 85940-30060 |
LS110,MS110,112..ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 90987-02004 |
GS11#,LS11#,MS11#,RS110 N0.2 |
1 | ||
| 90987-02001 |
LS11#,MS11#,RS110 N0.2 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30080 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 85940-30060 |
LS110,MS110,112..ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 90987-02004 |
GS11#,LS11#,MS11#,RS110 N0.2 |
1 | ||
| 90987-02001 |
LS11#,MS11#,RS110 N0.2 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85965-30010 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-30130 |
MS110..(SED,WG)..4F..(DLX,SDX);LS110,MS110,112..(3FC,3HC,4FC,4H,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..4D..(CBR,DSL,EFI,TBO) |
1 | ||
| 85980-30160 |
GS110,LS110,111,MS110,112..(DLX,ROY,SAL,SDX,SPE)..4D |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-30130 |
MS110..(SED,WG)..4F..(DLX,SDX);LS110,MS110,112..(3FC,3HC,4FC,4H,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..4D..(CBR,DSL,EFI,TBO) |
1 | ||
| 85980-30160 |
GS110,LS110,111,MS110,112..(DLX,ROY,SAL,SDX,SPE)..4D |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
GS110,MS11#,RS110..CBR,EFI,LPG,TWC ENGINE ROOM |
1 | ||
| 85999-30180 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 85999-30090 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
GS110,MS11#,RS110..CBR,EFI,LPG,TWC ENGINE ROOM |
1 | ||
| 85999-30180 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 85999-30090 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-30110 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE ROOM LAMP RELAY |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-30040 |
GS11#,LS110,111,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93540-55010 | ||||
| 93540-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

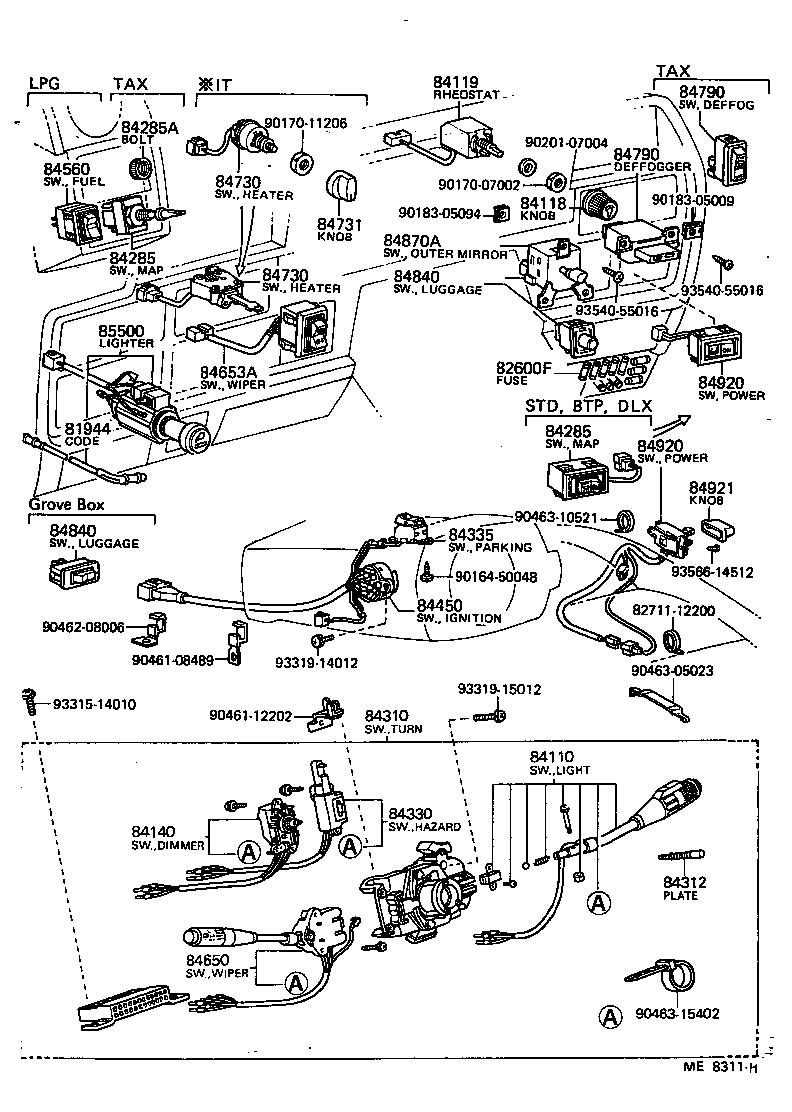

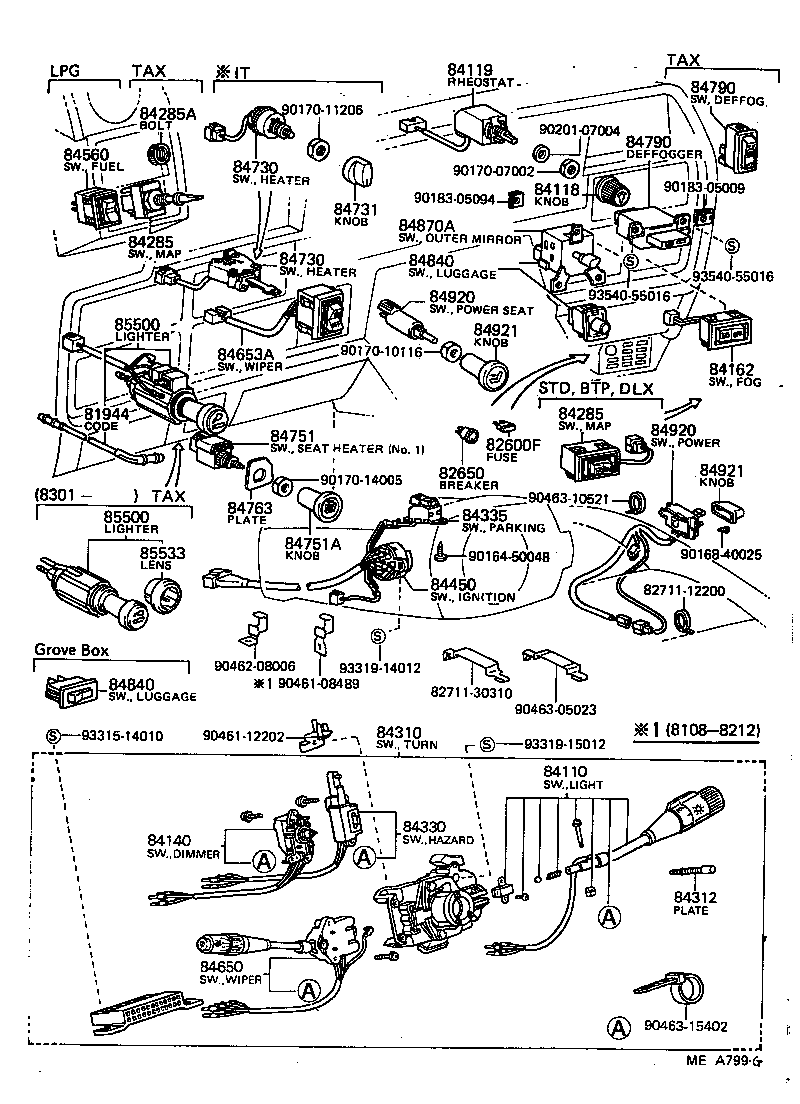

ILLUST NO. 5 OF 8(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-30010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 81944-20021 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LS11#,MS11#,RS110 5A,L=20 |
4 | ||
| 90982-07010 |
LS11#,MS11#,RS110 7.5A |
1 | ||
| 90982-09001 |
GS11#,LS11#,MS11#,RS110 5A,5A |
1 | ||
| 90982-09004 |
GS11#,LS11#,MS11#,RS110 20A,黄,20A |
2 | ||
| 99118-62905 |
LS11#,MS11#,RS110 5A,5A,L=30 |
3 | ||
| 99118-62915 |
LS11#,MS11#,RS110 15A,15A |
17 | ||
| 99118-62920 |
LS11#,MS11#,RS110 20A,20A |
2 | ||
| 99118-62910 |
LS11#,MS11#,RS110 10A |
7 | ||
| 99118-62930 |
LS11#,MS11#,RS110 30A |
3 | ||
| 90982-09002 |
GS11#,LS11#,MS11#,RS110 10A,10A |
5 | ||
| 90982-09005 |
GS11#,LS11#,MS11#,RS110 7.5A,7.5A |
1 | ||
| 90982-09003 |
GS11#,LS11#,MS11#,RS110 15A,15A |
13 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29116 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84112-69015 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84112-39095 |
MS112 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-30020 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84118-30030 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30020 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84119-30030 |
GS110,LS110,111,MS112..ROY,SAL,SDX,SPE |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29016 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84140-29095 |
GS11#,LS11#,MS11#..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/*TIS |
1 | ||
| 84140-29016 |
RS110..BTP,DLX,STD;MS110,112,RS110..(4H,4HC)..(ROY,SAL,TAX);LS11#,MS110,117..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-30280 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84310-30281 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84310-30400 |
MS112 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39095 |
GS11#,LS11#,MS11#..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 84332-29016 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-30080 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27030 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84450-30140 |
GS11#,LS11#,MS11#..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39035 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84652-39145 |
GS110,LS110,111,MS110,112..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 84652-39036 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30140 |
MS112..ROY |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30140 |
MS112..ROY |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30120 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30120 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30050 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) GROVE BOX |
1 | ||
| 84840-30040 |
LS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI) INSTRUMENT UNDER |
1 | ||
| 84840-30041 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) INSTRUMENT UNDER |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30050 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) GROVE BOX |
1 | ||
| 84840-30040 |
LS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI) INSTRUMENT UNDER |
1 | ||
| 84840-30041 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) INSTRUMENT UNDER |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30030 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||

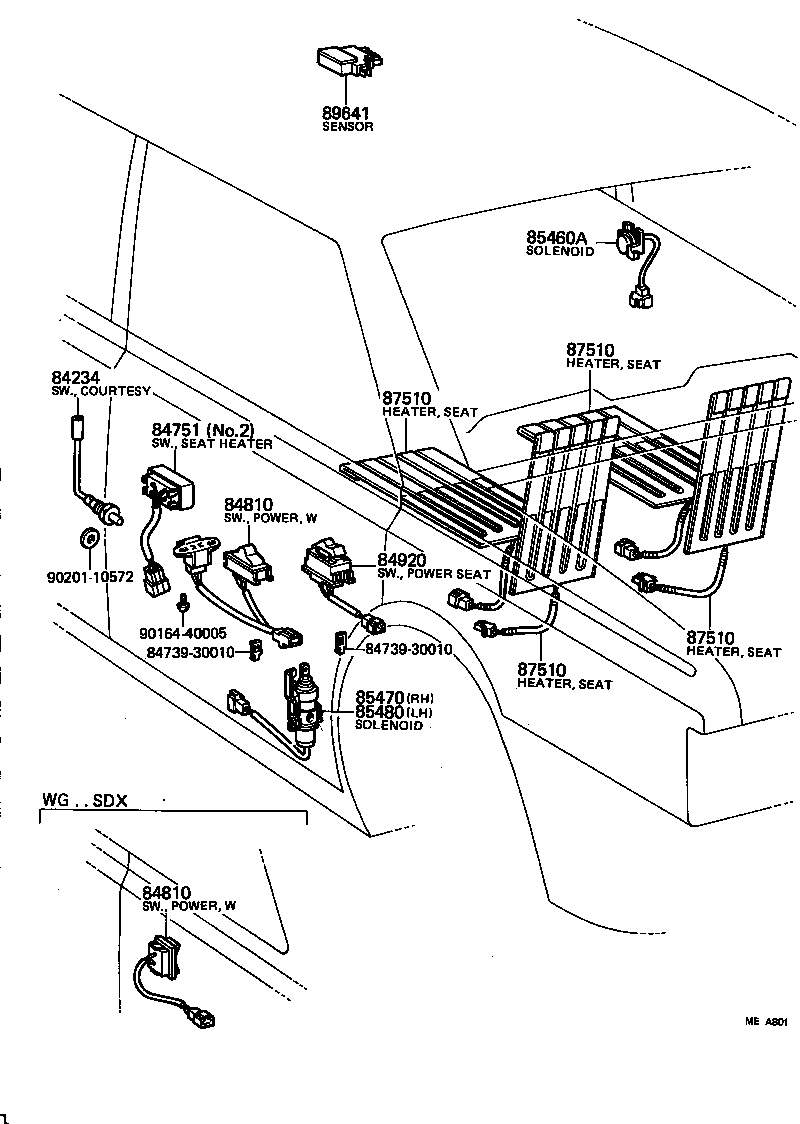

| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30040 |
MS112..SED..ROY FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..ROY..4D RR |
2 | ||
| 84920-30050 |
MS112..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30040 |
MS112..ROY..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..SED..ROY RR |
2 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30040 |
MS112..SED..ROY FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..ROY..4D RR |
2 | ||
| 84920-30050 |
MS112..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30040 |
MS112..ROY..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..SED..ROY RR |
2 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84811-30040 |
MS112..4D FR CONTROL RR ROWER SEAT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30280 |
GS110,LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(DLX,ROY,SAL,SDX) RR |
1 | ||
| 85500-30300 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE FR |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90164-50048 | ||||
| 90170-07002 | ||||
| 90170-11206 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90201-07004 | ||||
| 90461-08489 | ||||
| 90461-12202 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-10521 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-55016 | ||||
| 93566-14512 | ||||

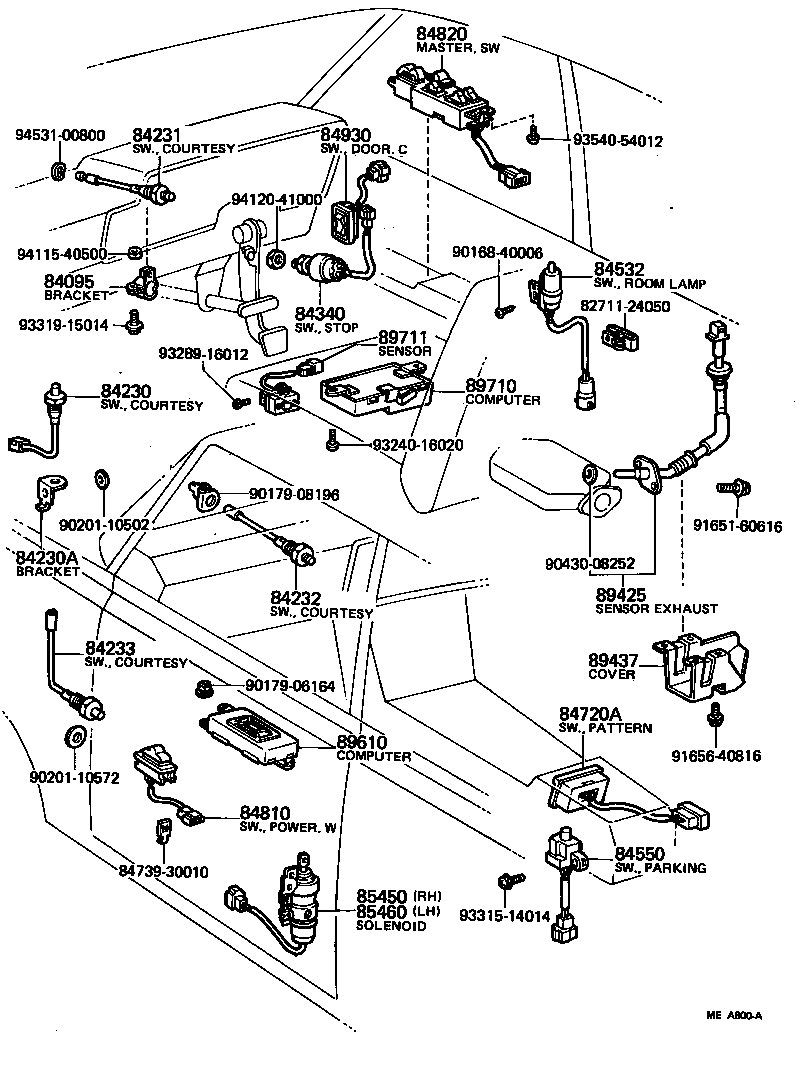

ILLUST NO. 6 OF 8(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-14020 |
LS110,MS110,112,RS110..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84231-30020 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84230A - BRACKET, ENGINE ROOM COURTESY SWITCH | ||||
| 84233-30020 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84550-30021 |
LS117..STD;GS11#,LS110,111,MS11#,RS110..3FC,3H,3HC,4FC,4H,4HC L=210 |
1 | ||
| 84550-30011 |
LS110,MS110,112..ATM L=100 |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-22010 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-30080 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-30080 |
GS11#,LS11#,MS11#,RS110..4D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84340-22072 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-30010 |
MS112..SED |
1 | ||
| 84532-19015 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84532-14010 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30060 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE FR |
1 | ||
| 84810-30070 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30060 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE FR |
1 | ||
| 84810-30070 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30060 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE FR |
1 | ||
| 84810-30070 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D RR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-30150 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84820-30190 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-30150 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84820-30190 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30040 |
MS112..SED..ROY FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..ROY..4D RR |
2 | ||
| 84920-30050 |
MS112..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30040 |
MS112..ROY..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..SED..ROY RR |
2 | ||
| 85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH | ||||
| 85450-30280 |
MS110,112..SED..(ROY,SAL) |
1 | ||
| 85450-30281 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-30340 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 85460A - SOLENOID ASSY, LAP BELT | ||||
| 85460-30011 |
MS110..2D;MS112..ROY |
1 | ||
| 85460-30011 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85460-24010 |
GS110,LS110,111,MS11#..ROY,SAL,SDX,SPE |
1 | ||
| 85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH | ||||
| 85450-30350 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH | ||||
| 85450-30360 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39016 |
MS110,112..EFI,LPG,TBO |
1 | ||
| 89425-39017 |
GS110,MS110,112..EFI,LPG,TBO,TWC |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-30011 |
GS110,MS110,112,RS110 |
1 | ||
| Common parts | ||||
| 84739-30010 | ||||
| 90164-40005 | ||||
| 90179-06164 | ||||
| 90179-08026 | ||||
| 90179-08196 | ||||
| 90201-10572 | ||||
| 90266-02002 | ||||
| 90430-08252 | ||||
| 91651-40816 | ||||
| 91651-60616 | ||||
| 93319-15014 | ||||
| 93540-54012 | ||||
| 94115-40500 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 8601 | ||||

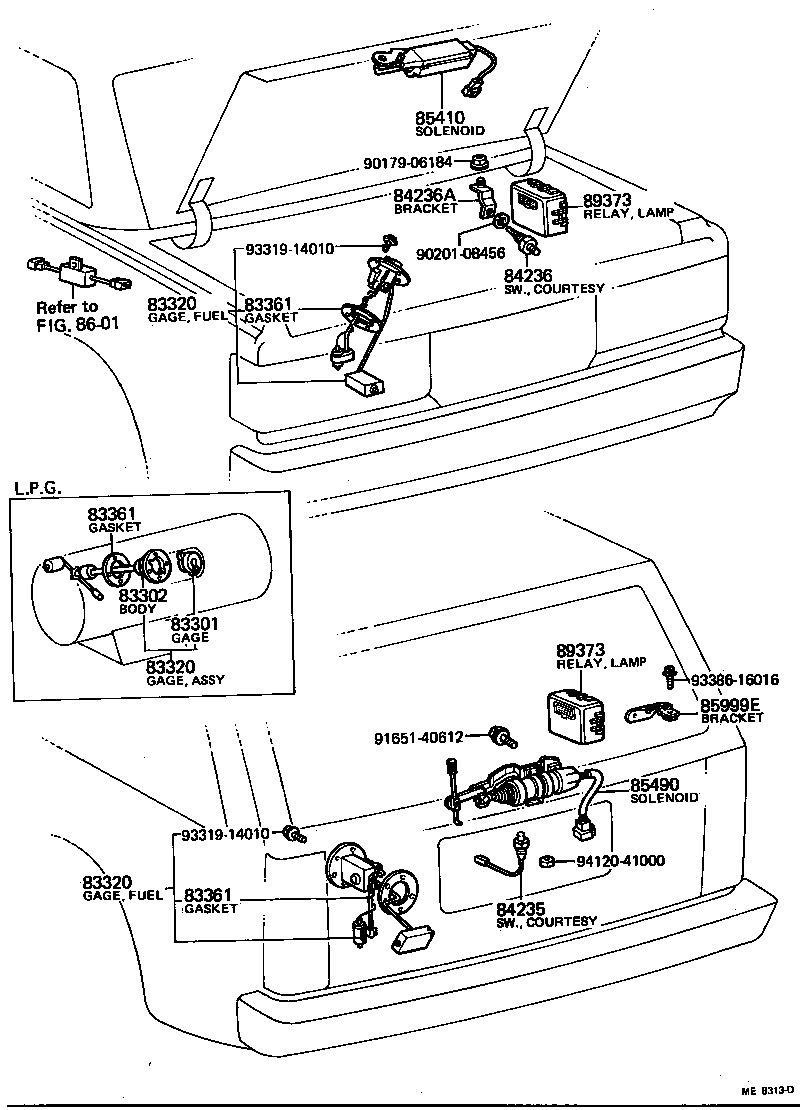

ILLUST NO. 8 OF 8(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39225 |
MS110,112..(HT,SED)..(CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) |
1 | ||
| 83320-39225 |
GS110,MS110,112..(HT,SED)..(CBR,EFI,TWC) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39225 |
MS110,112..(HT,SED)..(CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) |
1 | ||
| 83320-39225 |
GS110,MS110,112..(HT,SED)..(CBR,EFI,TWC) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39225 |
MS110,112..(HT,SED)..(CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) |
1 | ||
| 83320-39225 |
GS110,MS110,112..(HT,SED)..(CBR,EFI,TWC) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20010 |
MS110..BTP..LPG;GS110,LS111,MS112,RS110..HT,SED;LS110,MS110..(HT,SED)..(CTE,DLX,SAL,SDX,SPE) |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-30030 |
MS110..BTP..LPG;GS110,LS111,MS112,RS110..HT,SED;LS110,MS110..(HT,SED)..(CTE,DLX,SAL,SDX,SPE) |
1 | ||
| 85410 - SOLENOID ASSY, LUGGAGE DOOR LOCK | ||||
| 85410-30050 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30010 |
LS110,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 89373-30050 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30010 |
LS110,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 89373-30050 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| Common parts | ||||
| 90179-06184 | ||||
| 90201-08456 | ||||
| 91651-40612 | ||||
| 93319-14010 | ||||
| 93386-16016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 2 OF 8(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-45040 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 27790-45040 |
1GE#,5M#,MTEU..GS11#,MS110,112 |
1 | ||
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-45040 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 27790-45040 |
1GE#,5M#,MTEU..GS11#,MS110,112 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LS11#,MS11#,RS110 5A,L=20 |
4 | ||
| 90982-07010 |
LS11#,MS11#,RS110 7.5A |
1 | ||
| 90982-09001 |
GS11#,LS11#,MS11#,RS110 5A,5A |
1 | ||
| 90982-09004 |
GS11#,LS11#,MS11#,RS110 20A,黄,20A |
2 | ||
| 99118-62905 |
LS11#,MS11#,RS110 5A,5A,L=30 |
3 | ||
| 99118-62915 |
LS11#,MS11#,RS110 15A,15A |
17 | ||
| 99118-62920 |
LS11#,MS11#,RS110 20A,20A |
2 | ||
| 99118-62910 |
LS11#,MS11#,RS110 10A |
7 | ||
| 99118-62930 |
LS11#,MS11#,RS110 30A |
3 | ||
| 90982-09002 |
GS11#,LS11#,MS11#,RS110 10A,10A |
5 | ||
| 90982-09005 |
GS11#,LS11#,MS11#,RS110 7.5A,7.5A |
1 | ||
| 90982-09003 |
GS11#,LS11#,MS11#,RS110 15A,15A |
13 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LS11#,MS11#,RS110 5A,L=20 |
4 | ||
| 90982-07010 |
LS11#,MS11#,RS110 7.5A |
1 | ||
| 90982-09001 |
GS11#,LS11#,MS11#,RS110 5A,5A |
1 | ||
| 90982-09004 |
GS11#,LS11#,MS11#,RS110 20A,黄,20A |
2 | ||
| 99118-62905 |
LS11#,MS11#,RS110 5A,5A,L=30 |
3 | ||
| 99118-62915 |
LS11#,MS11#,RS110 15A,15A |
17 | ||
| 99118-62920 |
LS11#,MS11#,RS110 20A,20A |
2 | ||
| 99118-62910 |
LS11#,MS11#,RS110 10A |
7 | ||
| 99118-62930 |
LS11#,MS11#,RS110 30A |
3 | ||
| 90982-09002 |
GS11#,LS11#,MS11#,RS110 10A,10A |
5 | ||
| 90982-09005 |
GS11#,LS11#,MS11#,RS110 7.5A,7.5A |
1 | ||
| 90982-09003 |
GS11#,LS11#,MS11#,RS110 15A,15A |
13 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LS11#,MS11#,RS110 5A,L=20 |
4 | ||
| 90982-07010 |
LS11#,MS11#,RS110 7.5A |
1 | ||
| 90982-09001 |
GS11#,LS11#,MS11#,RS110 5A,5A |
1 | ||
| 90982-09004 |
GS11#,LS11#,MS11#,RS110 20A,黄,20A |
2 | ||
| 99118-62905 |
LS11#,MS11#,RS110 5A,5A,L=30 |
3 | ||
| 99118-62915 |
LS11#,MS11#,RS110 15A,15A |
17 | ||
| 99118-62920 |
LS11#,MS11#,RS110 20A,20A |
2 | ||
| 99118-62910 |
LS11#,MS11#,RS110 10A |
7 | ||
| 99118-62930 |
LS11#,MS11#,RS110 30A |
3 | ||
| 90982-09002 |
GS11#,LS11#,MS11#,RS110 10A,10A |
5 | ||
| 90982-09005 |
GS11#,LS11#,MS11#,RS110 7.5A,7.5A |
1 | ||
| 90982-09003 |
GS11#,LS11#,MS11#,RS110 15A,15A |
13 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LS11#,MS11#,RS110 5A,L=20 |
4 | ||
| 90982-07010 |
LS11#,MS11#,RS110 7.5A |
1 | ||
| 90982-09001 |
GS11#,LS11#,MS11#,RS110 5A,5A |
1 | ||
| 90982-09004 |
GS11#,LS11#,MS11#,RS110 20A,黄,20A |
2 | ||
| 99118-62905 |
LS11#,MS11#,RS110 5A,5A,L=30 |
3 | ||
| 99118-62915 |
LS11#,MS11#,RS110 15A,15A |
17 | ||
| 99118-62920 |
LS11#,MS11#,RS110 20A,20A |
2 | ||
| 99118-62910 |
LS11#,MS11#,RS110 10A |
7 | ||
| 99118-62930 |
LS11#,MS11#,RS110 30A |
3 | ||
| 90982-09002 |
GS11#,LS11#,MS11#,RS110 10A,10A |
5 | ||
| 90982-09005 |
GS11#,LS11#,MS11#,RS110 7.5A,7.5A |
1 | ||
| 90982-09003 |
GS11#,LS11#,MS11#,RS110 15A,15A |
13 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-30030 |
LS11#,MS11#,RS110 |
1 | ||
| 82602-30070 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-30030 |
LS11#,MS11#,RS110 |
1 | ||
| 82602-30070 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30070 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| 82661-30010 |
MS110,112..EFI,TBO |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 90987-02001 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) W/RR COOLER |
1 | ||
| 90987-02004 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) W/RR COOLER |
1 | ||
| 90987-02001 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 90987-02001 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) W/RR COOLER |
1 | ||
| 90987-02004 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) W/RR COOLER |
1 | ||
| 90987-02001 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS110,LS11#,MS11#,RS110 |
2 | ||
| 90987-02001 |
LS11#,MS11#,RS110 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS110,LS11#,MS11#,RS110 |
2 | ||
| 90987-02001 |
LS11#,MS11#,RS110 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS110,LS11#,MS11#,RS110 |
2 | ||
| 90987-02001 |
LS11#,MS11#,RS110 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GS110,LS11#,MS11#,RS110 |
2 | ||
| 90987-02001 |
LS11#,MS11#,RS110 |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30080 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 85940-30060 |
LS110,MS110,112..ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 90987-02004 |
GS11#,LS11#,MS11#,RS110 N0.2 |
1 | ||
| 90987-02001 |
LS11#,MS11#,RS110 N0.2 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30080 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 85940-30060 |
LS110,MS110,112..ROY,SAL,SDX,SPE NO.1 |
1 | ||
| 90987-02004 |
GS11#,LS11#,MS11#,RS110 N0.2 |
1 | ||
| 90987-02001 |
LS11#,MS11#,RS110 N0.2 |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-30030 |
GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-30030 |
GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
GS110,MS11#,RS110..CBR,EFI,LPG,TWC ENGINE ROOM |
1 | ||
| 85999-30180 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 85999-30090 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-30120 |
GS110,MS11#,RS110..CBR,EFI,LPG,TWC ENGINE ROOM |
1 | ||
| 85999-30180 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 85999-30090 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 89371 - RELAY, LAMP FAILURE INDICATOR | ||||
| 89371-30130 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL) |
1 | ||
| 89371-30150 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 89371 - RELAY, LAMP FAILURE INDICATOR | ||||
| 89371-30130 |
LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL) |
1 | ||
| 89371-30150 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| Common parts | ||||
| 90119-05001 | ||||
| 91655-40818 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 8(8108- )GS11#,MS11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GS11#,LS11#,MS11#,RS110 YAZAKI |
1 | ||
| 83420-16010 |
GS11#,LS11#,MS11#,RS110 DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30042 |
GS110,MS11# |
1 | ||
| 83530-30050 |
MS11# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
LS11#,MS11#,RS110..4F,4H,5F |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30210 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 84540-30190 |
LS11#,MS110,112..ATM |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 83430-30020 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.2(MARK=50) |
1 | ||
| 83430-30010 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.1(MARK=30) |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 83430-30020 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.2(MARK=50) |
1 | ||
| 83430-30010 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.1(MARK=30) |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 83430-30020 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.2(MARK=50) |
1 | ||
| 83430-30010 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) NO.1(MARK=30) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39045 |
MS110,112..EFI |
1 | ||
| 89465-29065 |
MS110,112..CBR,EFI |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
GS11#,MS110,112,RS110 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-30080 |
MS110,112..CBR,EFI |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-10284 | ||||
| 90462-08008 | ||||
| 90463-10336 | ||||
| 90464-00073 | ||||
| 90464-00154 | ||||
| 90464-00156 | ||||
| 90464-00174 | ||||
| 90989-01002 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91615-40818 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8716 | ||||
ILLUST NO. 5 OF 8(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-30010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 81944-20021 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
LS11#,MS11#,RS110 5A,L=20 |
4 | ||
| 90982-07010 |
LS11#,MS11#,RS110 7.5A |
1 | ||
| 90982-09001 |
GS11#,LS11#,MS11#,RS110 5A,5A |
1 | ||
| 90982-09004 |
GS11#,LS11#,MS11#,RS110 20A,黄,20A |
2 | ||
| 99118-62905 |
LS11#,MS11#,RS110 5A,5A,L=30 |
3 | ||
| 99118-62915 |
LS11#,MS11#,RS110 15A,15A |
17 | ||
| 99118-62920 |
LS11#,MS11#,RS110 20A,20A |
2 | ||
| 99118-62910 |
LS11#,MS11#,RS110 10A |
7 | ||
| 99118-62930 |
LS11#,MS11#,RS110 30A |
3 | ||
| 90982-09002 |
GS11#,LS11#,MS11#,RS110 10A,10A |
5 | ||
| 90982-09005 |
GS11#,LS11#,MS11#,RS110 7.5A,7.5A |
1 | ||
| 90982-09003 |
GS11#,LS11#,MS11#,RS110 15A,15A |
13 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GS110,LS110,MS112..ROY,SAL,SDX,SPE 30A,MATSUSHITA |
1 | ||
| 82650-32020 |
GS110,LS110,MS112..ROY,SAL,SDX,SPE 30A,TOKAIRIKA |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29116 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84112-69015 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84112-39095 |
MS112 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-30020 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84118-30030 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30020 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84119-30030 |
GS110,LS110,111,MS112..ROY,SAL,SDX,SPE |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29016 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84140-29095 |
GS11#,LS11#,MS11#..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/*TIS |
1 | ||
| 84140-29016 |
RS110..BTP,DLX,STD;MS110,112,RS110..(4H,4HC)..(ROY,SAL,TAX);LS11#,MS110,117..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84162-30010 |
GS110,LS110,111,MS110,112..CTE,ROY,SAL,SDX,SPE |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-30280 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84310-30281 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84310-30400 |
MS112 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39095 |
GS11#,LS11#,MS11#..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 84332-29016 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-30080 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-27030 |
MS110,112..(4H,4HC)..(ROY,SAL);LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 84450-30140 |
GS11#,LS11#,MS11#..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39035 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84652-39145 |
GS110,LS110,111,MS110,112..(4F,4FC,4HC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 84652-39036 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30140 |
MS112..ROY |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-30140 |
MS112..ROY |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-3002003 |
MS112..4HC NO.2,GRAY,GRAY,TRIM1# |
2 | ||
| 84751-3002004 |
MS112..4HC NO.2,BLUE,BLUE,TRIM8# |
2 | ||
| 84751-3002005 |
MS112..4HC NO.2,BEIGE,BEIGE,TRIM4# |
2 | ||
| 84751-30010 |
MS112..4HC NO.1 |
1 | ||
| 84751A - KNOB, SEAT HEATER SWITCH | ||||
| 84811-30030 |
MS112..4HC |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-30010 |
MS112..4HC |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30120 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-30120 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30050 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) GROVE BOX |
1 | ||
| 84840-30040 |
LS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI) INSTRUMENT UNDER |
1 | ||
| 84840-30041 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) INSTRUMENT UNDER |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30050 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) GROVE BOX |
1 | ||
| 84840-30040 |
LS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI) INSTRUMENT UNDER |
1 | ||
| 84840-30041 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) INSTRUMENT UNDER |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30030 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30040 |
MS112..SED..ROY FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..ROY..4D RR |
2 | ||
| 84920-30050 |
MS112..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30040 |
MS112..ROY..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..SED..ROY RR |
2 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30040 |
MS112..SED..ROY FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..ROY..4D RR |
2 | ||
| 84920-30050 |
MS112..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30040 |
MS112..ROY..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..SED..ROY RR |
2 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84811-30040 |
MS112..4D FR CONTROL RR ROWER SEAT |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84811-30040 |
MS112..4D FR CONTROL RR ROWER SEAT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30280 |
GS110,LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(DLX,ROY,SAL,SDX) RR |
1 | ||
| 85500-30300 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE FR |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30280 |
GS110,LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(DLX,ROY,SAL,SDX) RR |
1 | ||
| 85500-30300 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE FR |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-30310 | ||||
| 90164-50048 | ||||
| 90168-40025 | ||||
| 90170-07002 | ||||
| 90170-10116 | ||||
| 90170-11206 | ||||
| 90170-14005 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90201-07004 | ||||
| 90461-08489 | ||||
| 90461-12202 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-10521 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-55016 | ||||

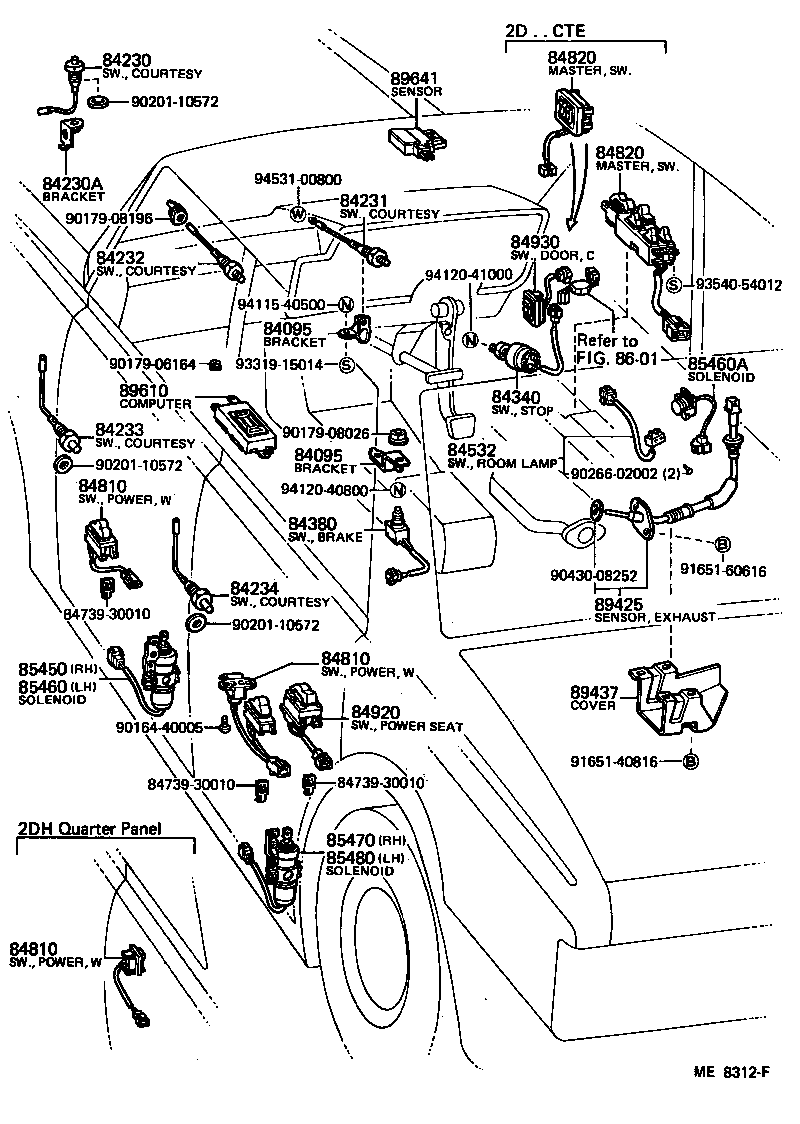

ILLUST NO. 6 OF 8(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-14020 |
LS110,MS110,112,RS110..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84231-30020 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84230A - BRACKET, ENGINE ROOM COURTESY SWITCH | ||||
| 84233-30020 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84550-30021 |
LS117..STD;GS11#,LS110,111,MS11#,RS110..3FC,3H,3HC,4FC,4H,4HC L=210 |
1 | ||
| 84550-30011 |
LS110,MS110,112..ATM L=100 |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-22010 |
GS110,LS110,111,MS110,112,RS110..(SED,WG)..(DLX,ROY,SAL,SDX) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-30080 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84340-22072 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-30010 |
MS112..SED |
1 | ||
| 84532-19015 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84532-14010 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30060 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE FR |
1 | ||
| 84810-30070 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D RR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-30150 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 84820-30190 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH | ||||
| 85450-30280 |
MS110,112..SED..(ROY,SAL) |
1 | ||
| 85450-30281 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-30340 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39016 |
MS110,112..EFI,LPG,TBO |
1 | ||
| 89425-39017 |
GS110,MS110,112..EFI,LPG,TBO,TWC |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-30011 |
GS110,MS110,112,RS110 |
1 | ||
| Common parts | ||||
| 82711-24050 | ||||
| 84739-30010 | ||||
| 90168-40006 | ||||
| 90179-06164 | ||||
| 90179-08196 | ||||
| 90201-10502 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 91656-40816 | ||||
| 93240-16020 | ||||
| 93289-16012 | ||||
| 93315-14014 | ||||
| 93319-15014 | ||||
| 93540-54012 | ||||
| 94115-40500 | ||||
| 94120-41000 | ||||
| 94531-00800 | ||||
ILLUST NO. 7 OF 8(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-30080 |
GS11#,LS11#,MS11#,RS110..4D |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-3002003 |
MS112..4HC NO.2,GRAY,GRAY,TRIM1# |
2 | ||
| 84751-3002004 |
MS112..4HC NO.2,BLUE,BLUE,TRIM8# |
2 | ||
| 84751-3002005 |
MS112..4HC NO.2,BEIGE,BEIGE,TRIM4# |
2 | ||
| 84751-30010 |
MS112..4HC NO.1 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30060 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE FR |
1 | ||
| 84810-30070 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30060 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE FR |
1 | ||
| 84810-30070 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D RR |
2 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30040 |
MS112..SED..ROY FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..ROY..4D RR |
2 | ||
| 84920-30050 |
MS112..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30040 |
MS112..ROY..4D FR CONTROL RR POWER SEAT |
1 | ||
| 84920-30020 |
MS112..SED..ROY RR |
2 | ||
| 85460A - SOLENOID ASSY, LAP BELT | ||||
| 85460-30011 |
MS110..2D;MS112..ROY |
1 | ||
| 85460-30011 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 85460-24010 |
GS110,LS110,111,MS11#..ROY,SAL,SDX,SPE |
1 | ||
| 85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH | ||||
| 85450-30350 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH | ||||
| 85450-30360 |
GS110,LS110,111,MS110,112..SED..(ROY,SAL) |
1 | ||
| 87510 - HEATER ASSY, SEAT | ||||
| 87510-30010 |
MS112..4HC SEAT CUSHION |
2 | ||
| 87510-30020 |
MS112..4HC SEAT BACK |
2 | ||
| 87510 - HEATER ASSY, SEAT | ||||
| 87510-30010 |
MS112..4HC SEAT CUSHION |
2 | ||
| 87510-30020 |
MS112..4HC SEAT BACK |
2 | ||
| 87510 - HEATER ASSY, SEAT | ||||
| 87510-30010 |
MS112..4HC SEAT CUSHION |
2 | ||
| 87510-30020 |
MS112..4HC SEAT BACK |
2 | ||
| 87510 - HEATER ASSY, SEAT | ||||
| 87510-30010 |
MS112..4HC SEAT CUSHION |
2 | ||
| 87510-30020 |
MS112..4HC SEAT BACK |
2 | ||
| Common parts | ||||
| 84739-30010 | ||||
| 90164-40005 | ||||
| 90201-10572 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
