MS112-SEHQF (1981)

Toyota Crown

Production Aug 1981 - Jul 1983
Engine 5MGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )5MGEU

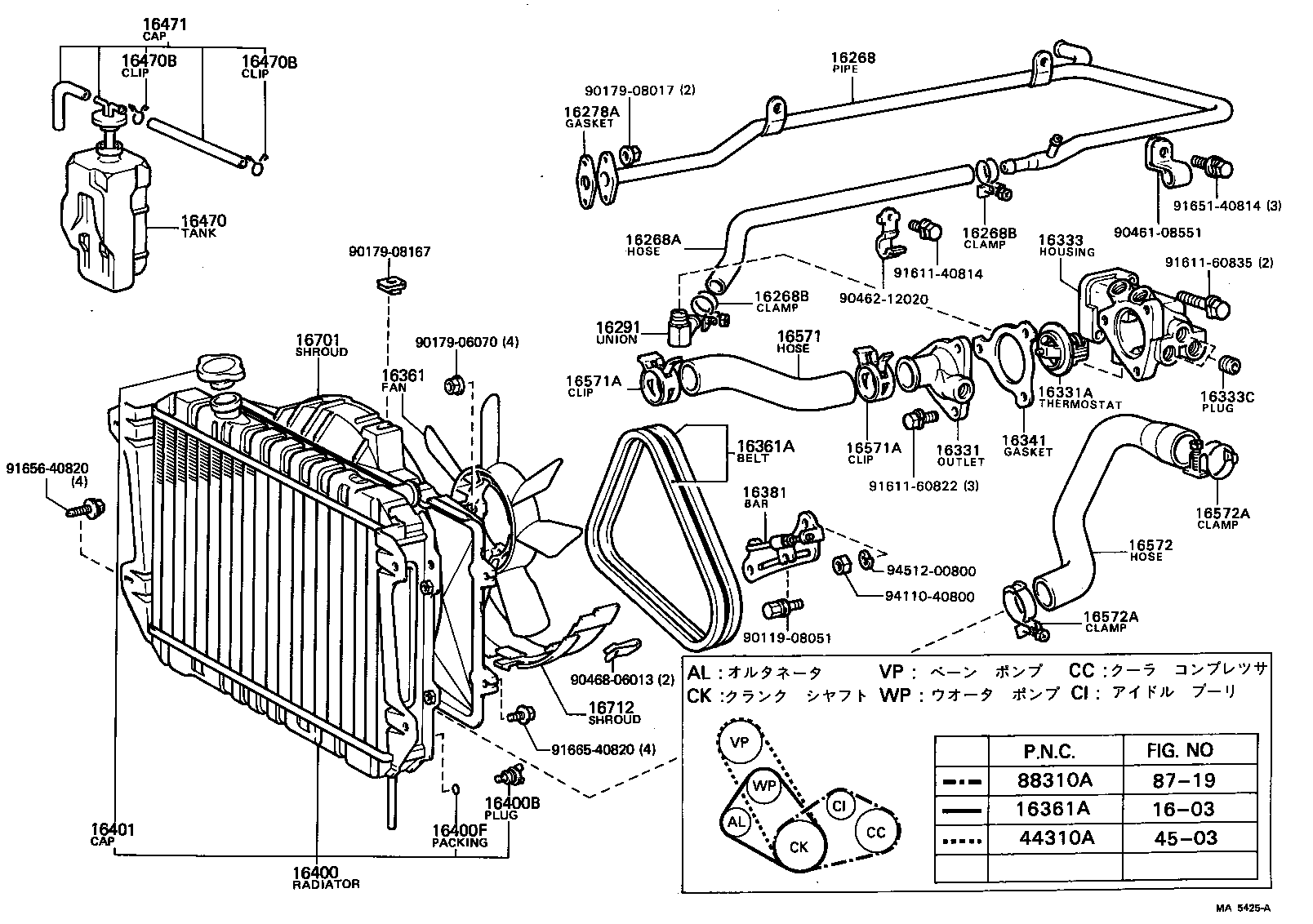

Click highlighted areas on diagram

diagram 1603 16268 16268A 16268B 16268B 16278A 16291 16331 16331A 16333 16333C 16341 16361 16361A 16361A 16381 16400 16400B 16400F 16401 16470 16470B 16470B 16471 16571 16571A 16571A 16572 16572A 16572A 16701 16712 44310A 4503 8719 88310A 9011908051 9017906070 9017908017 9017908167 9046108551 9046212020 9046806013 9161140814 9161160822 9161160835 9165140814 9165640820 9166540820 9411040800 9451200800
Part # Description Qty Price
16268A - HOSE(FOR WATER BY-PASS PIPE)
16267-43010

5MGEU..MS112

 1
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96112-10220

5MGEU..MS112

 2
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96112-10220

5MGEU..MS112

 2
16278A - GASKET, WATER BY-PASS
16347-45010

MEU,MJ,5M#,MTEU,MU..MS11#

 1
16291 - JOINT, WATER HOSE
90404-53032

5MGEU..MS112

 1
16331 - OUTLET, WATER
16331-43010

5MGEU..MS112

 1
16331A - THERMOSTAT
90916-03055

5MGEU..MS112

*WAX 88−100,*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16333-43010

5MGEU..MS112

 1
16333-43011

5MGEU..MS112

 1
16333C - PLUG, W/HEAD TAPER SCREW
90344-53011

5MGEU..MS112

 3
16341 - GASKET, WATER OUTLET
16341-43010

5MGEU..MS112

 1
16361 - FAN
16361-41090

MEU,MJ,5M#,MTEU,MU..MS11#

7 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

MEU,MJ,5M#,MTEU,MU..MS11#

L=925

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

MEU,MJ,5M#,MTEU,MU..MS11#

L=925

 1
16381 - BAR, FAN BELT ADJUSTING
16381-45011

MEU,MJ,5M#,MTEU,MU..MS11#

 1
16400 - RADIATOR ASSY
16400-70050

5M#,MTEU..MS110,112..ATM

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

MEU,5M#,MTEU,MU..MS110,112

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

5M#,MTEU,MU..MS110,112

 1
96710-01007

MEU,5M#,MTEU,MU..MS110,112

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36011

MEU,5M#,MTEU,MU..MS110,112

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-41130

MJ,5M#,MU..MS11#..CBR,EFI,TWC

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

MEU,MJ,5M#,MTEU,MU..MS11#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

MEU,MJ,5M#,MTEU,MU..MS11#

 2
16571 - HOSE, RADIATOR, INLET
16571-43020

5MGEU..MS112

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5MGEU,MTEU..MS110,112

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

5MGEU,MTEU..MS110,112

 2
16572 - HOSE, RADIATOR, OUTLET
16572-43020

5MGEU..MS112

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

MJ,5M#,MTEU,MU..MS11#

ID=46

 4
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

MJ,5M#,MTEU,MU..MS11#

ID=46

 4
16701 - SHROUD SUB-ASSY, FAN
16711-41050

MEU,MJ,5M#,MTEU,MU..MS11#

 1
16712 - SHROUD, FAN, NO.2
16712-41050

MEU,MJ,5M#,MTEU,MU..MS11#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00950

MS110,112..TBO,TWC

 1
Common parts
90119-08051
90179-06070
90179-08017
90179-08167
90461-08551
90462-12020
90468-06013
91611-40814
91611-60822
91611-60835
91651-40814
91656-40820
91665-40820
94110-40800
94512-00800
Linked diagrams
1603
4503
8719
