MS112-SEHQE (1979)
Toyota Crown
ILLUST NO. 2 OF 2(7909- )MS11#,RS110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-30220 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44773-30240 |
MS110,112..EFI |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-30200 |
MS112 W/ESC |
1 | ||
| 44750-30060 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-30200 |
MS112 W/ESC |
1 | ||
| 44750-30060 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-30200 |
MS112 W/ESC |
1 | ||
| 44750-30060 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
MS110,112..ROY,SAL W/ESC |
1 | ||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 90467-16141 |
MS110,112..ROY,SAL W/ESC |
1 | ||
| Common parts | ||||
| 90461-12169 | ||||
| 90461-12170 | ||||
| 90461-12213 | ||||
| 91655-40820 | ||||

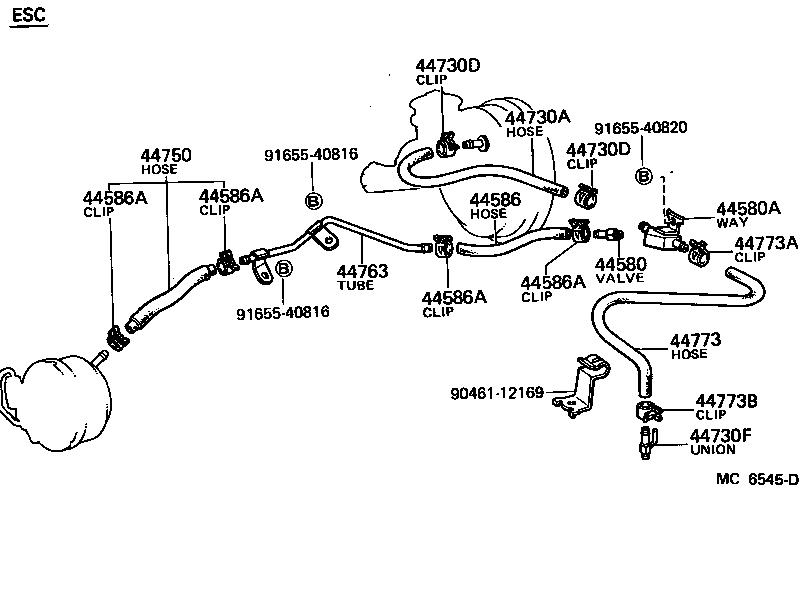

ILLUST NO. 2 OF 2(7909- )MS110,112..ROY,SAL..EFI,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44580 - VALVE ASSY, ACTUATOR CHECK | ||||
| 44580-22030 |
MS110,112..(ROY,SAL)..(EFI,TWC) W/ESC |
1 | ||
| 44580A - WAY, 3, ACTUATOR VACUUM | ||||
| 90413-09018 |
MS110,112..(ROY,SAL)..(EFI,TWC) W/ESC |
1 | ||
| 44586 - HOSE, ACTUATOR VACUUM, NO.1 | ||||
| 95441-09420 |
MS112 W/ESC |
1 | ||
| 90445-17048 |
MS112 W/ESC |
1 | ||
| 90445-17798 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44586A - CLIP(FOR ACTUATOR VACUUM HOSE) | ||||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16141 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16002 |
MS112 W/ESC |
4 | ||
| 44586A - CLIP(FOR ACTUATOR VACUUM HOSE) | ||||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16141 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16002 |
MS112 W/ESC |
4 | ||
| 44586A - CLIP(FOR ACTUATOR VACUUM HOSE) | ||||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16141 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16002 |
MS112 W/ESC |
4 | ||
| 44586A - CLIP(FOR ACTUATOR VACUUM HOSE) | ||||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16141 |
MS110,112..(ROY,SAL)..EFI W/ESC |
4 | ||
| 90467-16002 |
MS112 W/ESC |
4 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-30220 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44773-30240 |
MS110,112..EFI |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS110,112..EFI,TBO |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-30200 |
MS112 W/ESC |
1 | ||
| 44750-30060 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-30040 |
MS112 W/ESC |
1 | ||
| 44763-30030 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44774-30030 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
MS110,112..ROY,SAL W/ESC |
1 | ||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
MS110,112..(ROY,SAL)..EFI W/ESC |
1 | ||
| 90467-16141 |
MS110,112..ROY,SAL W/ESC |
1 | ||
| Common parts | ||||
| 90461-12169 | ||||
| 91655-40816 | ||||
| 91655-40820 | ||||

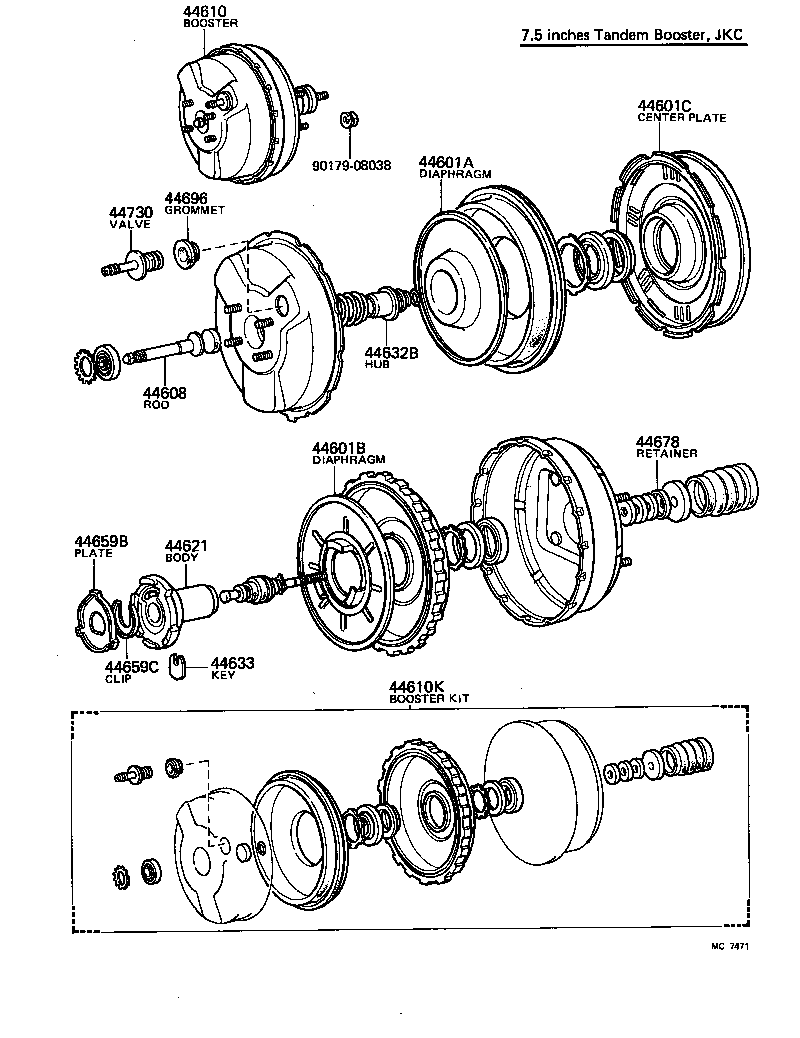

ILLUST NO. 1 OF 2(8010- )MS112
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601A - DIAPHRAGM PLATE SUB-ASSY, BOOSTER, FRONT | ||||
| 44609-30350 |
MS112 JKC |
1 | ||
| 44601B - DIAPHRAGM PLATE SUB-ASSY, BOOSTER, REAR | ||||
| 44601-30350 |
MS112 JKC |
1 | ||
| 44601C - CENTER PLATE SUB-ASSY, BOOSTER | ||||
| 44606-30350 |
MS112 JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-30350 |
MS112 JKC |
1 | ||
| 44606-30340 |
MS112;MS110..TBO AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30340 |
MS112 AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30290 |
MS112 JKC |
1 | ||
| 04443-30280 |
MS112 AISIN |
1 | ||
| 44621 - BODY, BOOSTER VALVE | ||||
| 44673-30350 |
MS112 JKC |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-30350 |
MS112 JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-30350 |
MS112 JKC |
1 | ||
| 44659B - PLATE, BOOSTER RETAINER | ||||
| 44658-30350 |
MS112 JKC |
1 | ||
| 44659C - CLIP, BOOSTER | ||||
| 44659-30350 |
MS112 JKC |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
GS110,MS110,112,RS110..ROY,SAL,STD,TAX JKC |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| 90480-24439 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730-30010 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

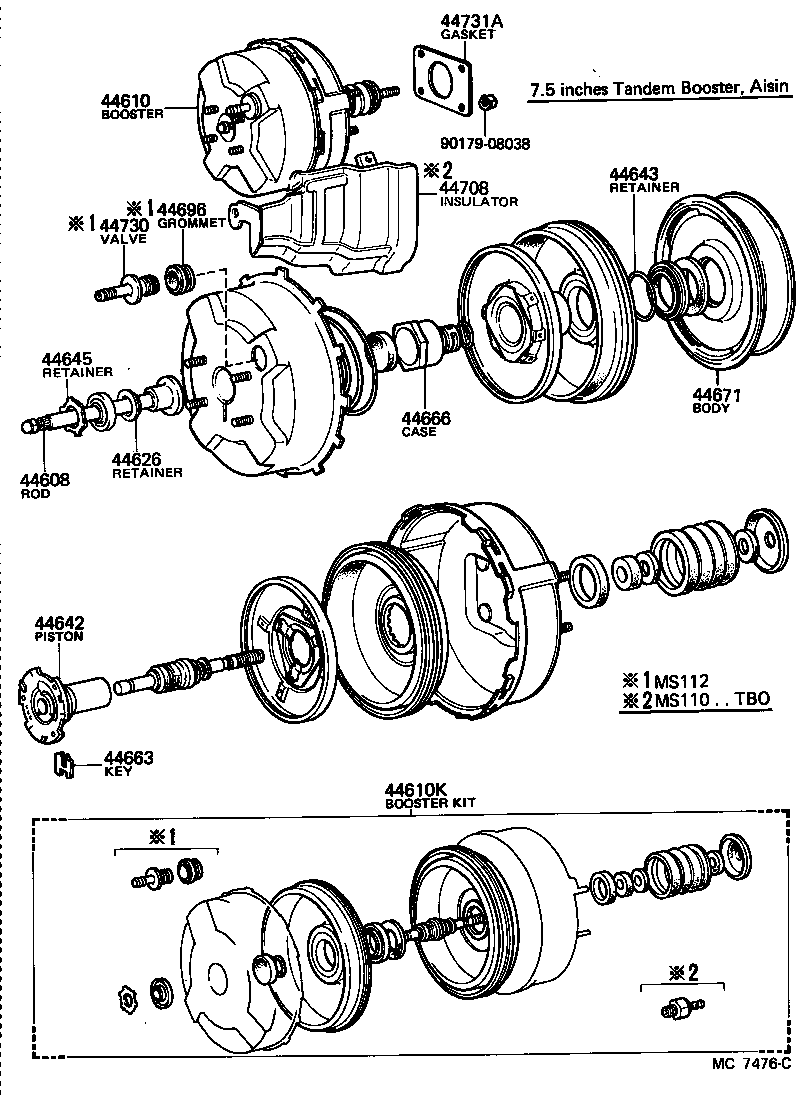

ILLUST NO. 1 OF 2(7909-8010)MS112 ; (8010- )TBO ; (8010- )MS112
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-30350 |
MS112 JKC |
1 | ||
| 44606-30340 |
MS112;MS110..TBO AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30340 |
MS112 AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30290 |
MS112 JKC |
1 | ||
| 04443-30280 |
MS112 AISIN |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
GS11#,LS11#,MS112,117;MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30340 |
MS112;MS110..TBO AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-30340 |
MS112;MS110..TBO AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
MS112 AISIN |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-30340 |
MS112;MS110..TBO AISIN |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-30340 |
MS112;MS110..TBO AISIN |
1 | ||
| 44671 - BODY SUB-ASSY, NO.3 | ||||
| 44607-30340 |
MS112;MS110..TBO AISIN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| 90480-24439 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
GS11#,MS112,117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44730-30010 |
GS110,MS110,112,RS110..(ROY,SAL,STD,TAX)..(CBR,EFI,LPG,TWC) JKC |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
