MS112-SEHGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MS11#..CBR,EFI,LPG,TBO

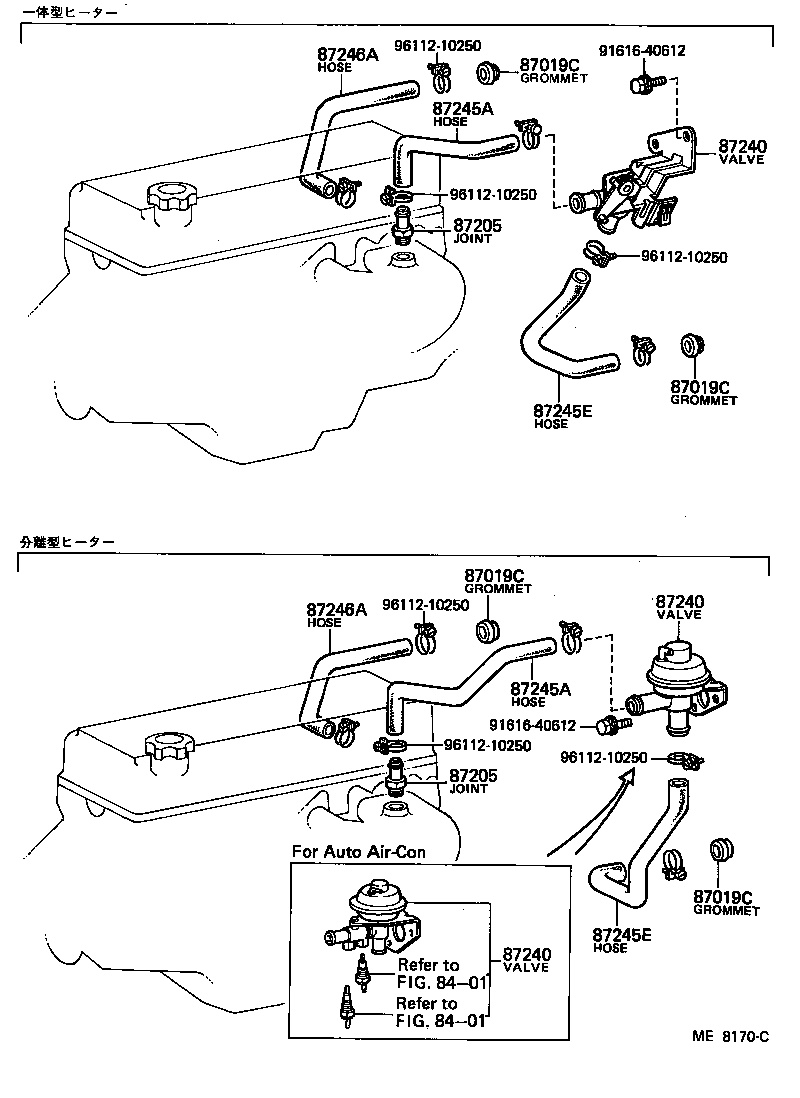

Click highlighted areas on diagram

diagram 8401 8401 87019C 87019C 87019C 87019C 87205 87205 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9161640612 9161640612 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-31007

GS11#,LS11#,MS11#,RS110

HEATER PIPE

 2
87019C - GROMMET, HEATER HOSE
90480-31007

GS11#,LS11#,MS11#,RS110

HEATER PIPE

 2
87019C - GROMMET, HEATER HOSE
90480-31007

GS11#,LS11#,MS11#,RS110

HEATER PIPE

 2
87019C - GROMMET, HEATER HOSE
90480-31007

GS11#,LS11#,MS11#,RS110

HEATER PIPE

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LS11#,MS11#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LS11#,MS11#

 1
87240 - VALVE ASSY, HEATER WATER
87240-30340

MS110,112..ROY,SAL,SDX,SPE

W/*AAC OR *MPAAC

 1
87240-30271

MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
87240 - VALVE ASSY, HEATER WATER
87240-30340

MS110,112..ROY,SAL,SDX,SPE

W/*AAC OR *MPAAC

 1
87240-30271

MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
87240 - VALVE ASSY, HEATER WATER
87240-30340

MS110,112..ROY,SAL,SDX,SPE

W/*AAC OR *MPAAC

 1
87240-30271

MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-30660

MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-30660

MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-30650

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE

W/*SEP

 1
87245E - HOSE, HEATER WATER, INLET E
87245-30650

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE

W/*SEP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-30520

GS11#,MS11#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-30520

GS11#,MS11#

 1
Common parts
91616-40612
96112-10250
Linked diagrams
8401
