MS110G-SWBDS (1980)

Toyota Crown

Production Feb 1980 - Aug 1981
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

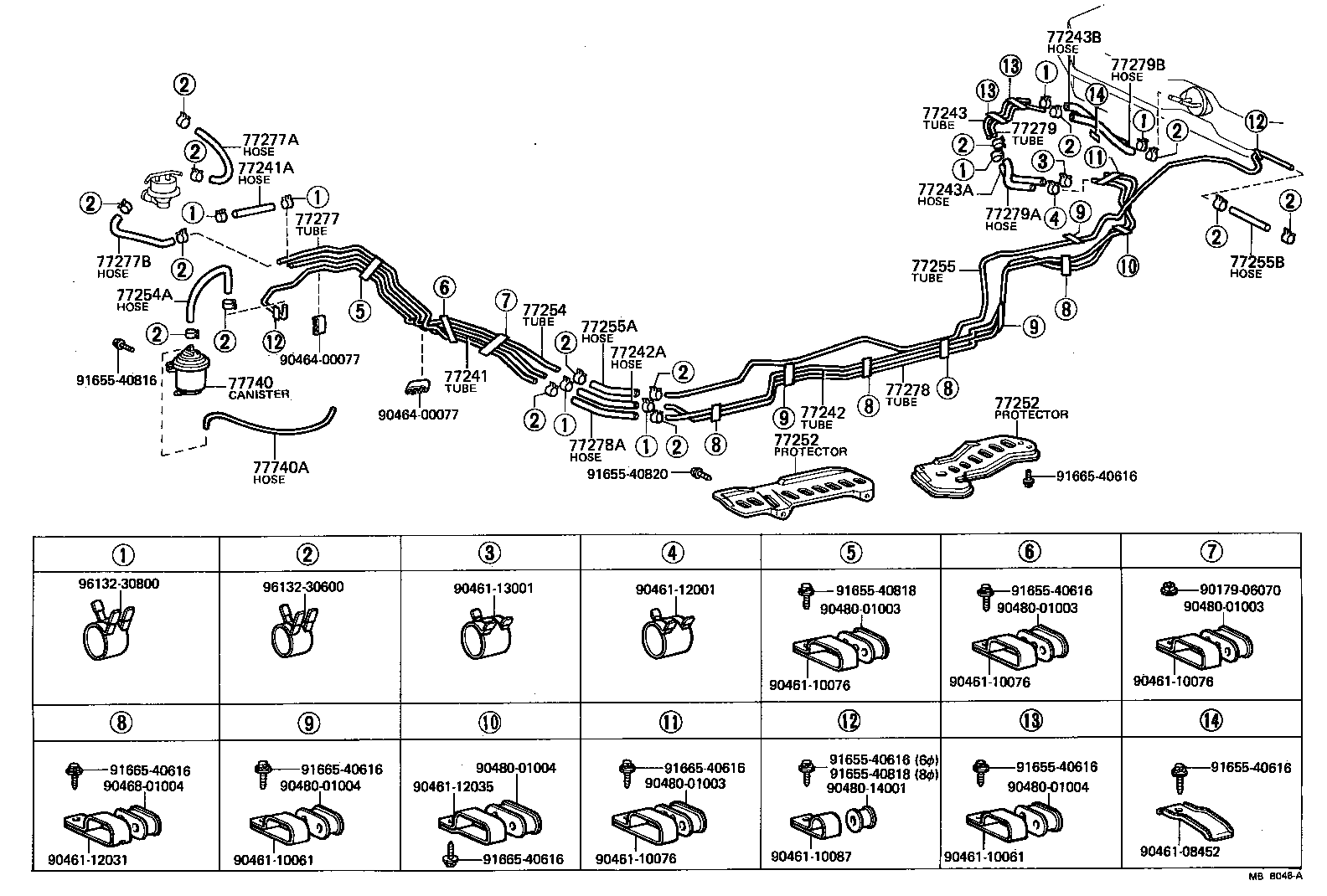

ILLUST NO. 2 OF 2(8002-8108)MS110..WG

Click highlighted areas on diagram

diagram 77241 77241A 77242 77242A 77243 77243A 77243B 77252 77252 77254 77254A 77255 77255A 77255B 77277 77277A 77277B 77278 77278A 77279 77279A 77279B 77740 77740A 9017906070 9046108452 9046110061 9046110061 9046110076 9046110076 9046110076 9046110076 9046110087 9046112001 9046112031 9046112035 9046113001 9046400077 9046400077 9046801004 9048001003 9048001003 9048001003 9048001003 9048001004 9048001004 9048001004 9048014001 9165540616 9165540616 9165540616 9165540616 9165540816 9165540818 9165540818 9165540820 9166540616 9166540616 9166540616 9166540616 9166540616 9613230600 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77252-30110

MS110,117..CBR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

MS110,117..CBR

*H,L=160,内径=7.6

 1
77242 - TUBE, FUEL MAIN, NO.2
77253-30100

LS110,111,MS110..CBR,DSL,TD,TDE

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95335-08020

LS11#,MS110,117..CBR,DSL

L=200

 1
77243 - TUBE, FUEL MAIN, NO.3
77254-31050

LS110,MS110..WG

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

LS110,MS110..WG

*H,L=170,内径=7.6

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77259-91703

LS110,MS110..WG

 1
77252 - PROTECTOR, FUEL TUBE
77266-30030

GS11#,LS11#,MS11#,RS110

FR

 1
77267-30040

GS110,LS110,111,MS110,112,RS110

RR

 1
77252 - PROTECTOR, FUEL TUBE
77266-30030

GS11#,LS11#,MS11#,RS110

FR

 1
77267-30040

GS110,LS110,111,MS110,112,RS110

RR

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-30030

GS11#,MS11#..CBR,EFI,TBO,TWC

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06060

GS11#,MS11#..CBR,EFI,TBO,TWC

*H,L=440

 1
77255 - TUBE, FUEL EMISSION, NO.2
77262-31010

GS110,MS110..WG

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

MS11#

*H,L=170

 1
77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)
95332-06020

GS11#,MS110,117..V,WG

*H,L=130

 1
77277 - TUBE, FUEL RETURN, NO.1
77256-30060

MS110,117..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06040

MS110,117..CBR

*H,L=360

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

MS110,117..CBR

*H,L=280

 1
77278 - TUBE, FUEL RETURN, NO.2
77257-30080

LS110,111,MS110..CBR,DSL,TD,TDE

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-06020

LS11#,MS110,117..CBR,DSL

*H,L=200

 1
77279 - TUBE, FUEL RETURN, NO.3
77258-31030

LS110,MS110..WG

 1
77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3)
95332-06020

LS110,MS110..WG

*H,L=150

 1
77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3)
77279-91703

LS110,MS110..WG

 1
77740 - CANISTER ASSY, CHARCOAL
77740-30070

GS11#,MS11#..CBR,EFI,TBO,TWC

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-08200

MS110,117..CBR

外径=7.5,長さ=1050

 1
Common parts
90179-06070
90461-08452
90461-10061
90461-10076
90461-10087
90461-12001
90461-12031
90461-12035
90461-13001
90464-00077
90468-01004
90480-01003
90480-01004
90480-14001
91655-40616
91655-40816
91655-40818
91655-40820
91665-40616
96132-30600
96132-30800
