MS110G-SWBDS (1980)

Toyota Crown

Production Feb 1980 - Aug 1981
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

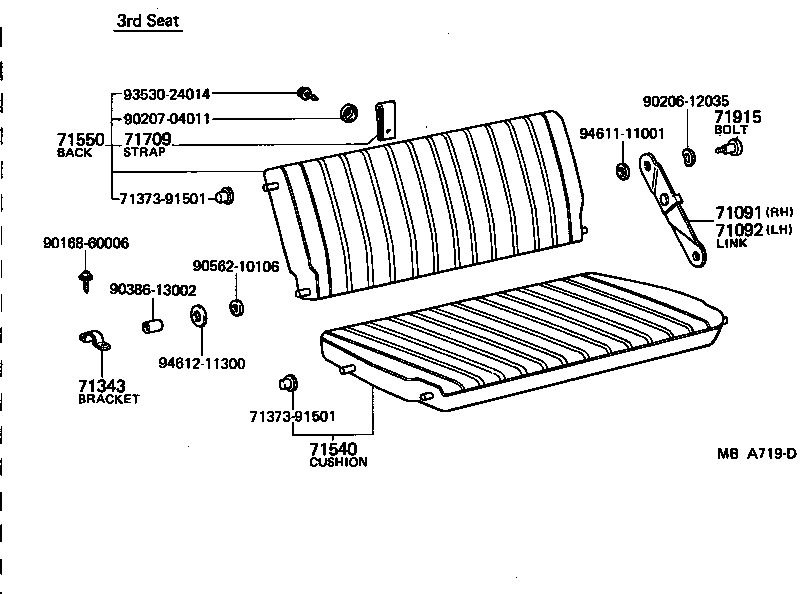

ILLUST NO. 2 OF 2(7909-8108)WG

Click highlighted areas on diagram

diagram 71091 71092 71343 7137391501 7137391501 71540 71550 71709 71915 9016860006 9020612035 9020704011 9038613002 9056210106 9353024014 9461111001 9461211300
Part # Description Qty Price
71091 - LINK SUB-ASSY, 3RD SEAT, RH
72905-91701

GS110,LS110,MS110..WG

 1
71092 - LINK SUB-ASSY, 3RD SEAT, LH
72906-91701

GS110,LS110,MS110..WG

 1
71343 - BRACKET, 3RD SEAT BACK
72955-91701

GS110,LS110,MS110..WG

 4
71540 - CUSHION ASSY, 3RD SEAT
72910-9170105

LS110,MS110..WG

GREIGE,BEIGE,TRIM4#

 1
72910-9170104

LS110,MS110..WG

BLUE,BLUE,TRIM8#

 1
71550 - BACK SUB-ASSY, SIDE SEAT
72940-9170105

LS110,MS110..WG

GREIGE,BEIGE,TRIM4#

 1
72940-9170104

LS110,MS110..WG

BLUE,BLUE,TRIM8#

 1
71709 - STRAP SUB-ASSY, 3RD SEAT BACK
72921-9170104

LS110,MS110..WG

BLUE,BLUE,TRIM8#

 1
72921-9170105

LS110,MS110..WG

GREIGE,BEIGE,TRIM4#

 1
71915 - BOLT, SEAT LINK CONNECTING
90109-10043

GS110,LS110,MS110..WG

 4
Common parts
71373-91501
90168-60006
90206-12035
90207-04011
90386-13002
90562-10106
93530-24014
94611-11001
94612-11300
