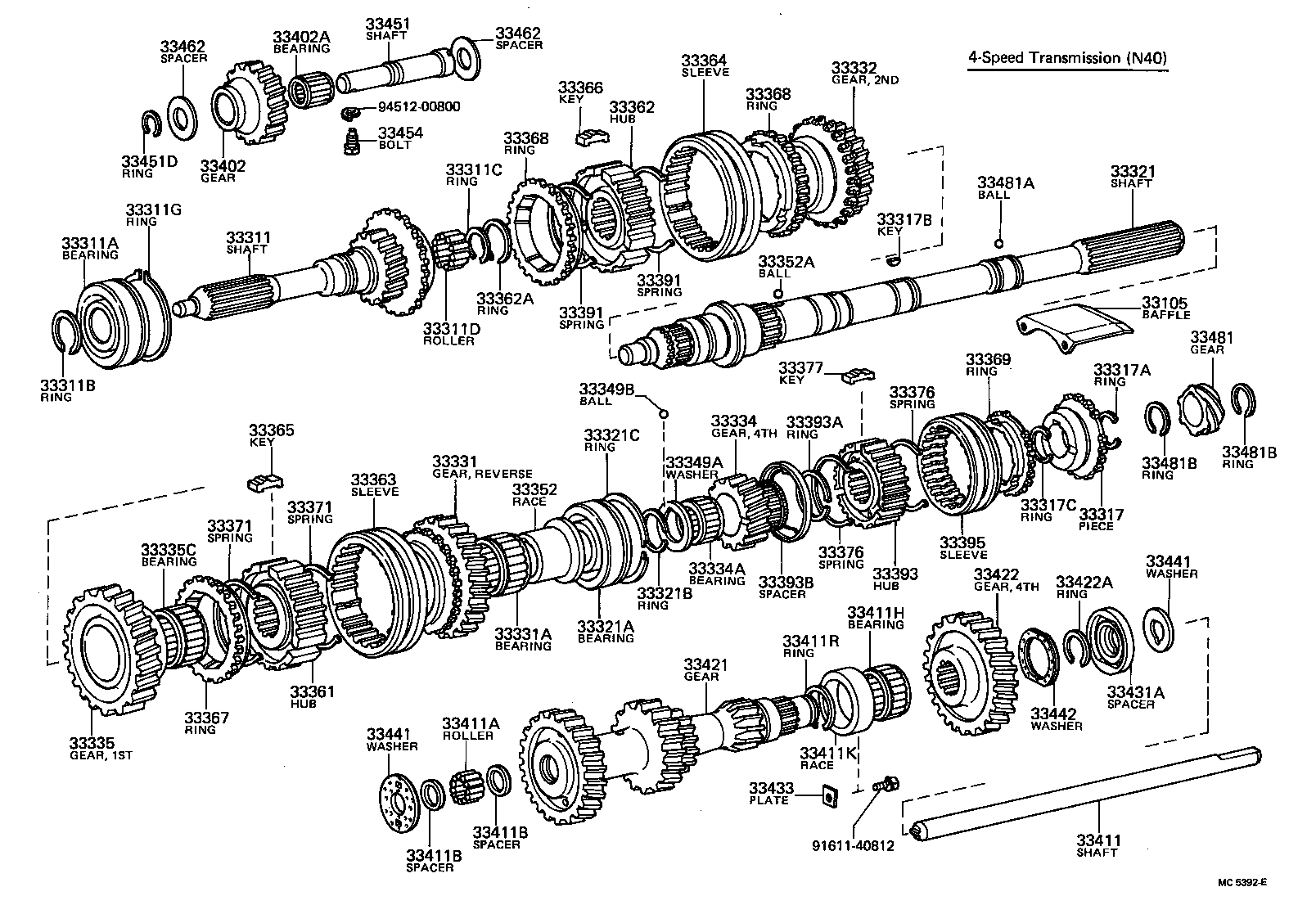

MS110G-SWBDS (1980)
Toyota Crown
(7909-8010)MS110,117,RS110..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105 - BAFFLE SUB-ASSY, EXTENSION HOUSING OIL | ||||
| 33144-30010 |
MS110,117,RS110..4H |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35005 |
MS110,117,RS110..3H,4H |
1 | ||
| 90363-32007 |
LS11#,MS110,117,RS110..3H,4H NACHI |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33169 |
MS110,117,RS110..3H,4H 厚さ=2.10,ﾏｰｸ 2,T=2.10-2.15 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-30005 |
MS110,117,RS110..3H,4H |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
MS110,117,RS110..3H,4H |
12 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-68183 |
MS110,117,RS110..3H,4H |
1 | ||
| 90520-71221 |
LS11#,MS11#,RS110..MTM |
1 | ||
| 33317 - PIECE, GEAR SPLINE, NO.4 | ||||
| 33317-30011 |
MS110,117,RS110..4H |
1 | ||
| 33317A - RING, SHAFT SNAP(FOR SPLINE PIECE NO.4) | ||||
| 90520-26006 |
MS110,117,RS110..4H T=2.375-2.425 |
1 | ||
| 90520-26018 |
MS110,117,RS110..4H T=2.225-2.275 |
1 | ||
| 90520-26017 |
MS110,117,RS110..4H T=2.275-2.325 |
1 | ||
| 90520-26019 |
MS110,117,RS110..4H T=2.425-2.475 |
1 | ||
| 90520-26016 |
MS110,117,RS110..4H T=2.325-2.375 |
1 | ||
| 33317B - KEY, WOODRUFF(FOR GEAR SPLINE PIECE NO.4) | ||||
| 90280-07001 |
MS110,117,RS110..4H |
1 | ||
| 33317C - RING, SHAFT SNAP(FOR SPLINE PIECE NO.4 FRONT) | ||||
| 90520-26006 |
MS110,117,RS110..4H |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-30091 |
MS110,117,RS110..4H |
1 | ||
| 33321-30110 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-30012 |
MS110,117,RS110..3H,4H |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28005 |
MS110,117,RS110..3H,4H T=2.15-2.20 |
1 | ||
| 90520-28008 |
MS110,117,RS110..3H,4H T=2.45-2.50 |
1 | ||
| 90520-28003 |
MS110,117,RS110..3H,4H T=1.95-2.00 |
1 | ||
| 90520-28004 |
MS110,117,RS110..3H,4H T=2.05-2.10 |
1 | ||
| 90520-28007 |
MS110,117,RS110..3H,4H T=2.35-2.40 |
1 | ||
| 90520-28002 |
MS110,117,RS110..3H,4H T=1.85-1.90 |
1 | ||
| 90520-28006 |
MS110,117,RS110..3H,4H T=2.25-2.30 |
1 | ||
| 90520-25278 |
LS11#,MS110,117,RS110..3H,4H T=1.95-2.00 |
1 | ||
| 90520-25270 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.43−2.48,ﾏｰｸ 10,T=2.43-2.48 |
1 | ||
| 90520-25280 |
LS11#,MS110,117,RS110..3H,4H T=2.07-2.12 |
1 | ||
| 90520-25281 |
LS11#,MS110,117,RS110..3H,4H T=2.13-2.18 |
1 | ||
| 90520-25277 |
LS11#,MS110,117,RS110..3H,4H T=1.84-1.94 |
1 | ||
| 90520-25271 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.49−2.54,ﾏｰｸ 11,T=2.49-2.54 |
1 | ||
| 90520-25279 |
LS11#,MS110,117,RS110..3H,4H T=2.01-2.06 |
1 | ||
| 90520-25285 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.37−2.42,ﾏｰｸ 9,T=2.37-2.42 |
1 | ||
| 90520-25284 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.31−2.36,ﾏｰｸ 8,T=2.31-2.36 |
1 | ||
| 90520-25283 |
LS11#,MS110,117,RS110..3H,4H T=2.25-2.30 |
1 | ||
| 90520-25282 |
LS11#,MS110,117,RS110..3H,4H T=2.19-2.24 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-68193 |
MS110,117,RS110..3H,4H |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-30010 |
MS110,117,RS110..3H,4H N=31 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-38034 |
MS110,117,RS110..3H,4H |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-30010 |
MS110,117,RS110..3H,4H N=25 |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33334-30012 |
MS110,117,RS110..4H |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-28002 |
MS110,117,RS110..4H |
2 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-30010 |
MS110,117,RS110..3H,4H N=32 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38034 |
MS110,117,RS110..3H,4H |
1 | ||
| 33349A - WASHER, 4TH GEAR | ||||
| 33349-30010 |
MS110,117,RS110..4H |
1 | ||
| 33349B - BALL (FOR 4TH GEAR WASHER) | ||||
| 90360-06004 |
MS110,117,RS110..4H |
1 | ||
| 33352 - RACE, REVERSE GEAR BEARING INNER | ||||
| 33344-20010 |
MS110,117,RS110..3H,4H |
1 | ||
| 33352A - KEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
MS110,117,RS110..3H,4H |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33361-20020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-30030 |
MS110,117,RS110..3H,4H |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-30215 |
MS110,117,RS110..3H,4H 厚さ=2.10,ﾏｰｸ 1,T=2.10-2.15 |
1 | ||
| 90520-30219 |
MS110,117,RS110..3H,4H 厚さ=2.30,ﾏｰｸ 5,T=2.30-2.35 |
1 | ||
| 90520-30217 |
MS110,117,RS110..3H,4H 厚さ=2.20,ﾏｰｸ 3,T=2.20-2.25 |
1 | ||
| 90520-30216 |
MS110,117,RS110..3H,4H 厚さ=2.15,ﾏｰｸ 2,T=2.15-2.20 |
1 | ||
| 90520-30218 |
MS110,117,RS110..3H,4H 厚さ=2.25,ﾏｰｸ 4,T=2.25-2.30 |
1 | ||
| 90520-30239 |
MS110,117,RS110..3H,4H 厚さ=2.35,ﾏｰｸ 6,T=2.35-2.40 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33364-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-30010 |
MS110,117,RS110..3H,4H |
1 | ||
| 33364-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-30040 |
MS110,117..4H..(CBR,EFI) |
3 | ||
| 33365-20040 |
MS110,117,RS110..3H,4H |
3 | ||
| 33365-30040 |
MS110,117,RS110..3H,4H |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-30030 |
MS110,117,RS110..3H,4H |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-30040 |
MS110,117,RS110..3H,4H |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
GS11#,LS11#,MS11#,RS110..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
GS11#,LS11#,MS11#,RS110..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-30070 |
MS110,117,RS110..4H |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33371-14031 |
MS110,117,RS110..3H,4H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33371-14031 |
MS110,117,RS110..3H,4H |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-30010 |
MS110,117,RS110..4H |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-30010 |
MS110,117,RS110..4H |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33365-12010 |
MS110,117,RS110..4H |
3 | ||
| 33365-12011 |
MS110,117,RS110..4H |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-30012 |
MS110,117,RS110..4H |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-41002 |
MS110,117,RS110..4H |
1 | ||
| 33393B - SPACER (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 33385-30010 |
MS110,117,RS110..4H |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14010 |
LS11#,MS110,117,RS110..4H |
1 | ||
| 33395-30010 |
MS110,117,RS110..4H |
1 | ||
| 33395-14012 |
LS11#,MS110,117,RS110..4H |
1 | ||
| 33395-30011 |
MS110,117,RS110..4H |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-20021 |
MS110,117,RS110..3H,4H N=19 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28005 |
LS11#,MS110,117,RS110..3H,4H KOYO |
1 | ||
| 90364-19037 |
MS110,117,RS110..3H,4H |
1 | ||
| 33411 - COUNTERSHAFT | ||||
| 33411-30030 |
MS110,117,RS110..3H,4H |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90361-03002 |
MS110,117,RS110..3H,4H |
21 | ||
| 33411B - SPACER(FOR COUNTER GEAR BEARING) | ||||
| 90560-18002 |
MS110,117,RS110..3H,4H |
2 | ||
| 33411B - SPACER(FOR COUNTER GEAR BEARING) | ||||
| 90560-18002 |
MS110,117,RS110..3H,4H |
2 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90364-39001 |
MS110,117,RS110..3H,4H |
1 | ||
| 33411K - RACE, COUNTER BEARING OUTER(FOR REAR) | ||||
| 33437-30010 |
MS110,117,RS110..3H,4H |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-37001 |
MS110,117,RS110..3H,4H |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33401-30030 |
MS110,117,RS110..3H,4H N=30,24,15,12 |
1 | ||
| 33422 - GEAR, COUNTER SHAFT 4TH SPEED | ||||
| 33422-30011 |
MS110,117,RS110..4H |
1 | ||
| 33422A - RING, SHAFT SNAP (FOR COUNTER SHAFT GEAR) | ||||
| 90520-25279 |
MS110,117,RS110..3H,4H T=2.01-2.06 |
1 | ||
| 90520-25278 |
MS110,117,RS110..3H,4H T=1.95-2.00 |
1 | ||
| 90520-25282 |
MS110,117,RS110..3H,4H T=2.19-2.24 |
1 | ||
| 90520-25281 |
MS110,117,RS110..3H,4H T=2.13-2.18 |
1 | ||
| 90520-25280 |
MS110,117,RS110..3H,4H T=2.07-2.12 |
1 | ||
| 90520-25283 |
MS110,117,RS110..3H,4H T=2.25-2.30 |
1 | ||
| 33431A - SPACER, COUNTER GEAR, NO.2 | ||||
| 33431-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33433 - PLATE, COUNTER GEAR REAR BEARING LOCK | ||||
| 33433-30010 |
MS110,117,RS110..3H,4H |
1 | ||
| 33441 - WASHER, COUNTER GEAR SIDE THRUST, NO.1 | ||||
| 33441-30170 |
MS110,117,RS110..3H,4H FR,T=1.90-2.00 |
1 | ||
| 33441-30220 |
MS110,117,RS110..3H,4H RR,T=2.90-2.95 |
1 | ||
| 33441-30250 |
MS110,117,RS110..3H,4H RR,T=3.35-3.40 |
1 | ||
| 33441-30240 |
MS110,117,RS110..3H,4H RR,T=3.20-3.25 |
1 | ||
| 33441-30210 |
MS110,117,RS110..3H,4H RR,T=2.75-2.80 |
1 | ||
| 33441-30230 |
MS110,117,RS110..3H,4H RR,T=3.05-3.10 |
1 | ||
| 33441-30200 |
MS110,117,RS110..3H,4H RR,T=2.60-2.65 |
1 | ||
| 33441-30190 |
MS110,117,RS110..3H,4H RR,T=2.45-2.50 |
1 | ||
| 33441-30180 |
MS110,117,RS110..3H,4H RR,T=2.30-2.35 |
1 | ||
| 33441 - WASHER, COUNTER GEAR SIDE THRUST, NO.1 | ||||
| 33441-30170 |
MS110,117,RS110..3H,4H FR,T=1.90-2.00 |
1 | ||
| 33441-30220 |
MS110,117,RS110..3H,4H RR,T=2.90-2.95 |
1 | ||
| 33441-30250 |
MS110,117,RS110..3H,4H RR,T=3.35-3.40 |
1 | ||
| 33441-30240 |
MS110,117,RS110..3H,4H RR,T=3.20-3.25 |
1 | ||
| 33441-30210 |
MS110,117,RS110..3H,4H RR,T=2.75-2.80 |
1 | ||
| 33441-30230 |
MS110,117,RS110..3H,4H RR,T=3.05-3.10 |
1 | ||
| 33441-30200 |
MS110,117,RS110..3H,4H RR,T=2.60-2.65 |
1 | ||
| 33441-30190 |
MS110,117,RS110..3H,4H RR,T=2.45-2.50 |
1 | ||
| 33441-30180 |
MS110,117,RS110..3H,4H RR,T=2.30-2.35 |
1 | ||
| 33442 - WASHER, COUNTER GEAR SIDE THRUST, NO.2 | ||||
| 33442-30030 |
MS110,117,RS110..3H,4H |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30030 |
MS110,117,RS110..3H,4H |
1 | ||
| 33451D - RING, SHAFT SNAP (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90520-17001 |
MS110,117,RS110..3H,4H |
1 | ||
| 33454 - BOLT, SHAFT RETAINING | ||||
| 33454-20010 |
MS110,117,RS110..3H,4H |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-30010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-30010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-20070 |
LS117,MS110,117,RS110..4H 歯数=5,ﾏｰｸ 5X17−19,N=5 |
1 | ||
| 33481-20070 |
MS110,117,RS110..4H..(BTP,DLX,SAL,SDX,STD) 歯数=5,ﾏｰｸ 5X17−19,N=5 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
LS11#,MS11#,RS110..MTM |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LS11#,MS11#,RS110..MTM 厚さ=1.50,外径=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LS11#,MS11#,RS110..MTM 厚さ=1.50,外径=31.3 |
2 | ||
| Common parts | ||||
| 91611-40812 | ||||
| 94512-00800 | ||||
(8010- )4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33046A - BEARING(FOR COUNTERSHAFT 4TH GEAR) | ||||
| 90364-26001 |
LS11#,MS110,117,RS110..4H KOYO |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35005 |
MS110,117,RS110..3H,4H |
1 | ||
| 90363-32007 |
LS11#,MS110,117,RS110..3H,4H NACHI |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33169 |
MS110,117,RS110..3H,4H 厚さ=2.10,ﾏｰｸ 2,T=2.10-2.15 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-30005 |
MS110,117,RS110..3H,4H |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
MS110,117,RS110..3H,4H |
12 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-68183 |
MS110,117,RS110..3H,4H |
1 | ||
| 90520-71221 |
LS11#,MS11#,RS110..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-30091 |
MS110,117,RS110..4H |
1 | ||
| 33321-30110 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-30012 |
MS110,117,RS110..3H,4H |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28005 |
MS110,117,RS110..3H,4H T=2.15-2.20 |
1 | ||
| 90520-28008 |
MS110,117,RS110..3H,4H T=2.45-2.50 |
1 | ||
| 90520-28003 |
MS110,117,RS110..3H,4H T=1.95-2.00 |
1 | ||
| 90520-28004 |
MS110,117,RS110..3H,4H T=2.05-2.10 |
1 | ||
| 90520-28007 |
MS110,117,RS110..3H,4H T=2.35-2.40 |
1 | ||
| 90520-28002 |
MS110,117,RS110..3H,4H T=1.85-1.90 |
1 | ||
| 90520-28006 |
MS110,117,RS110..3H,4H T=2.25-2.30 |
1 | ||
| 90520-25278 |
LS11#,MS110,117,RS110..3H,4H T=1.95-2.00 |
1 | ||
| 90520-25270 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.43−2.48,ﾏｰｸ 10,T=2.43-2.48 |
1 | ||
| 90520-25280 |
LS11#,MS110,117,RS110..3H,4H T=2.07-2.12 |
1 | ||
| 90520-25281 |
LS11#,MS110,117,RS110..3H,4H T=2.13-2.18 |
1 | ||
| 90520-25277 |
LS11#,MS110,117,RS110..3H,4H T=1.84-1.94 |
1 | ||
| 90520-25271 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.49−2.54,ﾏｰｸ 11,T=2.49-2.54 |
1 | ||
| 90520-25279 |
LS11#,MS110,117,RS110..3H,4H T=2.01-2.06 |
1 | ||
| 90520-25285 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.37−2.42,ﾏｰｸ 9,T=2.37-2.42 |
1 | ||
| 90520-25284 |
LS11#,MS110,117,RS110..3H,4H 厚さ=2.31−2.36,ﾏｰｸ 8,T=2.31-2.36 |
1 | ||
| 90520-25283 |
LS11#,MS110,117,RS110..3H,4H T=2.25-2.30 |
1 | ||
| 90520-25282 |
LS11#,MS110,117,RS110..3H,4H T=2.19-2.24 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-68193 |
MS110,117,RS110..3H,4H |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-30010 |
MS110,117,RS110..3H,4H N=31 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-38034 |
MS110,117,RS110..3H,4H |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-30010 |
MS110,117,RS110..3H,4H N=25 |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33334-30012 |
MS110,117,RS110..4H |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-30010 |
MS110,117,RS110..3H,4H N=32 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38034 |
MS110,117,RS110..3H,4H |
1 | ||
| 33349A - WASHER, 4TH GEAR | ||||
| 33349-30010 |
MS110,117,RS110..4H |
1 | ||
| 33349B - BALL (FOR 4TH GEAR WASHER) | ||||
| 90360-06004 |
MS110,117,RS110..4H |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33361-20020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-30030 |
MS110,117,RS110..3H,4H |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-30215 |
MS110,117,RS110..3H,4H 厚さ=2.10,ﾏｰｸ 1,T=2.10-2.15 |
1 | ||
| 90520-30219 |
MS110,117,RS110..3H,4H 厚さ=2.30,ﾏｰｸ 5,T=2.30-2.35 |
1 | ||
| 90520-30217 |
MS110,117,RS110..3H,4H 厚さ=2.20,ﾏｰｸ 3,T=2.20-2.25 |
1 | ||
| 90520-30216 |
MS110,117,RS110..3H,4H 厚さ=2.15,ﾏｰｸ 2,T=2.15-2.20 |
1 | ||
| 90520-30218 |
MS110,117,RS110..3H,4H 厚さ=2.25,ﾏｰｸ 4,T=2.25-2.30 |
1 | ||
| 90520-30239 |
MS110,117,RS110..3H,4H 厚さ=2.35,ﾏｰｸ 6,T=2.35-2.40 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33364-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-30010 |
MS110,117,RS110..3H,4H |
1 | ||
| 33364-30020 |
MS110,117,RS110..3H,4H |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-30040 |
MS110,117..4H..(CBR,EFI) |
3 | ||
| 33365-20040 |
MS110,117,RS110..3H,4H |
3 | ||
| 33365-30040 |
MS110,117,RS110..3H,4H |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-30030 |
MS110,117,RS110..3H,4H |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-30040 |
MS110,117,RS110..3H,4H |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-30040 |
MS110,117,RS110..3H,4H |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
GS11#,LS11#,MS11#,RS110..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
GS11#,LS11#,MS11#,RS110..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-30070 |
MS110,117,RS110..4H |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33371-14031 |
MS110,117,RS110..3H,4H |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33371-14031 |
MS110,117,RS110..3H,4H |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-30010 |
MS110,117,RS110..4H |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-30010 |
MS110,117,RS110..4H |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33365-12010 |
MS110,117,RS110..4H |
3 | ||
| 33365-12011 |
MS110,117,RS110..4H |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14010 |
LS11#,MS110,117,RS110..4H |
1 | ||
| 33395-30010 |
MS110,117,RS110..4H |
1 | ||
| 33395-14012 |
LS11#,MS110,117,RS110..4H |
1 | ||
| 33395-30011 |
MS110,117,RS110..4H |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-20021 |
MS110,117,RS110..3H,4H N=19 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28005 |
LS11#,MS110,117,RS110..3H,4H KOYO |
1 | ||
| 90364-19037 |
MS110,117,RS110..3H,4H |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90361-03002 |
MS110,117,RS110..3H,4H |
21 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90364-39001 |
MS110,117,RS110..3H,4H |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31001 |
LS11#,MS110,117,RS110..3H,4H NSK |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-37001 |
MS110,117,RS110..3H,4H |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33401-30030 |
MS110,117,RS110..3H,4H N=30,24,15,12 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-30030 |
MS110,117,RS110..3H,4H |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-30010 |
MS110,117,RS110..3H,4H |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-20070 |
LS117,MS110,117,RS110..4H 歯数=5,ﾏｰｸ 5X17−19,N=5 |
1 | ||
| 33481-20070 |
MS110,117,RS110..4H..(BTP,DLX,SAL,SDX,STD) 歯数=5,ﾏｰｸ 5X17−19,N=5 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
LS11#,MS11#,RS110..MTM |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LS11#,MS11#,RS110..MTM 厚さ=1.50,外径=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LS11#,MS11#,RS110..MTM 厚さ=1.50,外径=31.3 |
2 | ||
| Common parts | ||||
| 91611-40820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
