MS110G-SWBDS (1980)

Toyota Crown

Production Feb 1980 - Aug 1981
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

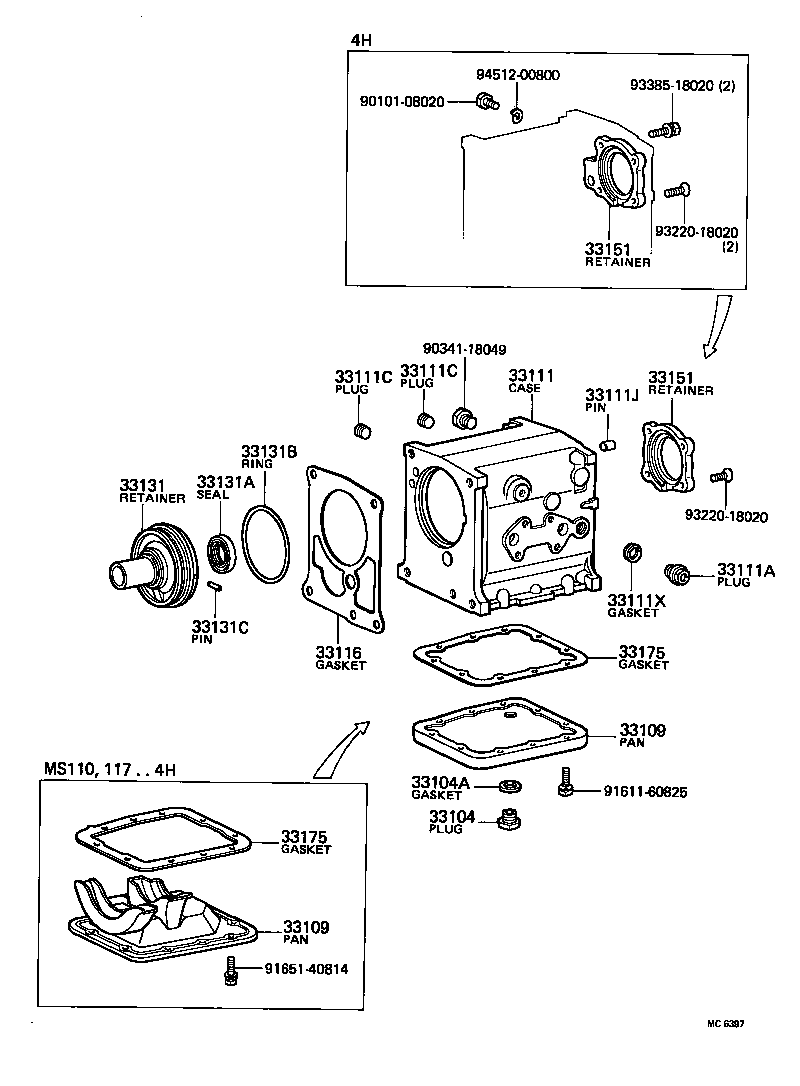

ILLUST NO. 2 OF 2(7909-8010)MS110,117,RS110..3H,4H

Click highlighted areas on diagram

diagram 33104 33104A 33109 33109 33111 33111A 33111C 33111C 33111J 33111X 33116 33131 33131A 33131B 33131C 33151 33151 33175 33175 9010108020 9034118049 9161160825 9165140814 9322018020 9322018020 9338518020 9451200800
Part # Description Qty Price
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GS11#,LS11#,MS11#,RS110..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LS11#,MS11#,RS110..MTM

 1
33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33109-30020

MS110,117..4H..(CBR,EFI)

 1
33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33109-30020

MS110,117..4H..(CBR,EFI)

 1
33111 - CASE, MANUAL TRANSMISSION
33111-30091

MS110,117..4H

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GS11#,LS11#,MS11#,RS110..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015

MS110,117,RS110..3H,4H

 4
90331-14004

LS11#,MS110,117,RS110..3H,4H

外径=14

 4
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015

MS110,117,RS110..3H,4H

 4
90331-14004

LS11#,MS110,117,RS110..3H,4H

外径=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12216

MS110,117,RS110..3H,4H

長さ=14,外径=12

 2
90250-12002

LS11#,MS110,117,RS110..3H,4H

長さ=16,外径=12

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LS11#,MS11#,RS110..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20050

MS110,117,RS110..3H,4H

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-30040

MS110,117,RS110..3H,4H

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32106

MS110,117,RS110..3H,4H

 1
33131B - RING, O(FOR TRANSMISSION FRONT BEARING RETAINER)
90301-99014

MS110,117,RS110..3H,4H

 1
33131C - PIN, SLOTTED SPRING(FOR TRANSMISSION FRONT BEARING RETA
90254-05005

MS110,117,RS110..3H,4H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30020

MS110,117,RS110..4H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30020

MS110,117,RS110..4H

 1
33175 - GASKET, MANUAL TRANSMISSION OIL PAN
33175-30010

MS110,117..4H..(CBR,EFI)

 1
33175 - GASKET, MANUAL TRANSMISSION OIL PAN
33175-30010

MS110,117..4H..(CBR,EFI)

 1
Common parts
90101-08020
90341-18049
91611-60825
91651-40814
93220-18020
93385-18020
94512-00800

ILLUST NO. 2 OF 2(8010- )3H,4H

Click highlighted areas on diagram

diagram 33104 33104A 33111 33111A 33111C 33111C 33111J 33111J 33111U 33111U 33111X 33131 33131A 33132 33138 33144 33151 9011908213 9011908274 9033407007 9034118049
Part # Description Qty Price
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GS11#,LS11#,MS11#,RS110..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LS11#,MS11#,RS110..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-30091

MS110,117..4H

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GS11#,LS11#,MS11#,RS110..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015

MS110,117,RS110..3H,4H

 4
90331-14004

LS11#,MS110,117,RS110..3H,4H

外径=14

 4
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015

MS110,117,RS110..3H,4H

 4
90331-14004

LS11#,MS110,117,RS110..3H,4H

外径=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12216

MS110,117,RS110..3H,4H

長さ=14,外径=12

 2
90250-12002

LS11#,MS110,117,RS110..3H,4H

長さ=16,外径=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12216

MS110,117,RS110..3H,4H

長さ=14,外径=12

 2
90250-12002

LS11#,MS110,117,RS110..3H,4H

長さ=16,外径=12

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LS11#,MS11#,RS110..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-30040

MS110,117,RS110..3H,4H

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32106

MS110,117,RS110..3H,4H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30020

MS110,117,RS110..4H

 1
Common parts
90119-08213
90119-08274
90334-07007
90341-18049
