MS110G-SWBDS (1980)
Toyota Crown
Production
Feb 1980
-
Aug 1981
Engine
MU
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909-8010)L

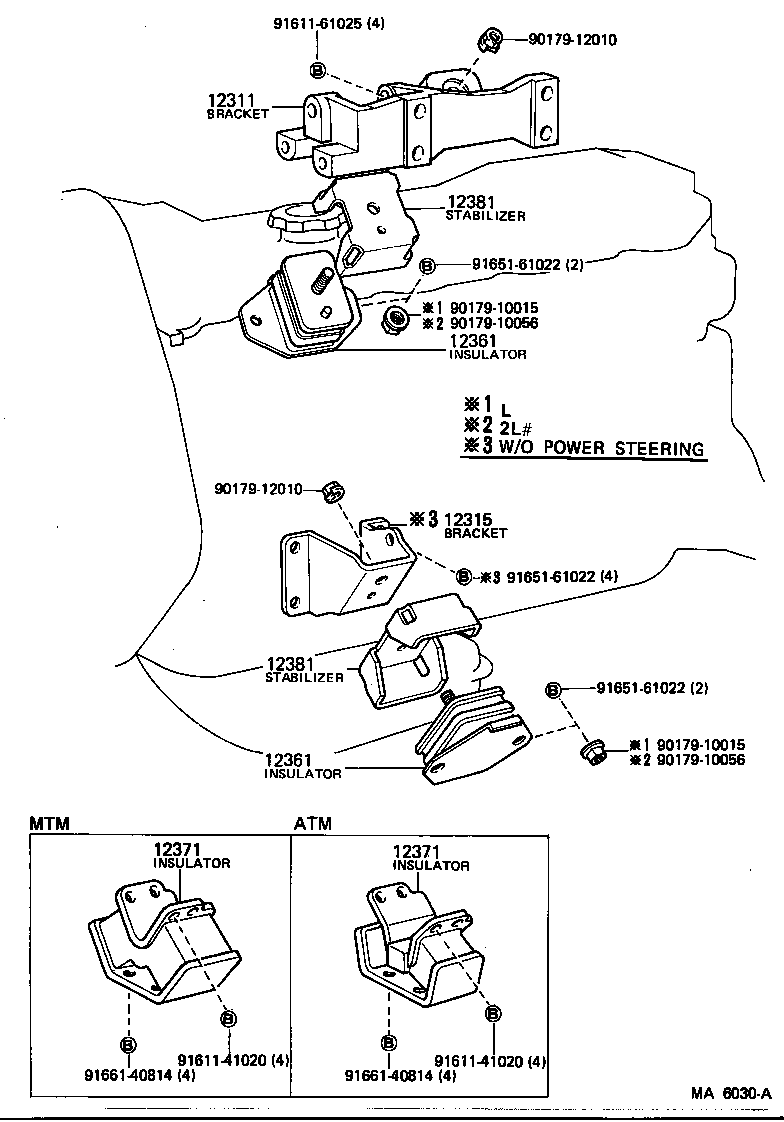

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-41060 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-41050 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-49026 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-49026 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-49026 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-49026 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-41070 |
MEU,MJ,MTEU,MU..MS110,117 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-41070 |
MEU,MJ,MTEU,MU..MS110,117 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-41070 |
MEU,MJ,MTEU,MU..MS110,117 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-41020 | ||||
| 91611-41022 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 91661-40814 | ||||
| 91661-41016 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
(8010- )L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-41060 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-41050 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-49026 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-49026 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-41070 |
MEU,MJ,MTEU,MU..MS110,117 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-41070 |
MEU,MJ,MTEU,MU..MS110,117 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 90179-10056 | ||||
| 90179-12010 | ||||
| 91611-41020 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 91661-40814 | ||||
