MS110-STNGE (1979)
Toyota Crown

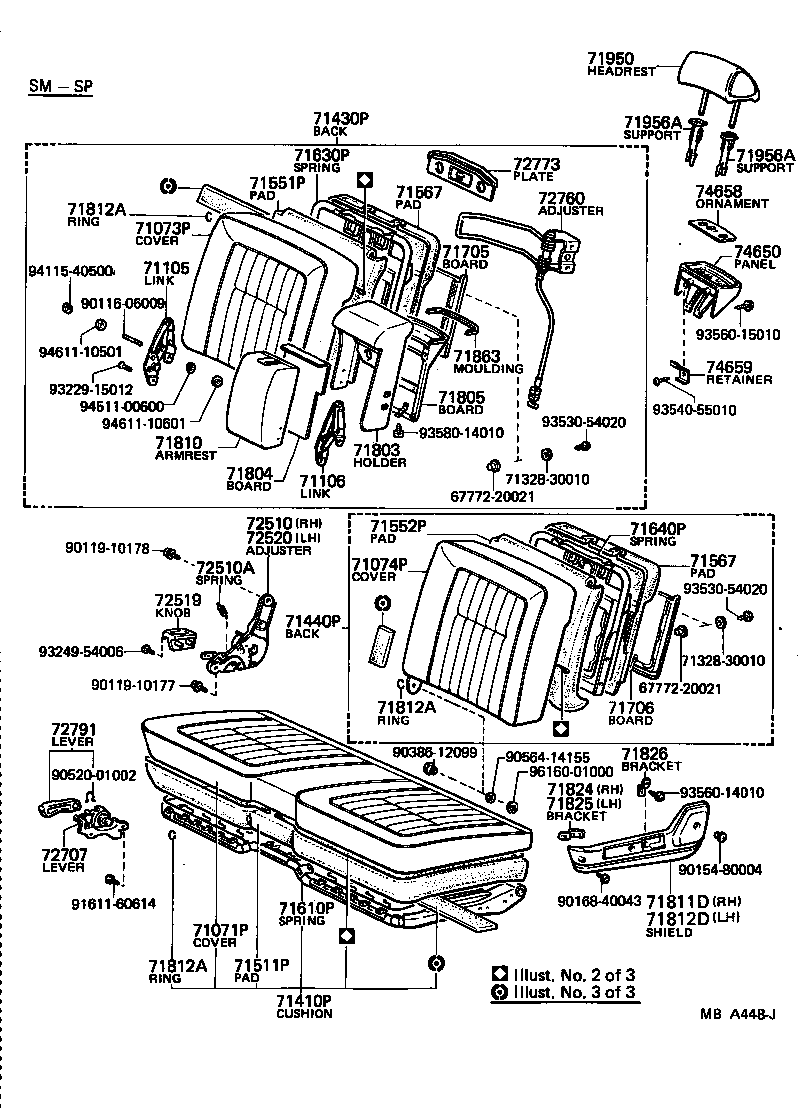

ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3082002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-3082005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3082004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3078002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-3078004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3078005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074P - COVER, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3078002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-3078004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3078005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3A10005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A10002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A10004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3086002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-3086004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3086005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440P - BACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71440-3089005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3089004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3089002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30480 |
LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30410 |
LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30410 |
LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30310 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30330 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30190 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3008004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3008005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3008002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3011004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30240 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71821-30250 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71826 - BRACKET, FRONT SEAT SIDE, NO.2 | ||||
| 71823-30070 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3023004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3023005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3023002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-3031004 |
MS110,112..SAL..4D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008002 |
MS110,112..SAL..4D LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-3031002 |
MS110,112..SAL..4D RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71920-3008004 |
MS110,112..SAL..4D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008005 |
MS110,112..SAL..4D LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3031005 |
MS110,112..SAL..4D RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30230 |
MS112..SED..4HC..ROY;LS110,MS110,112,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX) SP-BN,SM-SP |
1 | ||
| 72510-30220 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS110,LS110,111,MS110,112,RS110 |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72525-2005004 |
LS110,MS110,112,RS110 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004002 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005002 |
LS110,MS110,112,RS110 RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004015 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS110,112,RS110 RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72707 - LEVER SUB-ASSY, LUMBER SUPPORT, RH | ||||
| 72707-30020 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72707-30020 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72750-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,TAX) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74650 - PANEL ASSY, FRONT SEAT BACK CONTROL | ||||
| 74841-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3004004 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74841-3004002 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74841-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3004005 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74842-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74842-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 74842-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-30050 |
MS110,112..(4H,4HC)..SAL SM-SP |
1 | ||
| 74844-30020 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE |
1 | ||
| 74843-30080 |
MS110..(4H,4HC)..(SAL,SDX) SM-SP,W/DUAL AIR CON |
1 | ||
| 74843-30070 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE |
1 | ||
| 74844-30030 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,W/DUAL AIR CON |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30010 |
GS110,LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,LOUNGE |
2 | ||
| Common parts | ||||
| 90119-10177 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 91611-60614 | ||||
| 93249-54006 | ||||
| 93510-14016 | ||||
| 93540-55010 | ||||
| 93560-14010 | ||||
| 96160-01000 | ||||
ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3082002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-3082005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3082004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3078002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-3078004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3078005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074P - COVER, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3078002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-3078004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3078005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71105 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, RH | ||||
| 72805-30030 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 72805-30030 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71106 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, LH | ||||
| 72806-30030 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 72806-30030 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||

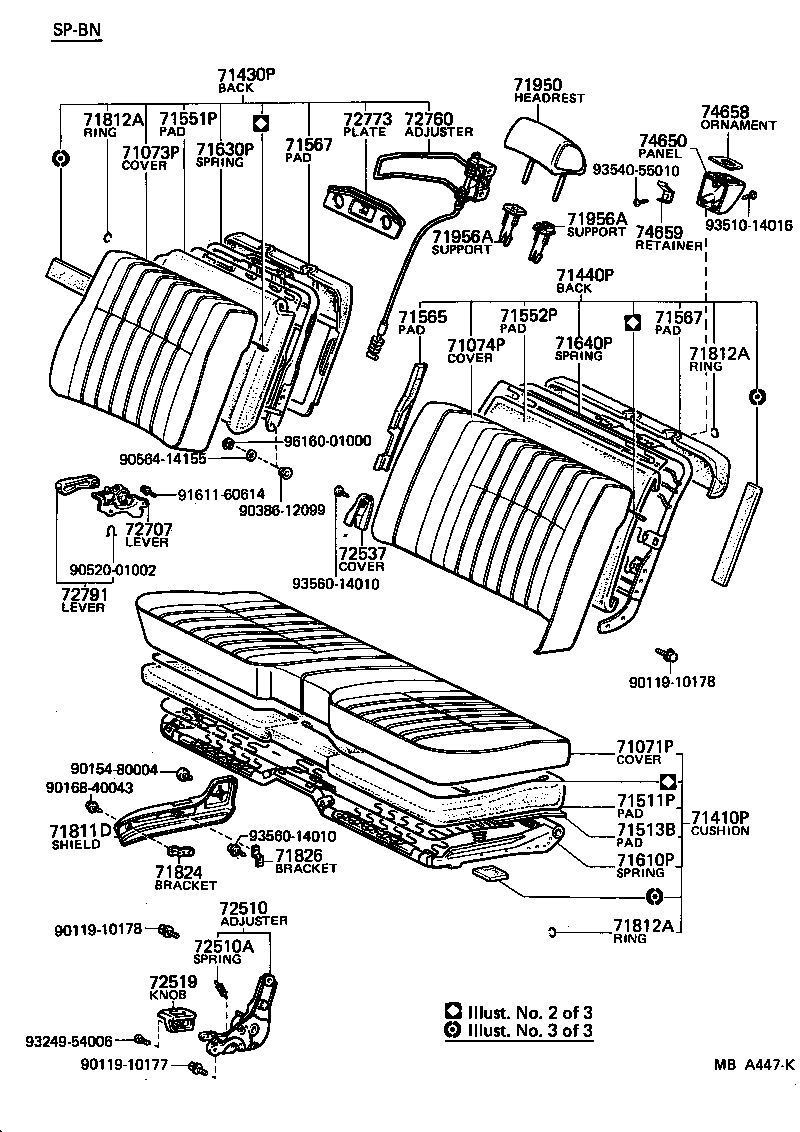

| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3A10005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A10002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A10004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3086002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-3086004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3086005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440P - BACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71440-3089005 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3089004 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3089002 |
MS110,112..(4H,4HC)..SAL FB,SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30480 |
LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30410 |
LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30410 |
LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30310 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30330 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30190 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71803 - HOLDER SUB-ASSY, FRONT SEAT ARMREST | ||||
| 71170-3002002 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71170-3005005 |
MS110,112..(4H,4HC)..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71170-3002004 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71180-3001005 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71170-3002005 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71180-3001002 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71170-3005004 |
MS110,112..(4H,4HC)..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71170-3005002 |
MS110,112..(4H,4HC)..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71180-3001004 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71804 - BOARD SUB-ASSY, FRONT SEAT ARMREST HOLE | ||||
| 71801-30180 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71805 - BOARD SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71805-3011004 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71805-3011002 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71805-3011005 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71805-3013004 |
MS110,112..(4H,4HC)..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71805-3013002 |
MS110,112..(4H,4HC)..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71805-3013005 |
MS110,112..(4H,4HC)..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71806-3004002 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71806-3004005 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71806-3004004 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||

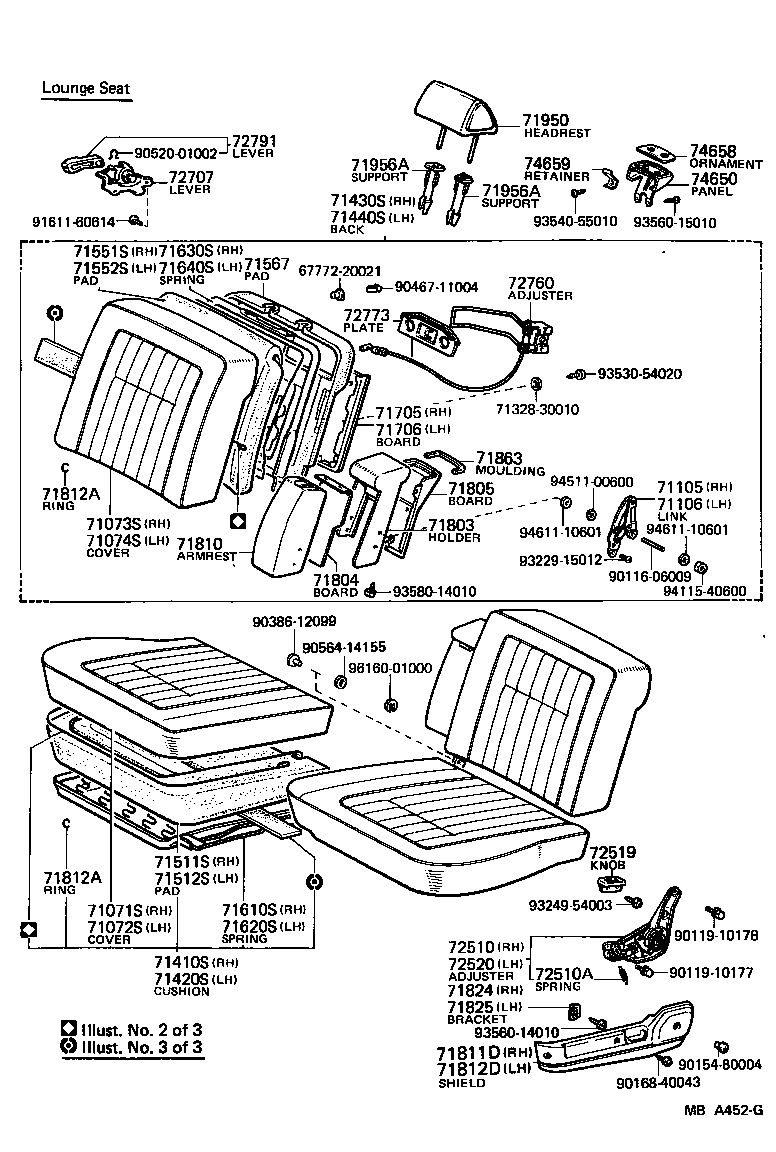

| 71810 - ARMREST ASSY, FRONT SEAT CENTER | ||||
| 72810-3003004 |
MS110,112..(4H,4HC)..SAL LOUNGE,BLUE,BLUE,TRIM8# |
2 | ||
| 72810-3005004 |
MS110,112..(4H,4HC)..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3005002 |
MS110,112..(4H,4HC)..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72810-3005005 |
MS110,112..(4H,4HC)..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72810-3003002 |
MS110,112..(4H,4HC)..SAL LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 72810-3003005 |
MS110,112..(4H,4HC)..SAL LOUNGE,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3008004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3008005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3008002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3011004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3006004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3006002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3006005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3007002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3007004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3007005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30240 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71821-30250 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30240 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71822-30230 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71826 - BRACKET, FRONT SEAT SIDE, NO.2 | ||||
| 71823-30070 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71863 - MOULDING, FRONT SEAT ARMREST HOLDER BOARD | ||||
| 71859-30020 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71859-30010 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3023004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3023005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3023002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-3031004 |
MS110,112..SAL..4D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008002 |
MS110,112..SAL..4D LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-3031002 |
MS110,112..SAL..4D RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71920-3008004 |
MS110,112..SAL..4D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008005 |
MS110,112..SAL..4D LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3031005 |
MS110,112..SAL..4D RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30230 |
MS112..SED..4HC..ROY;LS110,MS110,112,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX) SP-BN,SM-SP |
1 | ||
| 72510-30220 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS110,LS110,111,MS110,112,RS110 |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72525-2005004 |
LS110,MS110,112,RS110 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004002 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005002 |
LS110,MS110,112,RS110 RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004015 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS110,112,RS110 RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30190 |
MS112..SED..4HC..ROY;LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 72520-30180 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72707 - LEVER SUB-ASSY, LUMBER SUPPORT, RH | ||||
| 72707-30020 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72707-30020 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72750-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,TAX) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74650 - PANEL ASSY, FRONT SEAT BACK CONTROL | ||||
| 74841-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3004004 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74841-3004002 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74841-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3004005 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74842-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74842-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 74842-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-30050 |
MS110,112..(4H,4HC)..SAL SM-SP |
1 | ||
| 74844-30020 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE |
1 | ||
| 74843-30080 |
MS110..(4H,4HC)..(SAL,SDX) SM-SP,W/DUAL AIR CON |
1 | ||
| 74843-30070 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE |
1 | ||
| 74844-30030 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,W/DUAL AIR CON |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30010 |
GS110,LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,LOUNGE |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 71328-30010 | ||||
| 90116-06009 | ||||
| 90119-10177 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 91611-60614 | ||||
| 93229-15012 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93540-55010 | ||||
| 93560-14010 | ||||
| 93560-15010 | ||||
| 93580-14010 | ||||
| 94115-40500 | ||||
| 94511-00600 | ||||
| 94611-10501 | ||||
| 94611-10601 | ||||
| 96160-01000 | ||||

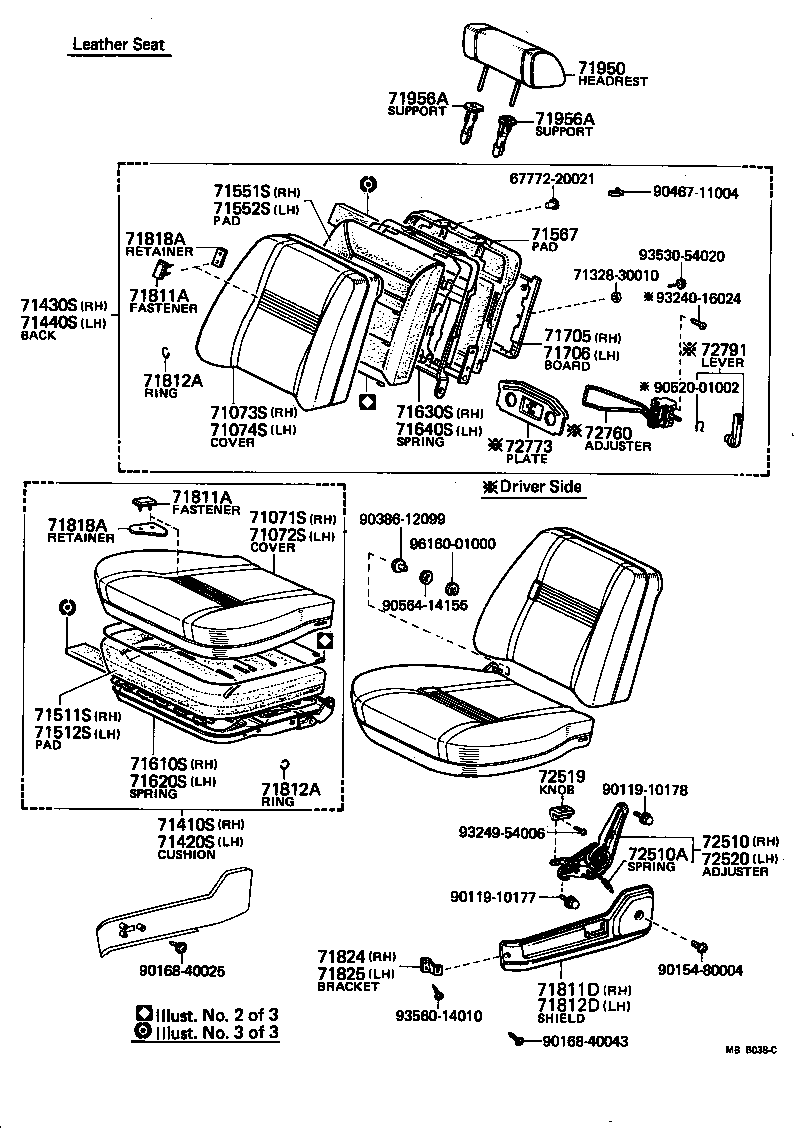

ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3084002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-3084004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3084005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3037002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71072-3037004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3037005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3074002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-3074004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3074005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3031004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3031002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074-3031005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3069002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-3069005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3069004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3035004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3035002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-3035005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3A01002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A01005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A01004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3067005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3067002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-3067004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30490 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-30370 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30410 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30410 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30270 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30080 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-30340 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30200 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3008004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3008005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3008002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3011004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3006004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3006002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3006005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3007002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3007004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3007005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30240 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71821-30250 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30240 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71822-30230 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3023004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3023005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3023002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-3031004 |
MS110,112..SAL..4D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008002 |
MS110,112..SAL..4D LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-3031002 |
MS110,112..SAL..4D RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71920-3008004 |
MS110,112..SAL..4D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008005 |
MS110,112..SAL..4D LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3031005 |
MS110,112..SAL..4D RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30230 |
MS112..SED..4HC..ROY;LS110,MS110,112,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX) SP-BN,SM-SP |
1 | ||
| 72510-30220 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS110,LS110,111,MS110,112,RS110 |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72525-2005004 |
LS110,MS110,112,RS110 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004002 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005002 |
LS110,MS110,112,RS110 RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004015 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS110,112,RS110 RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30190 |
MS112..SED..4HC..ROY;LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 72520-30180 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72750-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72750-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,TAX) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 71328-30010 | ||||
| 90119-10177 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90467-11004 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 91611-40610 | ||||
| 93210-16020 | ||||
| 93249-54006 | ||||
| 93510-53510 | ||||
| 93530-54020 | ||||
| 93540-53510 | ||||
| 93560-14010 | ||||
| 93560-14014 | ||||
| 96160-01000 | ||||
ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3084002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-3084004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3084005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3037002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71072-3037004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3037005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3074002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-3074004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3074005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3031004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3031002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074-3031005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71105 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, RH | ||||
| 72805-30030 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 72805-30030 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71106 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, LH | ||||
| 72806-30030 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 72806-30030 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3069002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-3069005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3069004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3035004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3035002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-3035005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3A01002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A01005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A01004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3067005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3067002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-3067004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30490 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-30370 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30410 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30410 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30270 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30080 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-30340 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30200 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71803 - HOLDER SUB-ASSY, FRONT SEAT ARMREST | ||||
| 71170-3002002 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71170-3005005 |
MS110,112..(4H,4HC)..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71170-3002004 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71180-3001005 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71170-3002005 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71180-3001002 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71170-3005004 |
MS110,112..(4H,4HC)..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71170-3005002 |
MS110,112..(4H,4HC)..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71180-3001004 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71804 - BOARD SUB-ASSY, FRONT SEAT ARMREST HOLE | ||||
| 71801-30180 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71805 - BOARD SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71805-3011004 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71805-3011002 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71805-3011005 |
MS110,112..(4H,4HC)..SAL RH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71805-3013004 |
MS110,112..(4H,4HC)..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71805-3013002 |
MS110,112..(4H,4HC)..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71805-3013005 |
MS110,112..(4H,4HC)..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71806-3004002 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71806-3004005 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71806-3004004 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71810 - ARMREST ASSY, FRONT SEAT CENTER | ||||
| 72810-3003004 |
MS110,112..(4H,4HC)..SAL LOUNGE,BLUE,BLUE,TRIM8# |
2 | ||
| 72810-3005004 |
MS110,112..(4H,4HC)..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3005002 |
MS110,112..(4H,4HC)..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72810-3005005 |
MS110,112..(4H,4HC)..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72810-3003002 |
MS110,112..(4H,4HC)..SAL LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 72810-3003005 |
MS110,112..(4H,4HC)..SAL LOUNGE,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3008004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3008005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3008002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3011004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3006004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3006002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3006005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3007002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3007004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3007005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30240 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71821-30250 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30240 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71822-30230 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71863 - MOULDING, FRONT SEAT ARMREST HOLDER BOARD | ||||
| 71859-30020 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71859-30010 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3023004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3023005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3023002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-3031004 |
MS110,112..SAL..4D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008002 |
MS110,112..SAL..4D LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-3031002 |
MS110,112..SAL..4D RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71920-3008004 |
MS110,112..SAL..4D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008005 |
MS110,112..SAL..4D LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3031005 |
MS110,112..SAL..4D RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30230 |
MS112..SED..4HC..ROY;LS110,MS110,112,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX) SP-BN,SM-SP |
1 | ||
| 72510-30220 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS110,LS110,111,MS110,112,RS110 |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72525-2005004 |
LS110,MS110,112,RS110 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004002 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005002 |
LS110,MS110,112,RS110 RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004015 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS110,112,RS110 RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30190 |
MS112..SED..4HC..ROY;LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 72520-30180 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72707 - LEVER SUB-ASSY, LUMBER SUPPORT, RH | ||||
| 72707-30020 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72707-30020 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72750-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,TAX) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74650 - PANEL ASSY, FRONT SEAT BACK CONTROL | ||||
| 74841-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3004004 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74841-3004002 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74841-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3004005 |
LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX) SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74842-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74842-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 74842-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LH,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-30050 |
MS110,112..(4H,4HC)..SAL SM-SP |
1 | ||
| 74844-30020 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE |
1 | ||
| 74843-30080 |
MS110..(4H,4HC)..(SAL,SDX) SM-SP,W/DUAL AIR CON |
1 | ||
| 74843-30070 |
MS110,112..(4H,4HC)..(ROY,SAL) RH,LOUNGE |
1 | ||
| 74844-30030 |
MS110,112..(4H,4HC)..SAL LH,LOUNGE,W/DUAL AIR CON |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30010 |
GS110,LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(DLX,ROY,SAL,SDX) SP-BN,SM-SP,LOUNGE |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 71328-30010 | ||||
| 90116-06009 | ||||
| 90119-10177 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90467-11004 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 91611-60614 | ||||
| 93229-15012 | ||||
| 93249-54003 | ||||
| 93530-54020 | ||||
| 93540-55010 | ||||
| 93560-14010 | ||||
| 93560-15010 | ||||
| 93580-14010 | ||||
| 94115-40600 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 96160-01000 | ||||
ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3084002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-3084004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3084005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3037002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71072-3037004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3037005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3074002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-3074004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3074005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3031004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3031002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074-3031005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3069002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-3069005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3069004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3035004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3035002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-3035005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3A01002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A01005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A01004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3067005 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3067002 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-3067004 |
MS110,112..(4H,4HC)..SAL FB,LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30490 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-30370 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30410 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30410 |
MS110,112..(4H,4HC)..SAL LOUNGE |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30270 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30080 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-30340 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30200 |
GS110,MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3009005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3009002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71705-3009004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3008004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3008005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3008002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-3011005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3011004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3006004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3006002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3006005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3007002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-3007004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3007005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30240 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71821-30250 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30240 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 71822-30230 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3023004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3023005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3023002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-3031004 |
MS110,112..SAL..4D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008002 |
MS110,112..SAL..4D LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-3031002 |
MS110,112..SAL..4D RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71920-3008004 |
MS110,112..SAL..4D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008005 |
MS110,112..SAL..4D LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3031005 |
MS110,112..SAL..4D RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30230 |
MS112..SED..4HC..ROY;LS110,MS110,112,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX) SP-BN,SM-SP |
1 | ||
| 72510-30220 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS110,LS110,111,MS110,112,RS110 |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72525-2005004 |
LS110,MS110,112,RS110 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004002 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005002 |
LS110,MS110,112,RS110 RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004015 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS110,112,RS110 RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30190 |
MS112..SED..4HC..ROY;LS110,MS110,112..(3HC,4H,4HC)..(SAL,SDX) SM-SP |
1 | ||
| 72520-30180 |
LS110,MS110,112..(4H,4HC)..(ROY,SAL,STD,TAX) SP,LOUNGE |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72750-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE,TAX) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 71328-30010 | ||||
| 90119-10177 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40025 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90467-11004 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 93240-16024 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93560-14010 | ||||
| 96160-01000 | ||||
ILLUST NO. 2 OF 3(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20011 | ||||
| 90580-20029 | ||||
| 90580-20103 | ||||
| 90580-20108 | ||||
| 90580-20132 | ||||
| 90580-29009 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
ILLUST NO. 2 OF 3(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20011 | ||||
| 90580-20105 | ||||
| 90580-20107 | ||||
| 90580-20128 | ||||
| 90580-20130 | ||||
| 90580-20165 | ||||
| 90580-20166 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
2 | ||
| 71567-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
2 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3023004 |
MS110,112..SAL..4D BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3023005 |
MS110,112..SAL..4D GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3023002 |
MS110,112..SAL..4D DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-3031004 |
MS110,112..SAL..4D RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008002 |
MS110,112..SAL..4D LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-3031002 |
MS110,112..SAL..4D RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71920-3008004 |
MS110,112..SAL..4D LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3008005 |
MS110,112..SAL..4D LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3031005 |
MS110,112..SAL..4D RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006015 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS11#,MS11#,RS110 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001015 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS11#,MS11#,RS110 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30040 |
MS110,112..4DH..4HC..SAL SM-SP |
1 | ||
| 72750-30040 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3002002 |
MS110,112..4DH..4HC..SAL SM-SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002005 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002004 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002002 |
MS110,112..(4H,4HC)..(ROY,SAL) LOUNGE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002004 |
MS110,112..4DH..4HC..SAL SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002005 |
MS110,112..4DH..4HC..SAL SM-SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10178 | ||||
| 90151-50002 | ||||
| 93319-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
