MS110-STNGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MS110,112..EFI,LPG

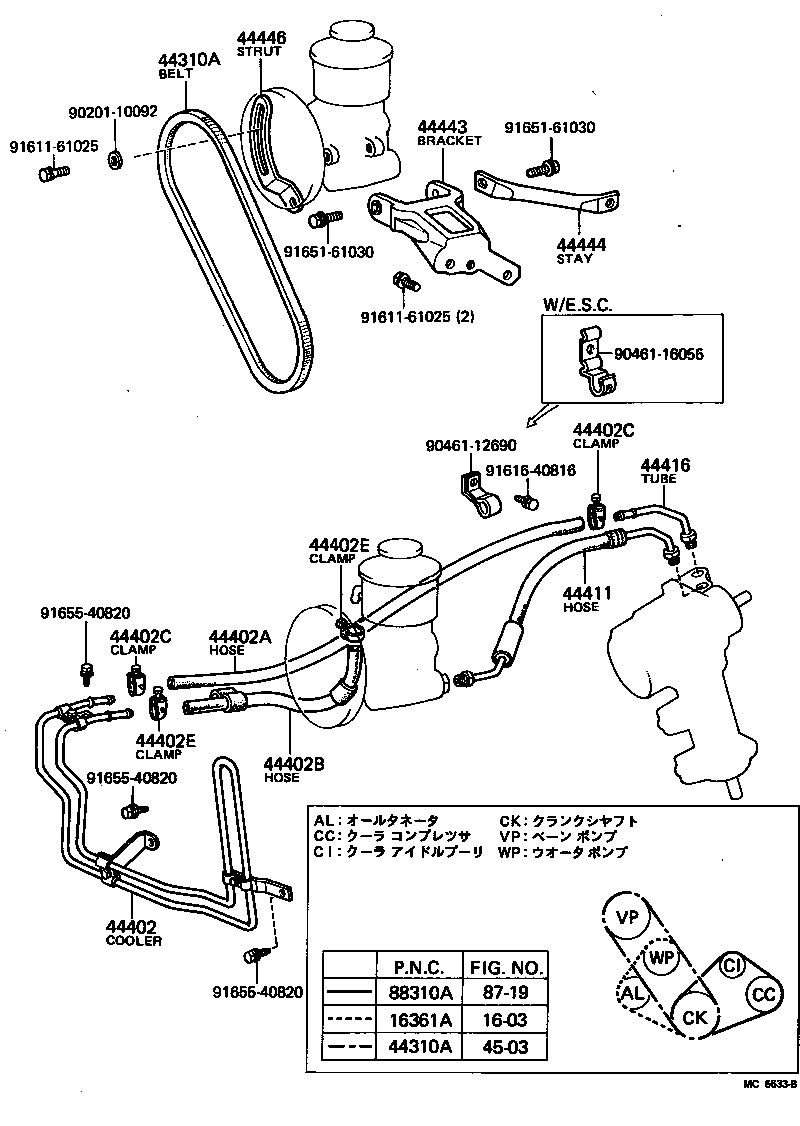

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44443 44444 44446 4503 8719 88310A 9020110092 9046112690 9046116055 9161161025 9161161025 9161640816 9165161030 9165161030 9165540820 9165540820 9165540820
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

MEU,MJ,5M#,MTEU,MU..MS11#

L=925

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02078

MS110,112..EFI,LPG

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02078

MS110,112..EFI,LPG

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30071

MS11#,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,LPG)

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18065

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
90445-18065

MS11#,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,LPG)

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18002

MS11#..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,LPG)

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44411 - HOSE, PRESSURE FEED
44411-30130

MS110,112..EFI,LPG

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30030

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
44443 - BRACKET, PUMP
44443-30050

MS110,112..EFI

 1
44444 - STAY, PUMP, REAR
44444-30061

MS110,112..EFI,LPG

 1
44446 - STRUT, ADJUSTING
44446-30040

MS110,112..EFI,LPG

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00940

MS11#..CBR,EFI,TBO

 1
Common parts
90201-10092
90461-12690
90461-16055
91611-61025
91616-40816
91651-61030
91655-40820
Linked diagrams
1603
4503
8719
