MS110-STNGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )ATM

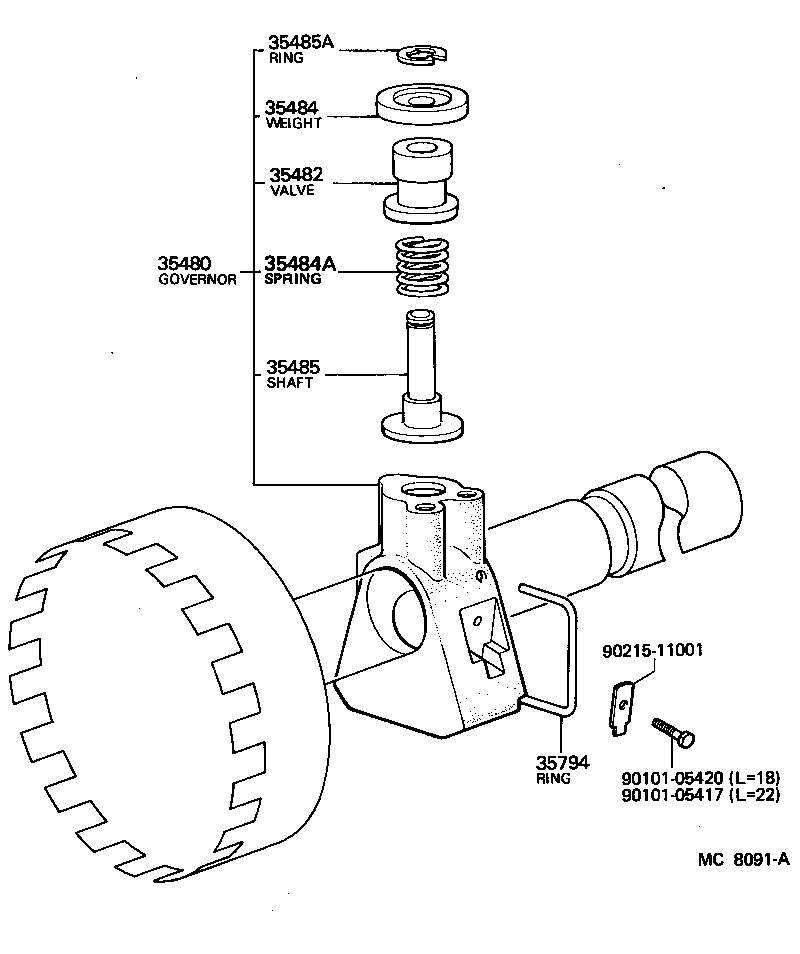

Click highlighted areas on diagram

diagram 35480 35482 35484 35484A 35485 35485A 35794 9010105417 9010105420 9021511001
Part # Description Qty Price
35480 - GOVERNOR
35480-30040

MS110..ATM..EFI

 1
35482 - VALVE, GOVERNOR
35482-22010

GS110,MS110,112..ATM..(CBR,EFI,LPG,TBO)

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

MS110,112..ATM

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-09673

GS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO)

 1
35485 - SHAFT, GOVERNOR VALVE
35485-22010

GS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

GS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

GS110,LS11#,MS110,112..ATM..(DSL,EFI,LPG,TBO,TDE)

 1
Common parts
90101-05417
90101-05420
90215-11001
