MS110-STNGE (1979)
Toyota Crown

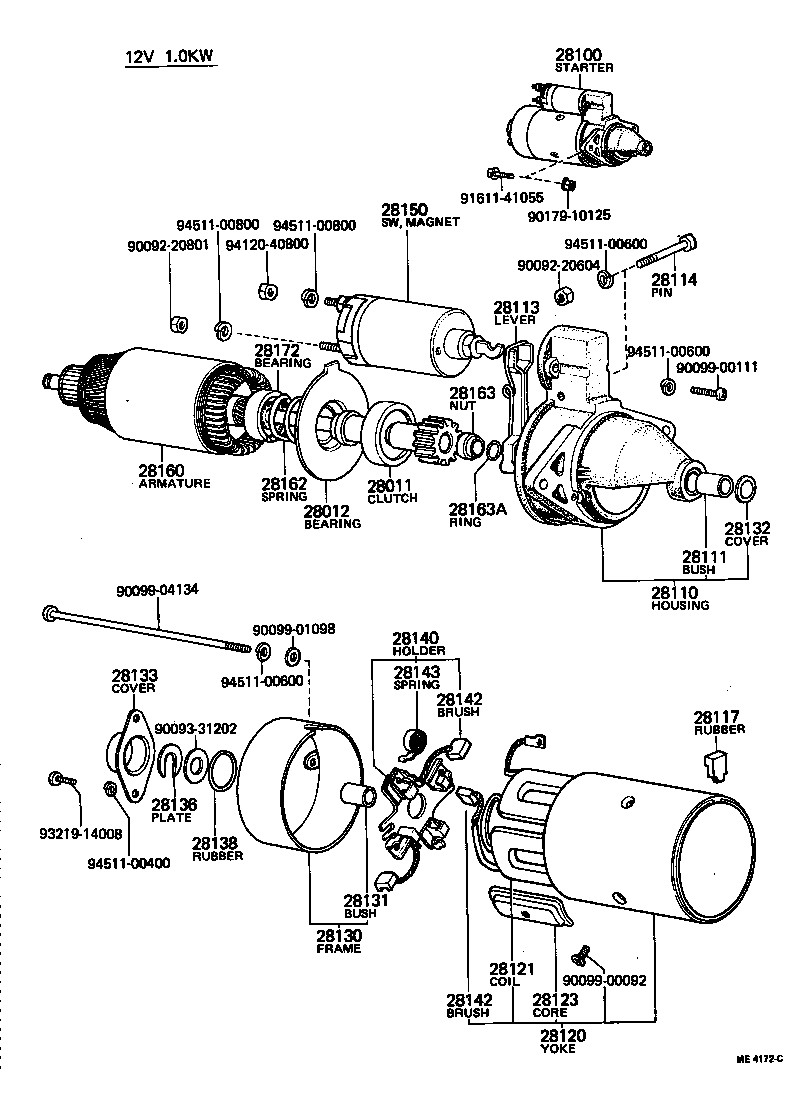

(7909-8108)MEU,5MEU,MU..EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28011-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28126-33021 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-42021 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28100-41050 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-41021 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28110-41050 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28111-51011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28113-41011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-42020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28120-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-42020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28121-34070 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28130-41020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10039 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.3 |
1 | ||
| 90099-10040 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.5 |
1 | ||
| 90099-10134 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28131-20010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,STD |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28132-40010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-40010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28136-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-40010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28138-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28140-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15011 |
MEU,MJ,MU..MS110,117..CBR,EFI 12V 0.8KW |
1 | ||
| 28150-60040 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28160-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28162-41022 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-41021 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90092-20604 | ||||
| 90092-20801 | ||||
| 90093-31202 | ||||
| 90099-00092 | ||||
| 90099-00111 | ||||
| 90099-01098 | ||||
| 90099-04134 | ||||
| 90179-10125 | ||||
| 91611-41055 | ||||
| 93219-14008 | ||||
| 94120-40800 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(7909- )L,2LT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28011-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-42021 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28100-41050 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-41021 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28110-41050 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-42020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28120-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28130-41020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28140-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15011 |
MEU,MJ,MU..MS110,117..CBR,EFI 12V 0.8KW |
1 | ||
| 28150-60040 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28160-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-12018 | ||||
| 90179-08026 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||

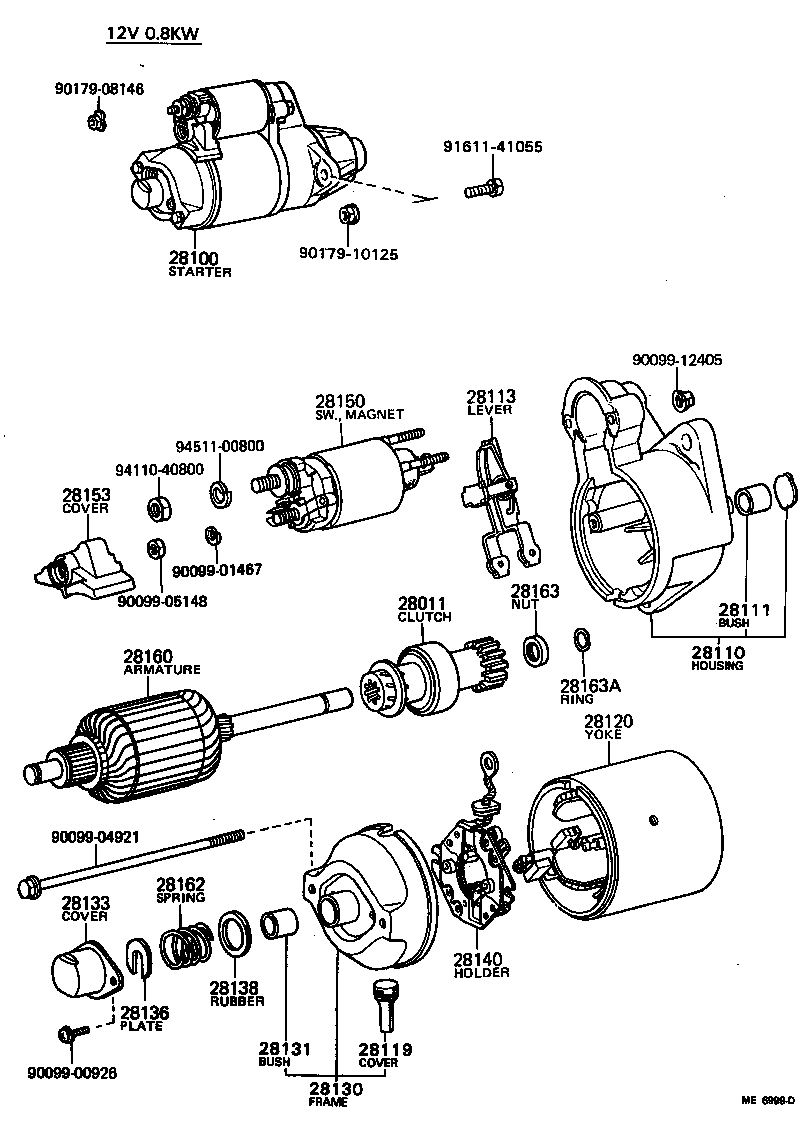

(7909- )MEU,MJ,MTEU,MU..CBR,EFI,TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28011-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-42021 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28100-41050 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-41021 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28110-41050 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28111-51011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28113-41011 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-42020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28120-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28130-41020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10039 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.3 |
1 | ||
| 90099-10040 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.5 |
1 | ||
| 90099-10134 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28131-20010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,STD |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28132-40010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-40010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28136-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-40010 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28138-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41020 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28140-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15011 |
MEU,MJ,MU..MS110,117..CBR,EFI 12V 0.8KW |
1 | ||
| 28150-60040 |
MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
1 | ||
| 28153 - COVER, MAGNET SWITCH | ||||
| 28159-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-41020 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28160-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
1 | ||
| 28162-41022 |
MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04921 | ||||
| 90099-05148 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-41055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
