MS110-STNGE (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
MEU
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )MEU,5MEU

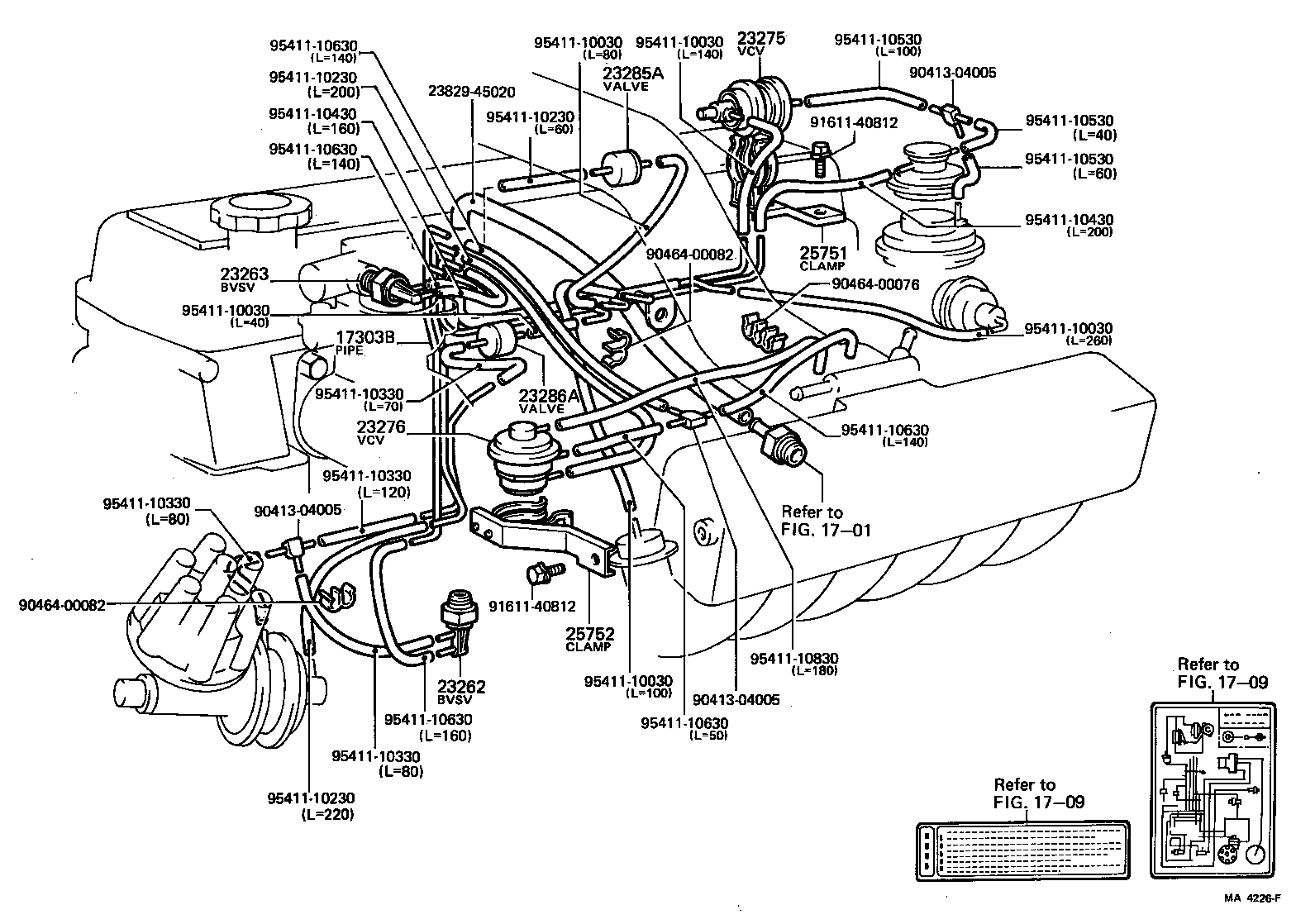

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-41080 |
MEU,5MEU..MS110,112 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
MEU,5MEU..MS110,112 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05046 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03088 |
MEU,5MEU..MS110,112 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03087 |
MEU..MS110 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10055 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-41020 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25752-41040 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| Common parts | ||||
| 23829-45020 | ||||
| 90413-04005 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 91611-40812 | ||||
| 95411-10030 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10830 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||
(7909- )L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
(7909- )MEU,MJ,5M#,MTEU,MU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
