MS110-STMZE (1979)
Toyota Crown

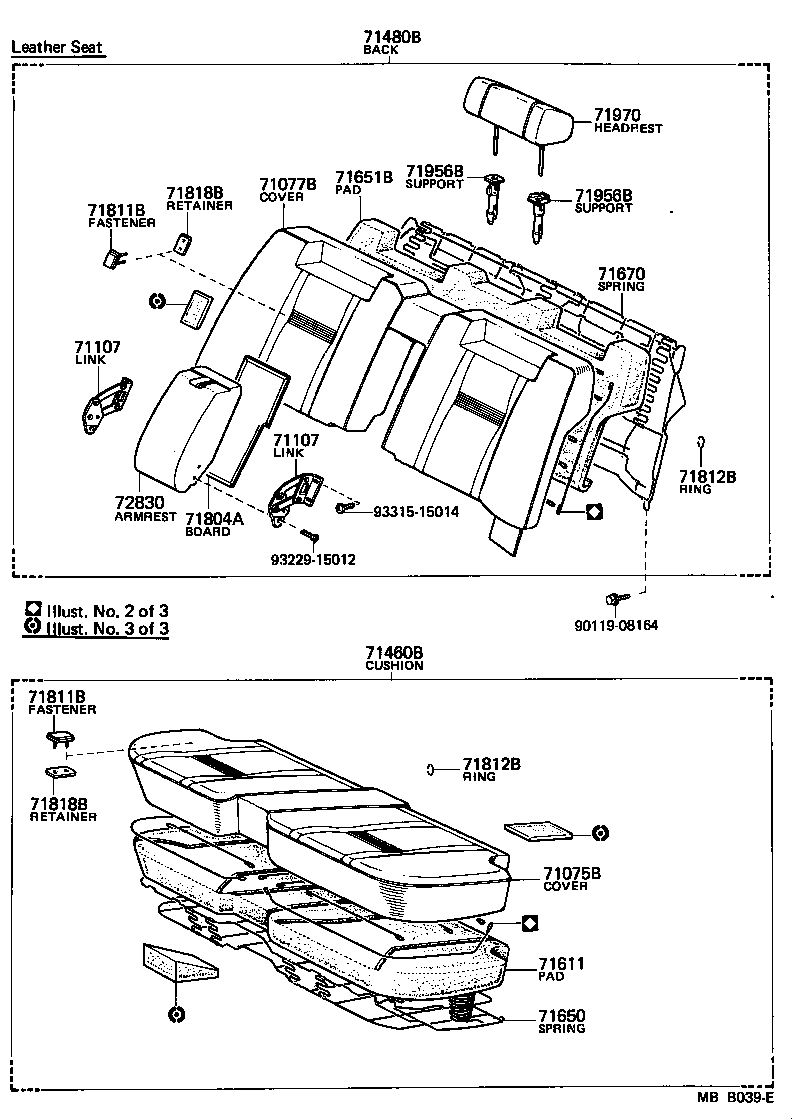

ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3071005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3071002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-3071004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3076002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-3076005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3076004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3077005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3077004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3077002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3083002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-3083004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3083005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30430 |
LS110,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30230 |
LS110,MS110,112..4DH |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30460 |
GS110,LS110,111,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30270 |
GS110,MS110,112..(ROY,SAL)..2D;GS110,LS110,111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72693-30010 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| Common parts | ||||
| 90119-08164 | ||||
ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3071005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3071002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-3071004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3076002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-3076005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3076004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72807-30030 |
LS110,MS110,112..HT RH |
1 | ||
| 72808-30030 |
LS110,MS110,112..HT LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3077005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3077004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3077002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3083002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-3083004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3083005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30430 |
LS110,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30230 |
LS110,MS110,112..4DH |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30460 |
GS110,LS110,111,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30270 |
GS110,MS110,112..(ROY,SAL)..2D;GS110,LS110,111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3011002 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71803-3011005 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011004 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72693-30010 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3010002 |
LS110,MS110..CTE,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72830-3010004 |
LS110,MS110..CTE,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 72830-3010005 |
LS110,MS110..CTE,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 93229-15012 | ||||
| 93315-15014 | ||||
ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3071005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3071002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-3071004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3076002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-3076005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3076004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72807-30030 |
LS110,MS110,112..HT RH |
1 | ||
| 72808-30030 |
LS110,MS110,112..HT LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3077005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3077004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3077002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3083002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-3083004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3083005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30430 |
LS110,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30230 |
LS110,MS110,112..4DH |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30460 |
GS110,LS110,111,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30270 |
GS110,MS110,112..(ROY,SAL)..2D;GS110,LS110,111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3011002 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71803-3011005 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011004 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72693-30010 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3010002 |
LS110,MS110..CTE,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72830-3010004 |
LS110,MS110..CTE,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 72830-3010005 |
LS110,MS110..CTE,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 93229-15012 | ||||
| 93315-15014 | ||||
ILLUST NO. 1 OF 3(7909- )4DH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3071005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3071002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-3071004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3076002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-3076005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3076004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72807-30030 |
LS110,MS110,112..HT RH |
1 | ||
| 72808-30030 |
LS110,MS110,112..HT LH |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72807-30030 |
LS110,MS110,112..HT RH |
1 | ||
| 72808-30030 |
LS110,MS110,112..HT LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3077005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3077004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3077002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3083002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-3083004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3083005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30430 |
LS110,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30230 |
LS110,MS110,112..4DH |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30460 |
GS110,LS110,111,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30270 |
GS110,MS110,112..(ROY,SAL)..2D;GS110,LS110,111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3011002 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71803-3011005 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011004 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3010002 |
LS110,MS110..CTE,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72830-3010004 |
LS110,MS110..CTE,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 72830-3010005 |
LS110,MS110..CTE,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 93229-15012 | ||||
| 93315-15014 | ||||
ILLUST NO. 2 OF 3(7909-8108)HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20015 | ||||
| 90580-20096 | ||||
| 90580-20103 | ||||
| 90580-20105 | ||||
| 90580-20132 | ||||
| 90580-29003 | ||||
| 90580-29009 | ||||
| 90580-29010 | ||||
| 90580-29013 | ||||
ILLUST NO. 2 OF 3(7909-8108)HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20020 | ||||
| 90580-20029 | ||||
| 90580-20035 | ||||
| 90580-20108 | ||||
| 90580-20166 | ||||
| 90580-20167 | ||||
| 90580-20168 | ||||
| 90580-20170 | ||||
| 90580-29002 | ||||
| 90580-29009 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
| 90580-29012 | ||||
ILLUST NO. 3 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3071005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3071002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-3071004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3076002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-3076005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3076004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72807-30030 |
LS110,MS110,112..HT RH |
1 | ||
| 72808-30030 |
LS110,MS110,112..HT LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3077005 |
LS110,MS110..(CTE,SPE)..4D FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3077004 |
LS110,MS110..(CTE,SPE)..4D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3077002 |
LS110,MS110..(CTE,SPE)..4D FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3083002 |
LS110,MS110..CTE,SPE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-3083004 |
LS110,MS110..CTE,SPE FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3083005 |
LS110,MS110..CTE,SPE FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30430 |
LS110,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30230 |
LS110,MS110,112..4DH |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30460 |
GS110,LS110,111,MS110..4DH..(CTE,DLX,SPE) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30270 |
GS110,MS110,112..(ROY,SAL)..2D;GS110,LS110,111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30270 |
GS110,MS110,112..(ROY,SAL)..2D;GS110,LS110,111,MS110..HT..(CTE,DLX,SPE) |
1 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3011002 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71803-3011005 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011004 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3010002 |
LS110,MS110..CTE,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72830-3010004 |
LS110,MS110..CTE,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 72830-3010005 |
LS110,MS110..CTE,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08143 | ||||
| 90386-12173 | ||||
| 90506-12035 | ||||
| 91611-60616 | ||||
| 93229-15012 | ||||
| 93315-15014 | ||||
| 93560-14014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
