MS110-STMXE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7909-8108)MS11#..4F,5F ; (7909- )LS11#..MTM

Click highlighted areas on diagram

diagram 31111 31111 33118 33118 33119 33119 9011906125 9011910109 9161161028 9161161030 9161161030 9161161035 9161161035 9161161040 9161161050 9161961250 9161961250 9161961250 9161961250 9161961250 9165161032 9165161032
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-22071

MS11#..4F,5F

 1
31111 - HOUSING, CLUTCH
31111-22071

MS11#..4F,5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-30031

MS11#..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-30031

MS11#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22030

MS11#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22030

MS11#..MTM

 1
Common parts
90119-06125
90119-10109
91611-61028
91611-61030
91611-61035
91611-61040
91611-61050
91619-61250
91651-61032

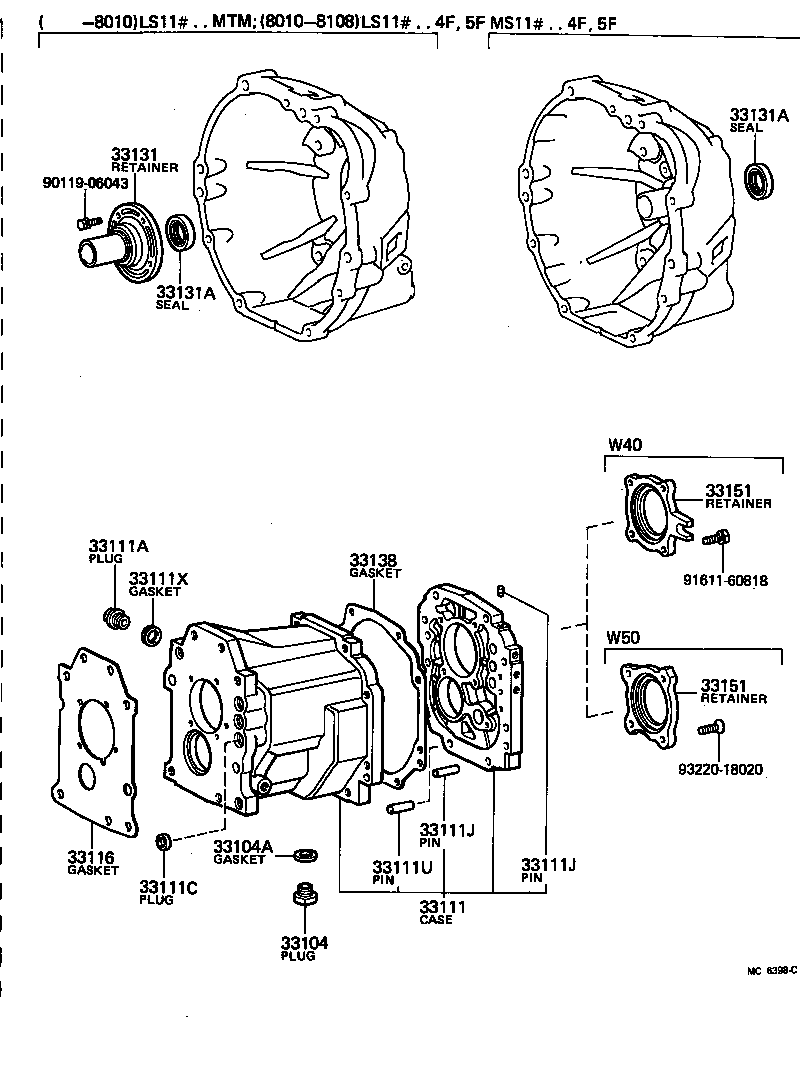

ILLUST NO. 2 OF 2(7909-8010)LS11#..MTM ; (7909-8108)MS11#..4F,5F; (8010-8108)LS11#..4F,5F

Click highlighted areas on diagram

diagram 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111X 33116 33131 33131A 33131A 33138 33151 33151 9011906043 9161160818 9322018020
Part # Description Qty Price
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GS11#,LS11#,MS11#,RS110..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LS11#,MS11#,RS110..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-20011

MS11#..4F,5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GS11#,LS11#,MS11#,RS110..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-20044

MS11#..4F,5F

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

MS11#..4F,5F

OD=12,L=35

 2
90334-06017

LS11#,MS11#..4F,5F

OD=6,L=11

 1
90334-06017

MS11#..4F,5F

OD=6,L=11

 1
90250-12195

LS11#,MS11#..4F,5F

OD=12,L=35

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

MS11#..4F,5F

OD=12,L=35

 2
90334-06017

LS11#,MS11#..4F,5F

OD=6,L=11

 1
90334-06017

MS11#..4F,5F

OD=6,L=11

 1
90250-12195

LS11#,MS11#..4F,5F

OD=12,L=35

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

MS11#..4F,5F

長さ=12,外径=13

 2
90253-13017

LS11#,MS11#..4F,5F

長さ=12,外径=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LS11#,MS11#,RS110..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20040

MS11#..4F,5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

MS11#..4F,5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

MS11#..4F,5F

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-20020

LS11#,MS110,112..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-20010

LS11#,MS110,112..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-20010

LS11#,MS110,112..5F

 1
Common parts
90119-06043
91611-60818
93220-18020
