MS110-STMGE (1979)
Toyota Crown
(7909- )HT,SED

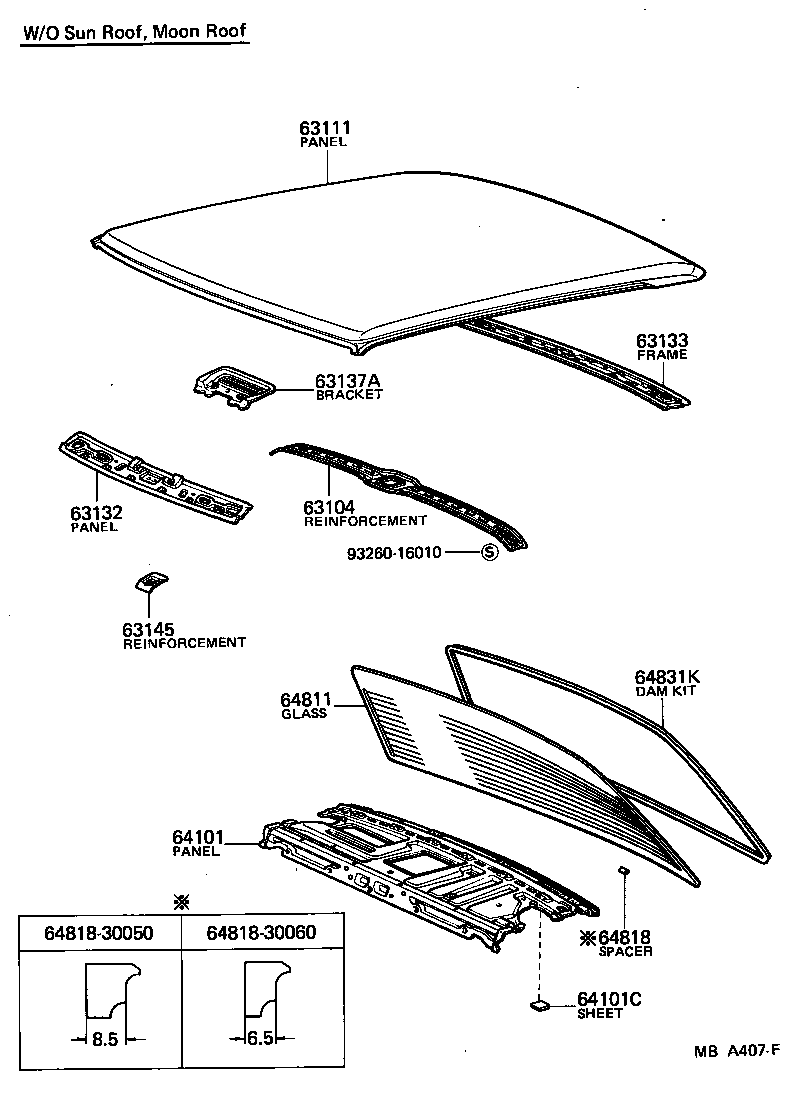

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-30110 |
GS110,LS111,MS110,112..4DH..(ROY,SAL) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30120 |
GS110,LS110,111,MS110,112..4DH |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-30100 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-30090 |
GS110,LS110,111,MS110,112..4DH |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-30060 |
GS110,LS110,111,MS110,112..ROY,SAL,SPE |
1 | ||
| 63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL | ||||
| 63145-30030 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30120 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| 64101C - SHEET, SILENCER | ||||
| 61825-30010 |
GS110,LS110,111,MS110,112,RS110..HT,SED 70X70 |
2 | ||
| 61824-30010 |
GS110,LS110,111,MS110,112,RS110..HT,SED 40X40 |
4 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-30160 |
GS110,LS110,111,MS110,112..4DH *EHTT,T=4.0 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-30050 |
GS110,LS110,111,MS110,112,RS110..HT,SED T=8.5 |
2 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30020 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| Common parts | ||||
| 64818-30050 | ||||
| 64818-30060 | ||||
| 93260-16010 | ||||

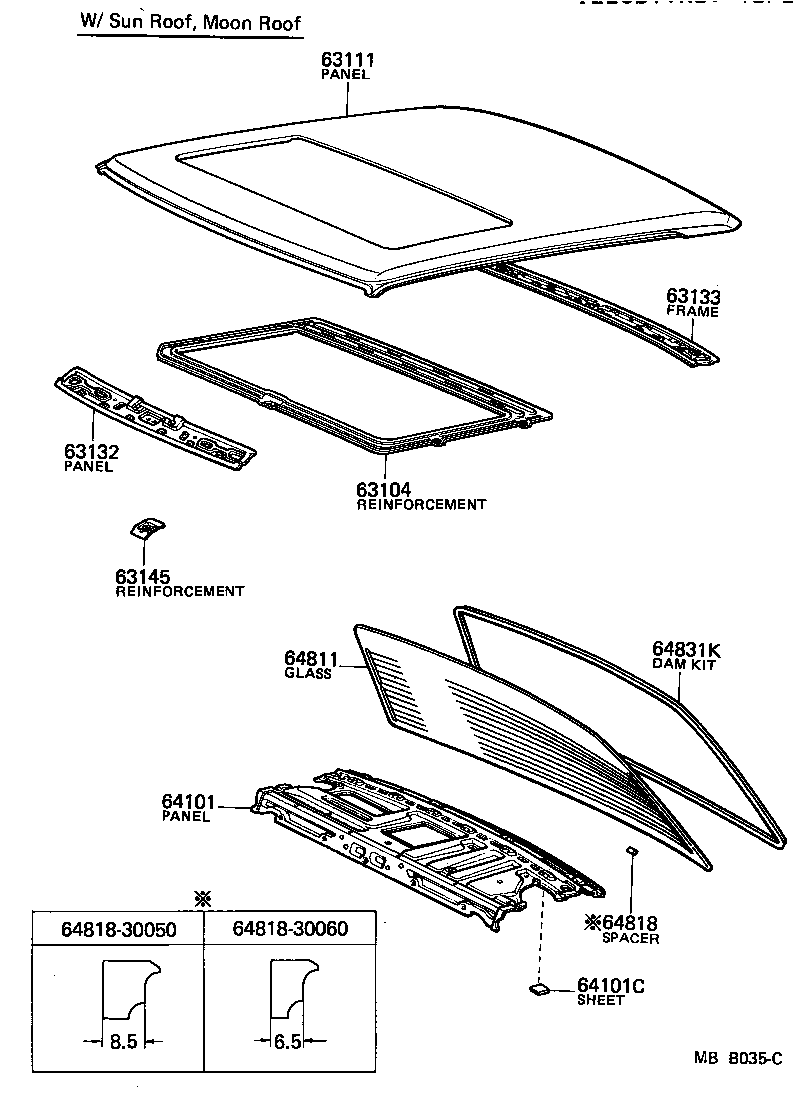

ILLUST NO. 1 OF 2(8002- )HT..ROY,SAL,SPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-30110 |
GS110,LS111,MS110,112..4DH..(ROY,SAL) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-30120 |
GS110,LS110,111,MS110,112..4DH |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-30100 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-30090 |
GS110,LS110,111,MS110,112..4DH |
1 | ||
| 63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL | ||||
| 63145-30030 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-30120 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| 64101C - SHEET, SILENCER | ||||
| 61825-30010 |
GS110,LS110,111,MS110,112,RS110..HT,SED 70X70 |
2 | ||
| 61824-30010 |
GS110,LS110,111,MS110,112,RS110..HT,SED 40X40 |
4 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-30160 |
GS110,LS110,111,MS110,112..4DH *EHTT,T=4.0 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-30050 |
GS110,LS110,111,MS110,112,RS110..HT,SED T=8.5 |
2 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30020 |
GS110,LS110,111,MS110,112..HT |
1 | ||
| Common parts | ||||
| 64818-30050 | ||||
| 64818-30060 | ||||

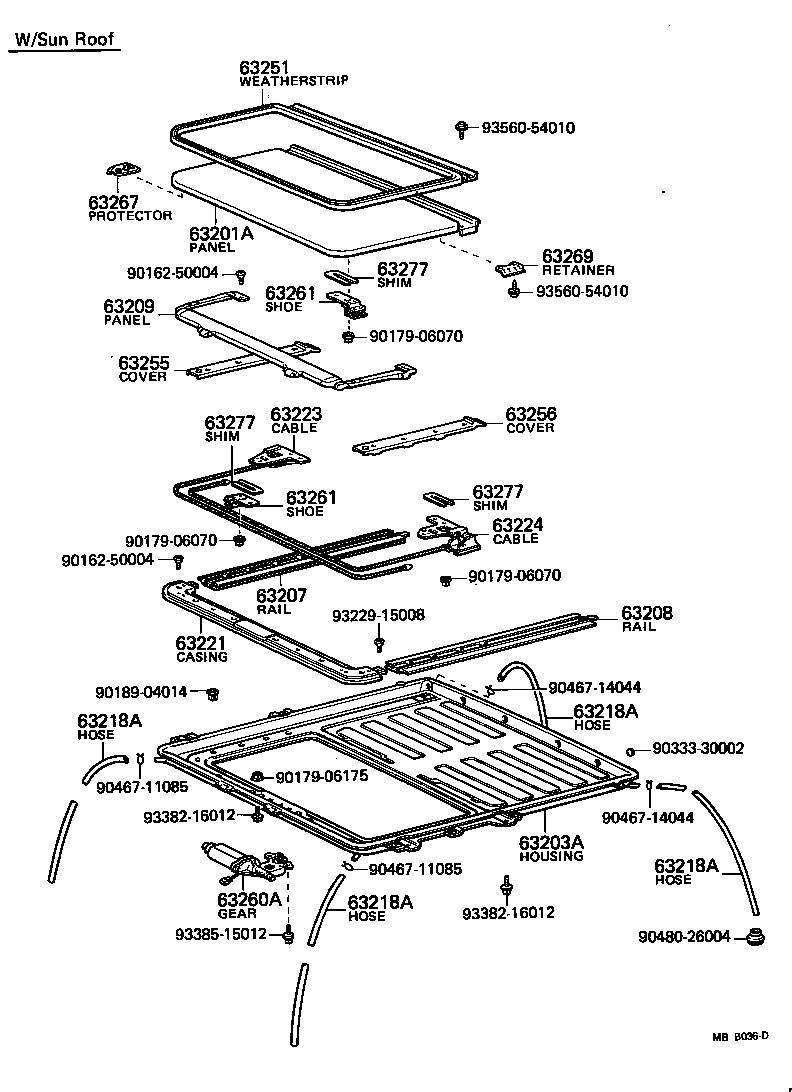

ILLUST NO. 2 OF 2(8002-8108)HT..ROY,SAL,SPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-30010 |
MS110,112..HT..(ROY,SAL,SPE) |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63251-30030 |
MS110,112..HT..(ROY,SAL,SPE) W/MOON ROOF |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
2 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63268-30010 |
MS110,112..HT..(ROY,SAL,SPE) LH,W/SUN ROOF |
1 | ||
| 63267-30010 |
MS110,112..HT..(ROY,SAL,SPE) RH,W/SUN ROOF |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
MS110,112..HT..(ROY,SAL,SPE) 48X28,W/SUN ROOF |
1 | ||
| 63277-30010 |
MS110,112..HT..(ROY,SAL,SPE) 73X28,W/SUN ROOF |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
MS110,112..HT..(ROY,SAL,SPE) 48X28,W/SUN ROOF |
1 | ||
| 63277-30010 |
MS110,112..HT..(ROY,SAL,SPE) 73X28,W/SUN ROOF |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
MS110,112..HT..(ROY,SAL,SPE) 48X28,W/SUN ROOF |
1 | ||
| 63277-30010 |
MS110,112..HT..(ROY,SAL,SPE) 73X28,W/SUN ROOF |
1 | ||
| Common parts | ||||
| 90162-50004 | ||||
| 90179-06070 | ||||
| 90179-06175 | ||||
| 90189-04014 | ||||
| 90333-30002 | ||||
| 90467-11085 | ||||
| 90467-14044 | ||||
| 90480-26004 | ||||
| 93229-15008 | ||||
| 93382-16012 | ||||
| 93385-15012 | ||||
| 93560-54010 | ||||

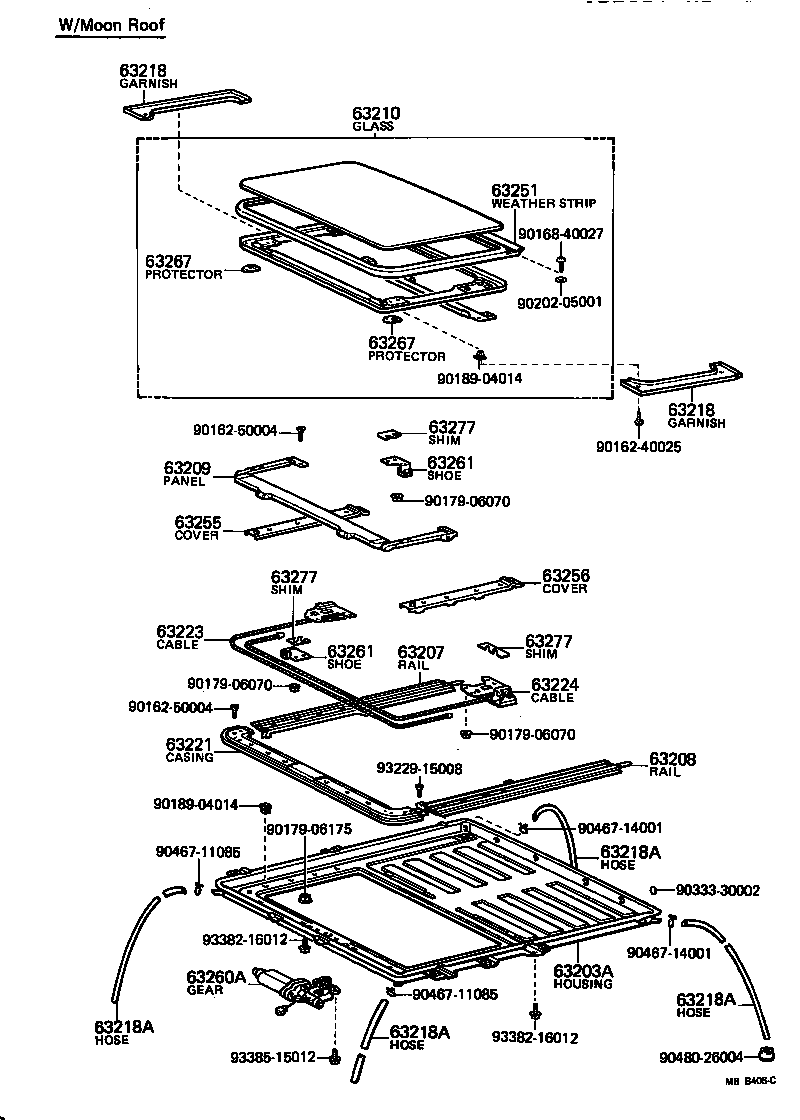

ILLUST NO. 2 OF 2(8006- )HT..ROY,SAL,SPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63218 - GARNISH, SLIDING ROOF, SIDE | ||||
| 63217-3001008 |
MS110,112..HT..(ROY,SAL,SPE) RH,W/MOON ROOF,IVORY,IVORY,TRIM3#,4# |
1 | ||
| 63217-3001004 |
MS110,112..HT..(ROY,SAL,SPE) RH,W/MOON ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 63218-3001008 |
MS110,112..HT..(ROY,SAL,SPE) LH,W/MOON ROOF,IVORY,IVORY,TRIM3#,4# |
1 | ||
| 63218-3001004 |
MS110,112..HT..(ROY,SAL,SPE) LH,W/MOON ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 63218 - GARNISH, SLIDING ROOF, SIDE | ||||
| 63217-3001008 |
MS110,112..HT..(ROY,SAL,SPE) RH,W/MOON ROOF,IVORY,IVORY,TRIM3#,4# |
1 | ||
| 63217-3001004 |
MS110,112..HT..(ROY,SAL,SPE) RH,W/MOON ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 63218-3001008 |
MS110,112..HT..(ROY,SAL,SPE) LH,W/MOON ROOF,IVORY,IVORY,TRIM3#,4# |
1 | ||
| 63218-3001004 |
MS110,112..HT..(ROY,SAL,SPE) LH,W/MOON ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63251-30030 |
MS110,112..HT..(ROY,SAL,SPE) W/MOON ROOF |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
2 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-30010 |
MS110,112..HT..(ROY,SAL,SPE) W/SUN ROOF |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63268-30010 |
MS110,112..HT..(ROY,SAL,SPE) LH,W/SUN ROOF |
1 | ||
| 63267-30010 |
MS110,112..HT..(ROY,SAL,SPE) RH,W/SUN ROOF |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63268-30010 |
MS110,112..HT..(ROY,SAL,SPE) LH,W/SUN ROOF |
1 | ||
| 63267-30010 |
MS110,112..HT..(ROY,SAL,SPE) RH,W/SUN ROOF |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
MS110,112..HT..(ROY,SAL,SPE) 48X28,W/SUN ROOF |
1 | ||
| 63277-30010 |
MS110,112..HT..(ROY,SAL,SPE) 73X28,W/SUN ROOF |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
MS110,112..HT..(ROY,SAL,SPE) 48X28,W/SUN ROOF |
1 | ||
| 63277-30010 |
MS110,112..HT..(ROY,SAL,SPE) 73X28,W/SUN ROOF |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
MS110,112..HT..(ROY,SAL,SPE) 48X28,W/SUN ROOF |
1 | ||
| 63277-30010 |
MS110,112..HT..(ROY,SAL,SPE) 73X28,W/SUN ROOF |
1 | ||
| Common parts | ||||
| 90162-40025 | ||||
| 90162-50004 | ||||
| 90168-40027 | ||||
| 90179-06070 | ||||
| 90179-06175 | ||||
| 90189-04014 | ||||
| 90202-05001 | ||||
| 90333-30002 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 90480-26004 | ||||
| 93229-15008 | ||||
| 93382-16012 | ||||
| 93385-15012 | ||||
