MS110-STKXS (1979)
Toyota Crown

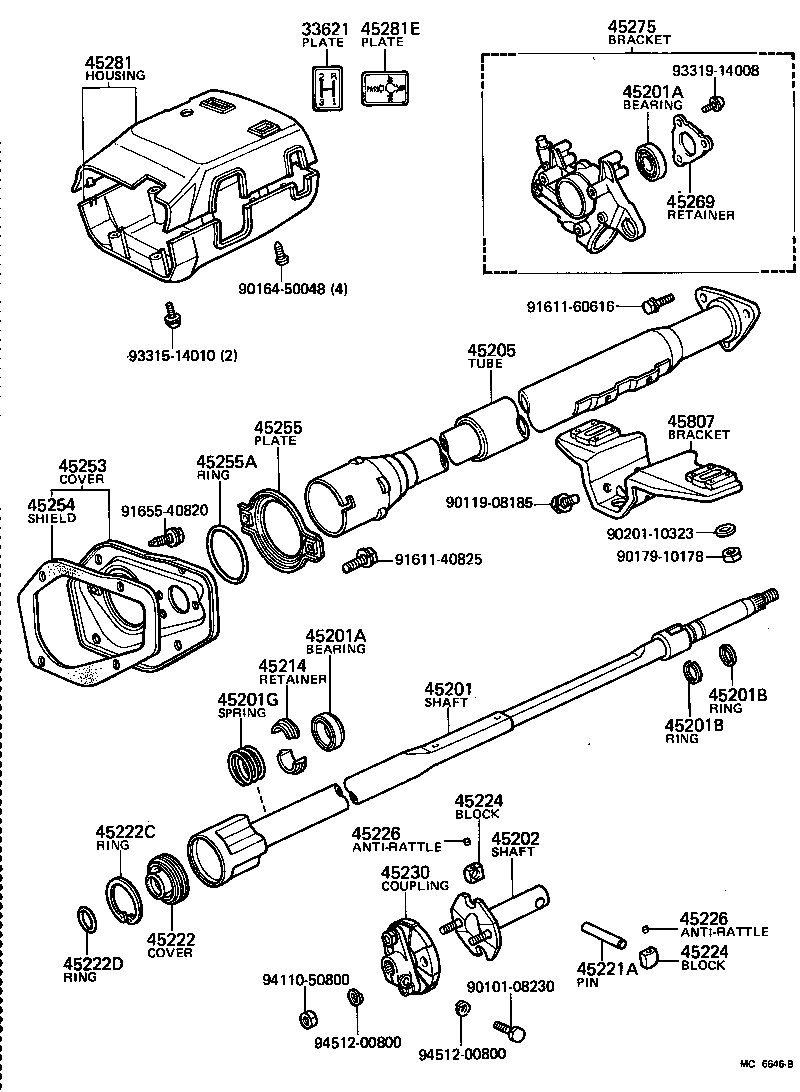

ILLUST NO. 2 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12004 | ||||
| 90105-12006 | ||||
| 91619-61225 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||

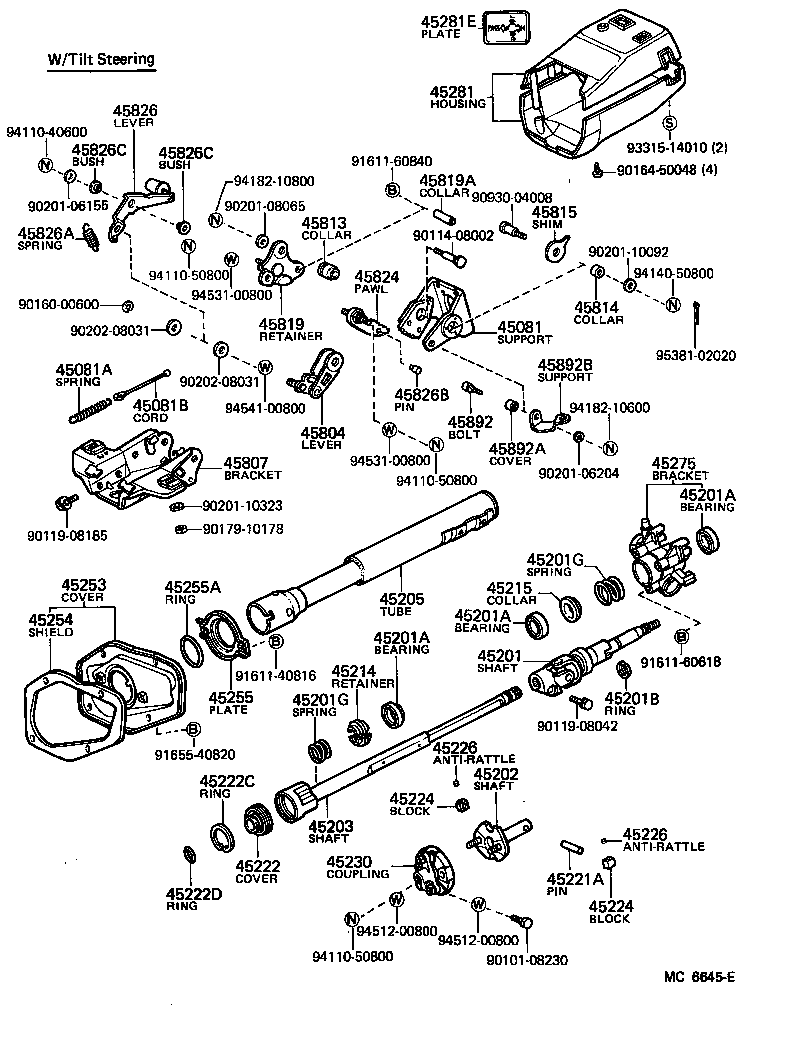

ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-30010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02043 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 長さ=130 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45210-30040 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) UPR |
1 | ||
| 90363-28001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90369-43027 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) UPR |
1 | ||
| 90363-28001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90369-43027 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) UPR |
1 | ||
| 90363-28001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90369-43027 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GS11#,LS11#,MS11#,RS110 厚さ=1.20,T=1.15-1.25 |
2 | ||
| 90520-17196 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) 厚さ=1.35−1.45,T=1.35-1.45 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90501-29388 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90501-29388 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-30030 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-30100 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45870-30110 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30030 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-30030 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS11#,LS11#,MS11#,RS110 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45225-30040 |
GS11#,LS11#,MS11#,RS110 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS11#,LS11#,MS11#,RS110 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45225-30040 |
GS11#,LS11#,MS11#,RS110 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-30060 |
GS11#,LS11#,MS11#,RS110..3FC,4F,4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-30070 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30240 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45280-24030 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE,STD) |
1 | ||
| 45280-30200 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE,STD) |
1 | ||
| 45280-30280 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3096202 |
LS110,MS110..HT..(4F,4FC,5F)..(CTE,DLX,SPE) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45286-3096304 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-3096205 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE,STD) GREIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3096302 |
LS110,MS110,112..HT..(4F,4FC,5F) DARK WINE,W/TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45286-3096204 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3096305 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) GREIGE,W/TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-30010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45807-30100 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22050 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45813-22030 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45813-22040 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 外径=17.982−18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 外径=18.000−18.018,D=18.000-18.010 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22070 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 厚さ=0.5,T=0.5 |
1 | ||
| 45815-22040 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) T=1.4 |
1 | ||
| 45815-22020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) T=0.5 |
1 | ||
| 45815-22090 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 厚さ=1.4,T=1.4 |
1 | ||
| 45815-22100 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22050 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) T=1.8 |
1 | ||
| 45815-22010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) T=0.2 |
1 | ||
| 45815-22030 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) T=0.8 |
1 | ||
| 45815-22080 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 厚さ=0.8,T=0.8 |
1 | ||
| 45815-22060 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) 厚さ=0.2,T=0.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45809-30020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45809-30021 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-30020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
2 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45089-30020 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90160-00600 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06155 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10092 | ||||
| 90201-10323 | ||||
| 90202-08031 | ||||
| 90930-04008 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91655-40820 | ||||
| 93315-14010 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 95381-02020 | ||||
ILLUST NO. 1 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45210-30040 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) UPR |
1 | ||
| 90363-28001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90369-43027 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) UPR |
1 | ||
| 90363-28001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,CTR |
1 | ||
| 90363-18001 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90369-43027 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GS11#,LS11#,MS11#,RS110 厚さ=1.20,T=1.15-1.25 |
2 | ||
| 90520-17196 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) 厚さ=1.35−1.45,T=1.35-1.45 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GS11#,LS11#,MS11#,RS110 厚さ=1.20,T=1.15-1.25 |
2 | ||
| 90520-17196 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) 厚さ=1.35−1.45,T=1.35-1.45 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING,UPR |
1 | ||
| 90501-29388 |
GS11#,LS11#,MS11#,RS110 LWR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-30100 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45870-30110 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30030 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-30030 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS11#,LS11#,MS11#,RS110 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45225-30040 |
GS11#,LS11#,MS11#,RS110 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45224-30040 |
GS11#,LS11#,MS11#,RS110 15.97−16.00,L=15.97-16.00 |
2 | ||
| 45225-30040 |
GS11#,LS11#,MS11#,RS110 16.00−16.03,L=16.00-16.03 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-30060 |
GS11#,LS11#,MS11#,RS110..3FC,4F,4FC,5F |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-30070 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30240 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45280-24030 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE,STD) |
1 | ||
| 45280-30200 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE,STD) |
1 | ||
| 45280-30280 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3096202 |
LS110,MS110..HT..(4F,4FC,5F)..(CTE,DLX,SPE) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45286-3096304 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-3096205 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE,STD) GREIGE,BEIGE,TRIM4# |
1 | ||
| 45286-3096302 |
LS110,MS110,112..HT..(4F,4FC,5F) DARK WINE,W/TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45286-3096204 |
LS11#,MS110,117..(4F,5F)..(BTP,CTE,DLX,SDX,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-3096305 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) GREIGE,W/TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-30010 |
LS11#,MS11#..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE) W/TILT STEERING |
1 | ||
| 45807-30100 |
GS110,LS11#,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40825 | ||||
| 91611-60616 | ||||
| 91655-40820 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

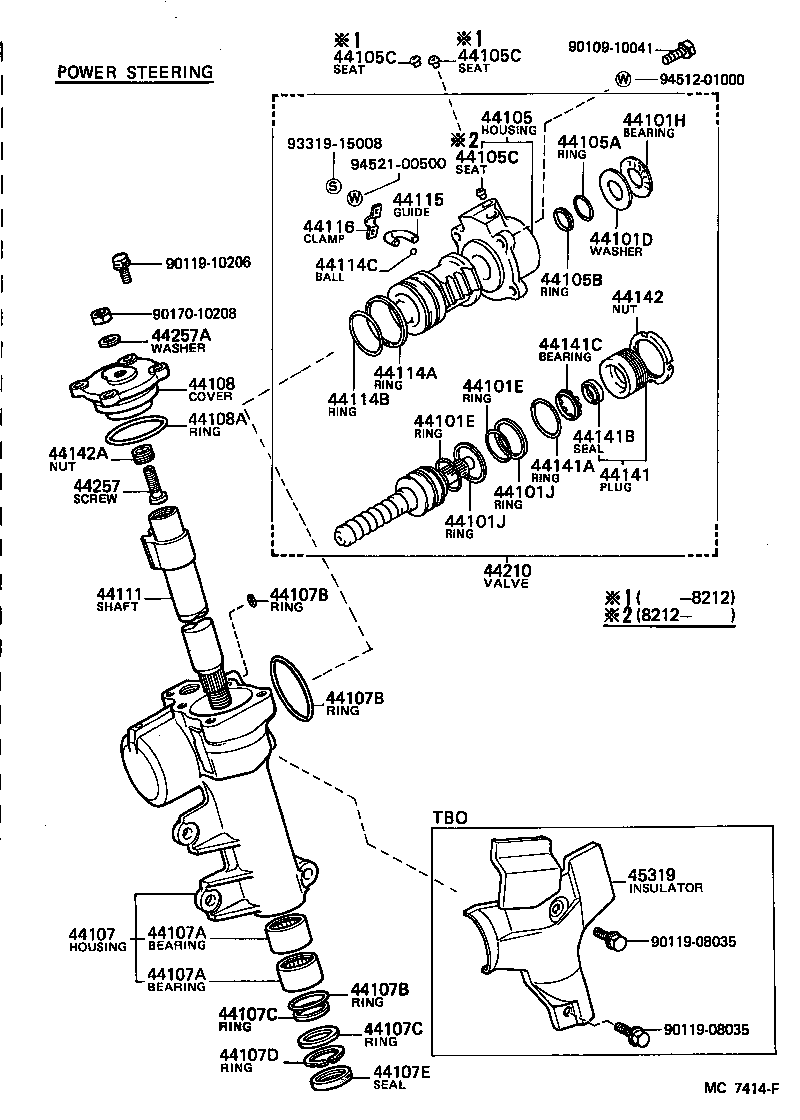

ILLUST NO. 2 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30050 |
GS110,LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-05035 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-05035 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-05035 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-30070 |
LS11#,MS110,RS110..BTP,CTE,DLX,SDX |
1 | ||
| 44107-30070 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE OD=13,T=1.9 |
1 | ||
| 90301-33002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE OD=13,T=1.9 |
1 | ||
| 90301-33002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE OD=13,T=1.9 |
1 | ||
| 90301-33002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=32,外径=40,OD=40,T=3 |
1 | ||
| 90562-31002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=32,外径=40,OD=40,T=3 |
1 | ||
| 90562-31002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE 内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-30030 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-61001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-30050 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-20010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-20010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-30020 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-30080 |
GS110,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| Common parts | ||||
| 90109-10041 | ||||
| 90119-08035 | ||||
| 90119-10206 | ||||
| 90170-10208 | ||||
| 93319-15008 | ||||
| 94512-01000 | ||||
| 94521-00500 | ||||
ILLUST NO. 3 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101K - WORM KIT, POWER STEERING | ||||
| 04044-30070 |
GS11#,LS11#,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-30100 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-30070 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-30010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-39195 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| Common parts | ||||
| 90105-12006 | ||||
| 90119-06047 | ||||
| 90301-06179 | ||||
| 90461-06404 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
| 96711-19018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
