MS110-STKXS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MJ,MU..CBR

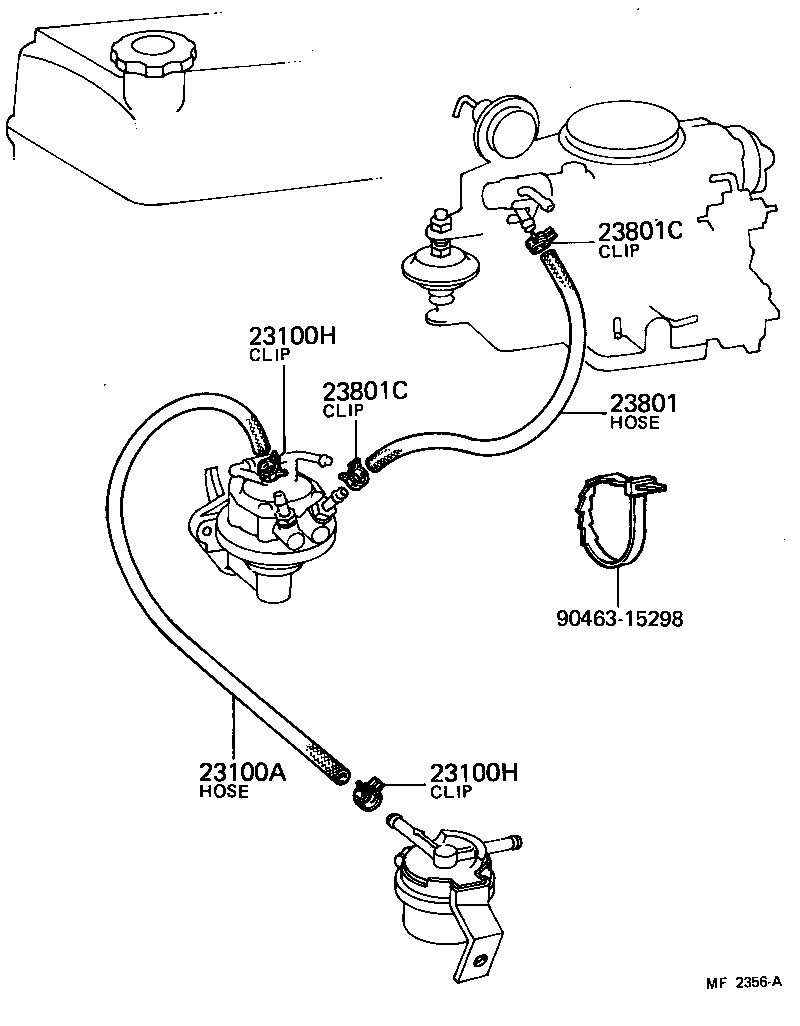

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23801 23801C 23801C 9046315298
Part # Description Qty Price
23100A - HOSE, FUEL
95332-08040

MJ,MU..MS110,117..CBR

*H,L=360

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30800

MJ,MU..MS110,117..CBR

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

MJ,MU..MS110,117..CBR

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-08040

MJ,MU..MS110,117..CBR

*H,L=340,内径=7.6

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

MJ,MU..MS110,117..CBR

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

MJ,MU..MS110,117..CBR

 2
Common parts
90463-15298
