MS110-STKDS (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
MU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )MU..CBR

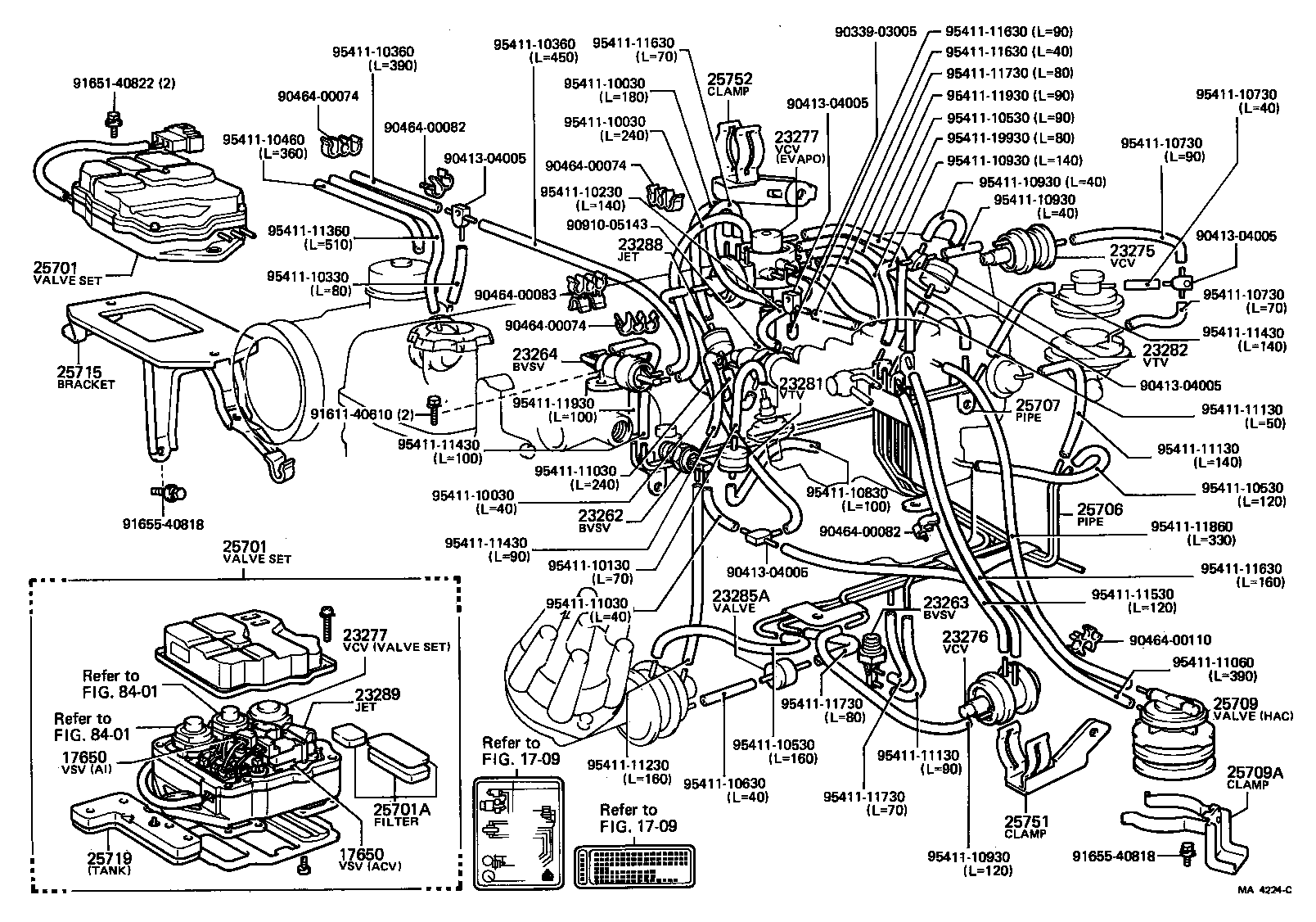

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30040 |
MU..MS110..CBR AI |
1 | ||
| 89570-30030 |
MU..MS110..CBR ACV |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30040 |
MU..MS110..CBR AI |
1 | ||
| 89570-30030 |
MU..MS110..CBR ACV |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05046 |
5MGEU,MTEU,MU..MS110,112..CBR,TBO,TWC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05017 |
MU..MS110..CBR |
1 | ||
| 23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3 | ||||
| 90925-05011 |
MU..MS110..CBR |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03080 |
MU..MS110..CBR |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03081 |
MU..MS110..CBR |
1 | ||
| 23277 - VALVE, VACUUM CONTROL, NO.3 | ||||
| 90925-03083 |
MU..MS110..CBR VALVE SET |
1 | ||
| 90925-03079 |
MU..MS110..CBR EVAPO |
1 | ||
| 23277 - VALVE, VACUUM CONTROL, NO.3 | ||||
| 90925-03083 |
MU..MS110..CBR VALVE SET |
1 | ||
| 90925-03079 |
MU..MS110..CBR EVAPO |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01042 |
MJ,MU..MS110,117..CBR |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01067 |
MU..MS110..CBR |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10059 |
MU..MS110..CBR |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
MJ,MU..MS110,117..CBR |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04020 |
MU..MS110..CBR |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-41020 |
MU..MS110..CBR |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-41020 |
MU..MS110..CBR |
1 | ||
| 25701A - FILTER, AIR | ||||
| 90925-06005 |
MU..MS110..CBR |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-41030 |
MU..MS110..CBR |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-41010 |
MU..MS110..CBR |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-41030 |
MU..MS110..CBR |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90461-10178 |
MU..MS110..CBR |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-41030 |
MU..MS110..CBR |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-41020 |
MU..MS110..CBR |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-45011 |
MU..MS110..CBR |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25752-41030 |
MU..MS110..CBR |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00083 | ||||
| 90464-00110 | ||||
| 90910-05143 | ||||
| 91611-40610 | ||||
| 91651-40822 | ||||
| 91655-40818 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10360 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10730 | ||||
| 95411-10830 | ||||
| 95411-10930 | ||||
| 95411-11030 | ||||
| 95411-11060 | ||||
| 95411-11130 | ||||
| 95411-11230 | ||||
| 95411-11360 | ||||
| 95411-11430 | ||||
| 95411-11530 | ||||
| 95411-11630 | ||||
| 95411-11730 | ||||
| 95411-11860 | ||||
| 95411-11930 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
(7909- )L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
(7909- )MEU,MJ,5M#,MTEU,MU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
