MS110-STHZE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)HT..CBR,DSL,EFI

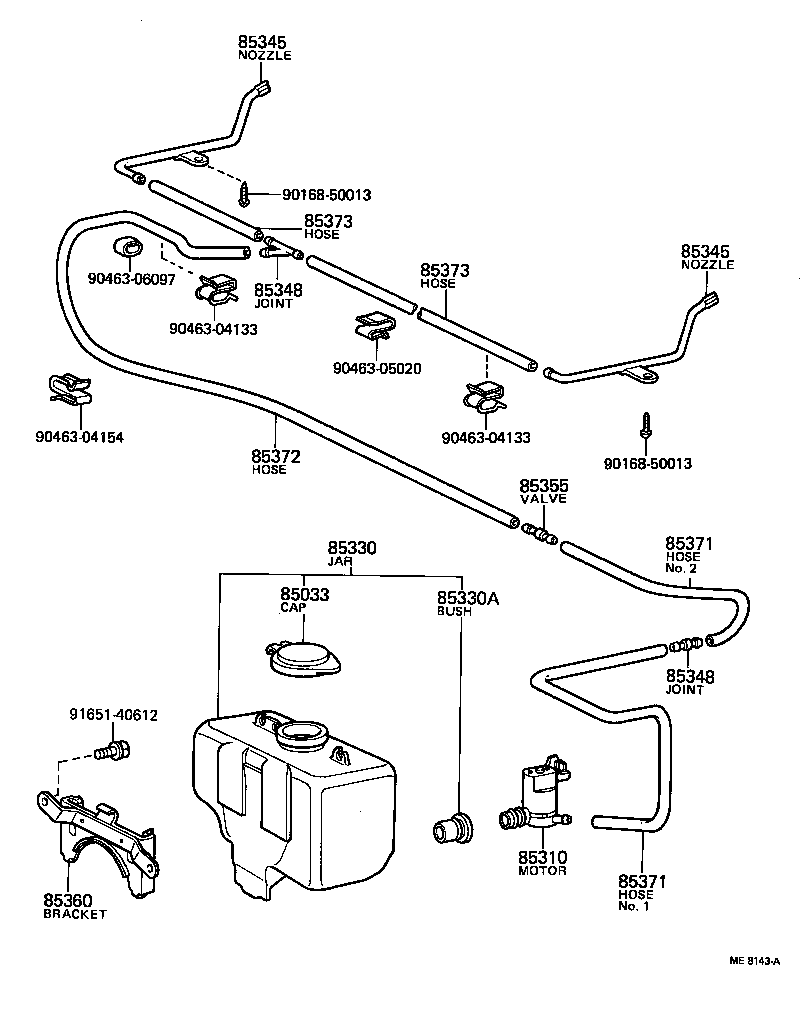

Click highlighted areas on diagram

diagram 85033 85310 85330 85330A 85345 85345 85348 85348 85355 85360 85371 85371 85372 85373 85373 9016850013 9016850013 9046304133 9046304133 9046304154 9046305020 9046306097 9165140612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

LS11#,MS110,112,RS110..CBR,DSL,EFI,LPG

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

LS11#,MS11#,RS110

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-30120

LS110,MS110,112..HT..(CBR,DSL,EFI)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-30060

LS11#,MS11#,RS110

LH

 1
85345-30060

LS11#,MS11#,RS110

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-30060

LS11#,MS11#,RS110

LH

 1
85345-30060

LS11#,MS11#,RS110

RH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

LS110,117,MS11#,RS110

2 WAY

 2
85355-14010

GS11#,LS11#,MS11#,RS110

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

LS110,117,MS11#,RS110

2 WAY

 2
85355-14010

GS11#,LS11#,MS11#,RS110

3 WAY

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-30010

LS11#,MS11#,RS110

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85036-30020

LS110,MS110,112..HT..(CBR,DSL,EFI)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

LS11#,MS11#,RS110

*H,L=400,NO.2

 1
90099-33299

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

*H,L=400,NO.1

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

LS11#,MS11#,RS110

*H,L=400,NO.2

 1
90099-33299

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

*H,L=400,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07005

LS11#,MS11#,RS110

*H,L=1200

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LS11#,MS11#,RS110

*H,L=80

 1
90446-06013

GS11#,LS11#,MS11#,RS110

長さ=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LS11#,MS11#,RS110

*H,L=80

 1
90446-06013

GS11#,LS11#,MS11#,RS110

長さ=450

 1
Common parts
90168-50013
90463-04133
90463-04154
90463-05020
90463-06097
91651-40612
