MS110-STHZE (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
MEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

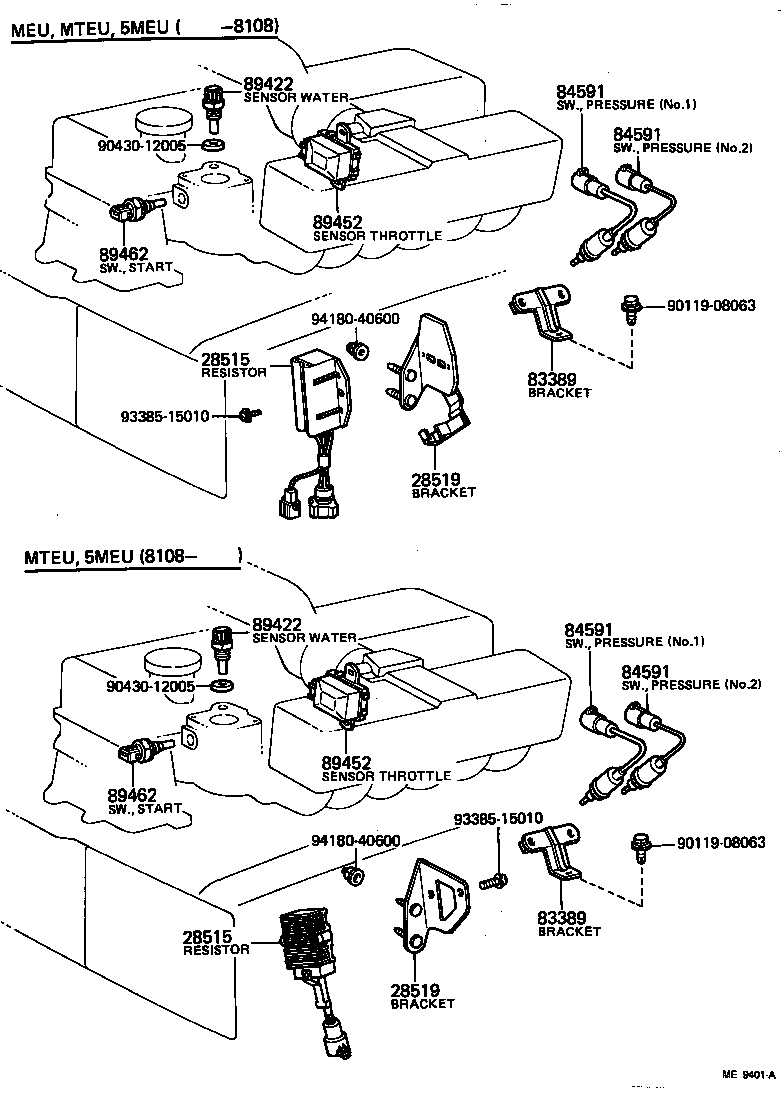

ILLUST NO. 1 OF 2(7909-8108)EFI,TBO ; (8108- )MS110,112..EFI,TBO
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-41010 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-41010 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-41020 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-41020 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22010 |
GS11#,MS110,112..EFI,TBO |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22010 |
GS11#,MS110,112..EFI,TBO |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
MS110,112..EFI,TBO,TWC |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
MS110,112..EFI,TBO,TWC |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90430-12005 | ||||
| 93385-15010 | ||||
| 94180-40600 | ||||

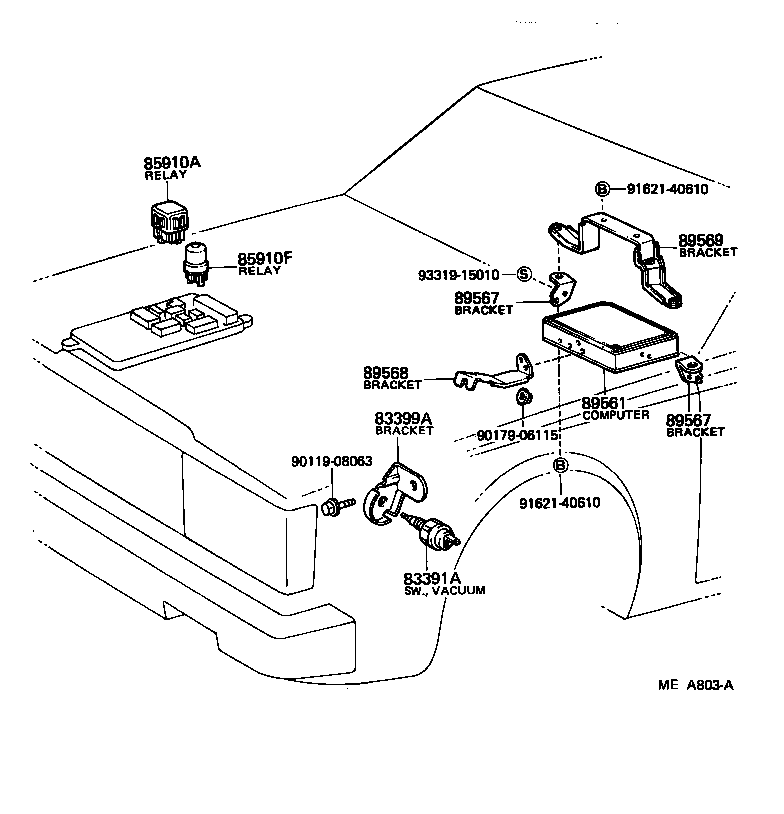

ILLUST NO. 2 OF 2(7909- )EFI,TBO,TWC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02001 |
MS110,112..EFI |
1 | ||
| 89561 - COMPUTER, FUEL INJECTION | ||||
| 89561-30080 |
MS110..EFI |
1 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89567-30060 |
MS110,112..EFI,TBO |
2 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89567-30060 |
MS110,112..EFI,TBO |
2 | ||
| 89568 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89568-30070 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| 89569 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89569-30040 |
GS11#,MS110,112..EFI,TBO,TWC |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90179-06115 | ||||
| 91621-40610 | ||||
| 93319-15010 | ||||
