MS110-STHZE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MEU,5MEU

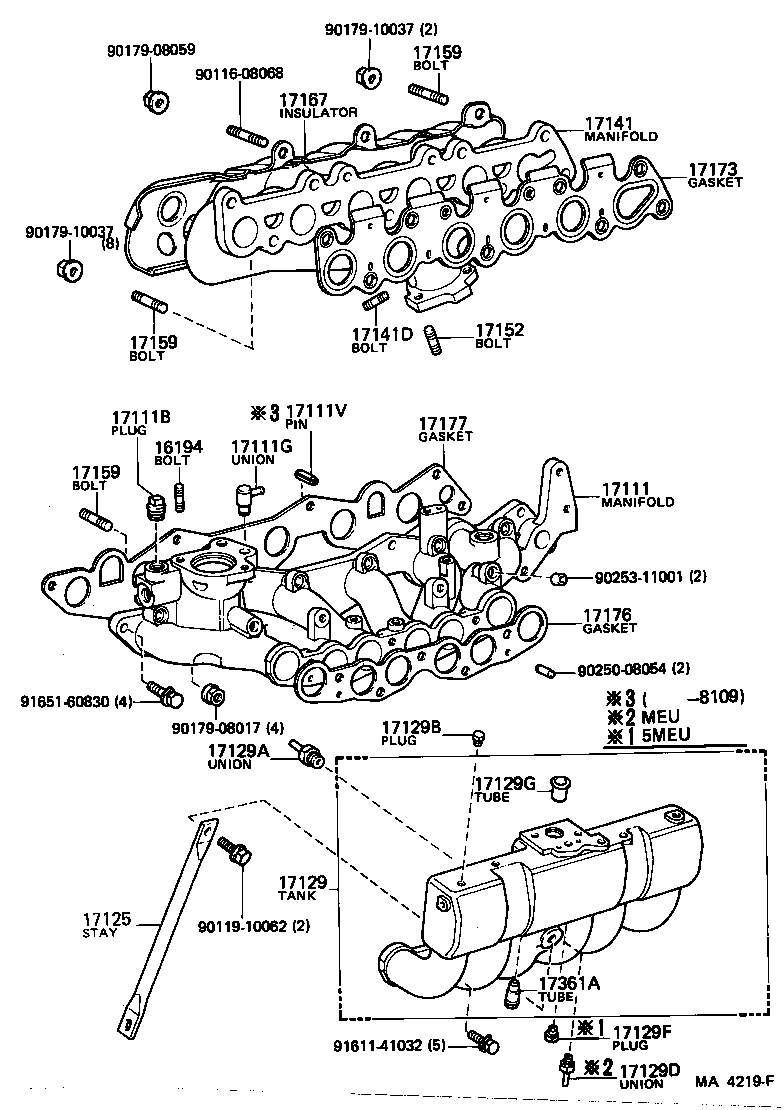

Click highlighted areas on diagram

diagram 16194 17111 17111B 17111G 17111V 17125 17129 17129A 17129B 17129D 17129F 17129G 17141 17141D 17152 17159 17159 17159 17167 17173 17176 17177 17361A 9011608068 9011910062 9017908017 9017908059 9017910037 9017910037 9025008054 9025311001 9161141032 9165160830
Part # Description Qty Price
16194 - BOLT, STUD(FOR WATER OUTLET SETTING)
90116-08025

MEU,MJ,5MEU,MTEU,MU..MS11#

L=34,S=16&11

 2
17111 - MANIFOLD, INTAKE
17111-45080

MEU,5MEU,MTEU..MS110,112

 1
17111B - PLUG, NO.2
90345-53030

MEU,5MEU,MTEU,MU..MS110,112..CBR,EFI,TBO

 1
17111G - UNION(FOR INTAKE MANIFOLD WATER)
90407-52005

MEU,5MEU,MTEU..MS110,112

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90254-08001

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
17125 - STAY, SURGE TANK, NO.1
17125-41020

MEU,5MEU,MTEU..MS110,112

 1
17129 - TANK, INTAKE AIR SURGE
17109-41050

MEU,5MEU,MTEU..MS110,112

 1
17129A - UNION, NO.1
90404-53029

MEU,5MEU..MS110,112

 1
17129B - PLUG
90072-34107

MEU,5MEU,MTEU..MS110,112

 2
17129D - UNION, NO.2
90404-51093

MEU..MS110

 1
17129G - TUBE, EGR INLET
25619-45010

MEU,5MEU,MTEU..MS110,112

 1
17141 - MANIFOLD, EXHAUST
17141-41060

MEU,5MEU,MU..MS110,112..CBR,EFI

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

MEU,MJ,5MEU,MTEU,MU..MS11#

L=28,S=14&8

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

MEU,MJ,5MEU,MTEU,MU..MS11#

L=41,S=21&14

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10025

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,UPR,L=57,S=15&31

 7
90116-10024

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,LWR,L=53,S=15&29

 3
90116-08020

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE,L=44,S=12&18

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10025

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,UPR,L=57,S=15&31

 7
90116-10024

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,LWR,L=53,S=15&29

 3
90116-08020

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE,L=44,S=12&18

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10025

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,UPR,L=57,S=15&31

 7
90116-10024

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,LWR,L=53,S=15&29

 3
90116-08020

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE,L=44,S=12&18

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-41010

MEU,5MEU,MU..MS110,112..EFI,LPG

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45030

MEU,MJ,5MEU,MU..MS11#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-41030

MEU,5MEU,MTEU..MS110,112

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-41030

MEU,5MEU,MTEU..MS110,112

 1
17361A - TUBE, AIR(FOR EFI)
17361-41010

MEU,5MEU,MTEU..MS110,112

 1
Common parts
90116-08068
90119-10062
90179-08017
90179-08059
90179-10037
90250-08054
90253-11001
91611-41032
91651-60830
