MS110-STHXS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)HT

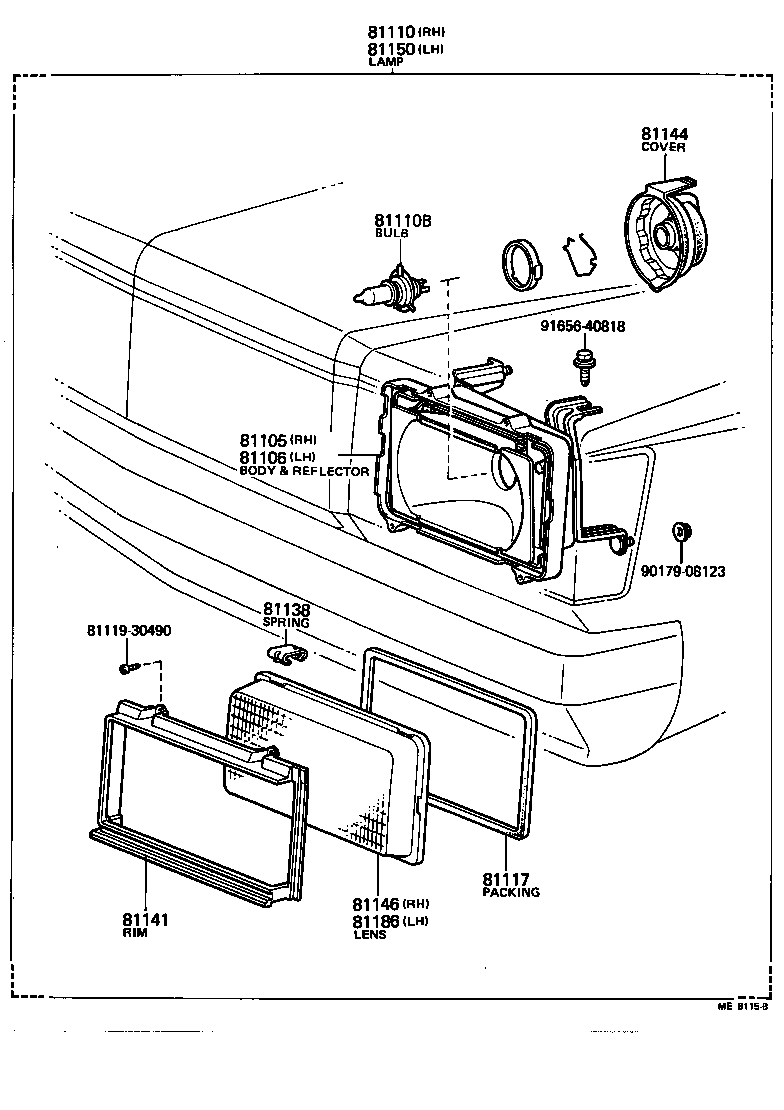

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81117 8111930490 81138 81141 81144 81146 81150 81186 9017908123 9165640818
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81115-30490

LS110,MS110,112..HT

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81116-30600

LS110,MS110,112..HT

 1
81110 - HEADLAMP ASSY, RH
81110-39585

LS110,MS110,112..HT

HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LS110,MS110,112..HT

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81117 - PACKING, HEADLAMP HOUSING
81147-30490

LS110,MS110,112..HT

 2
81138 - SPRING, HEADLAMP
81138-30490

LS110,MS110,112..HT

 12
81138-20550

LS110,MS110,112..HT

 12
81141 - RING, HEADLAMP ORNAMENTAL
81141-30490

LS110,MS110,112..HT

RH

 1
81181-30600

LS110,MS110,112..HT

LH

 1
81144 - COVER, HEADLAMP, NO.1
81139-30490

LS110,MS110,112..HT

 2
81146 - LENS, HEADLAMP, RH
81146-30490

LS110,MS110,112..HT

 1
81150 - HEADLAMP ASSY, LH
81150-39585

LS110,MS110,112..HT

HALOGEN

 1
81186 - LENS, HEADLAMP, LH
81186-30600

LS110,MS110,112..HT

 1
Common parts
81119-30490
90179-08123
91656-40818
