Toyota Crown MS110 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46130 - BRACKET ASSY, PARKING BRAKE PEDAL
46130-30020	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46201-30010	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46201A - CUSHION(FOR PARKING BRAKE PEDAL)
90541-01001	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46201C - SHAFT, PEDAL
90109-10033	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	2
46201D - BUSH(FOR PARKING BRAKE PEDAL)
90386-16022	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	2
46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE
46209-30010	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE)
90501-08030	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46219 - STOPPER, PARKING PEDAL
90541-07008	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46252 - PAD, PARKING PEDAL
46252-20010	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46261 - LEVER, PARKING BRAKE RELEASE INTERMEDIATE
46261-30020	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46265 - GUIDE, PARKING BRAKE RELEASE ROD
46265-30020	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46267 - CUSHION, RELEASE ROD GUIDE INTERMEDIATE
46266-30010	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90506-07007	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46301-30140	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90506-20010	GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F	09/1979 - 07/1983	1
46353 - CUSHION, INTERMEDIATE LEVER
46353-30020	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46357 - BRACKET, LEVER SUPPORT
46359-30070	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30280	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-33003	GS110,LS110,111,MS110,112..ATM	09/1979 - 07/1983	1
46410D - PIN(FOR PARKING BRAKE FRONT CABLE)
90249-10012	GS110,LS110,111,MS110,112..ATM PEDAL X CABLE	09/1979 - 07/1983	1
90240-08028	GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F LEVER X CABLE	09/1979 - 07/1983	1
46410D - PIN(FOR PARKING BRAKE FRONT CABLE)
90249-10012	GS110,LS110,111,MS110,112..ATM PEDAL X CABLE	09/1979 - 07/1983	1
90240-08028	GS11#,LS11#,MS11#,RS110..3FC,3HC,4F,4FC,4HC,5F LEVER X CABLE	09/1979 - 07/1983	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-30110	LS110,MS110..(3FC,3HC,4F,4FC,4HC,5F)..(BTP,CTE,DLX,SDX,SPE,STD)	09/1979 - 08/1981	1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08028	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	2
46451 - BRACKET, CABLE SUPPORT
46451-30071	RS110..BTP,DLX;GS11#,LS11#,MS11#	09/1979 - 07/1983	1
46458 - RETAINER, CABLE
46458-30040	LS110,MS110,112,RS110	09/1979 - 04/1980	1
46459 - GUIDE, CABLE
46459-30010	GS110,LS11#,MS11#,RS110	09/1979 - 05/1982	1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-31011	GS11#,MS11#..CBR,EFI,TBO,TWC	09/1979 - 07/1983	1
46479 - LEVER, CABLE GUIDE SAPPORT, NO.2
46479-30010	LS11#,MS11#..CBR,DSL,EFI,TBO	10/1980 - 08/1981	1
46479-30010	LS11#,MS11#	09/1979 - 10/1980	1
Common parts
90109-05004
90109-08102
90119-08126
90119-08198
90179-08146
90206-08016
90468-08001
91611-40614
91611-40816
91615-40616
91615-60614
91656-40822
94110-40600
94110-51000
94115-40500
94511-01000
94611-10501
95381-02020
96150-01000
96160-00600

MS110-STHXS (1979)

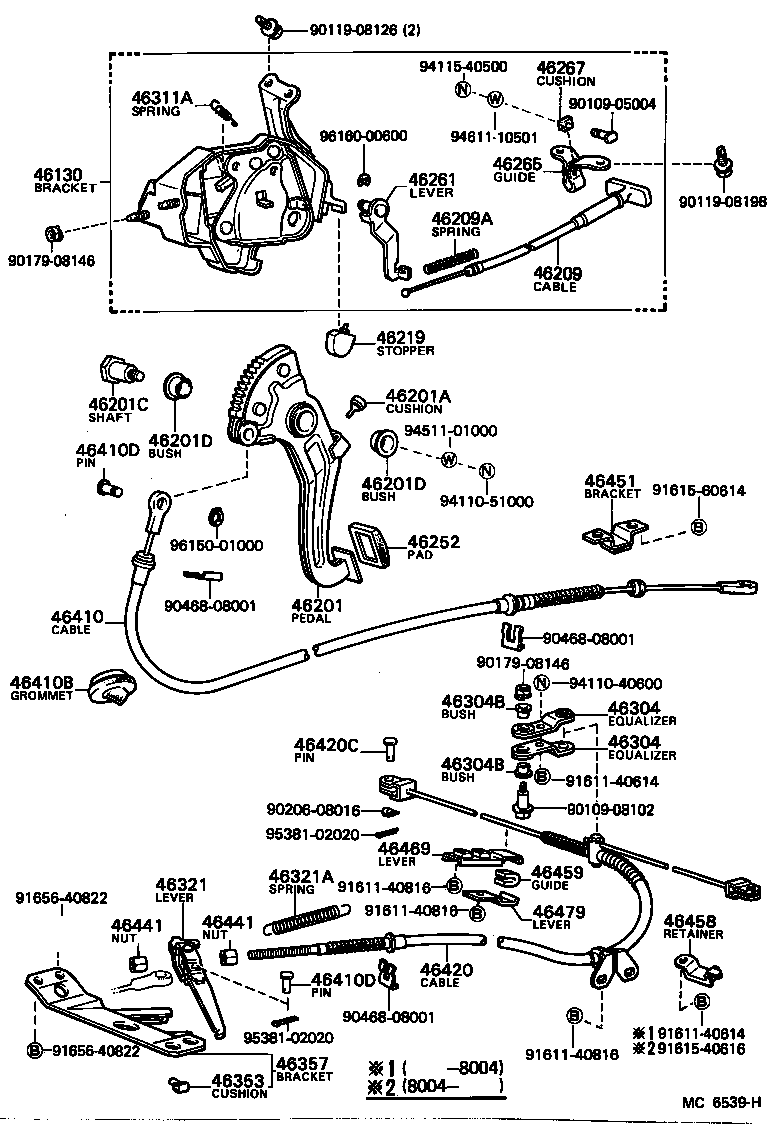

ILLUST NO. 1 OF 2(7909- )GS110,LS110,111,MS110,112..ATM
