MS110-STHXS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )CBR

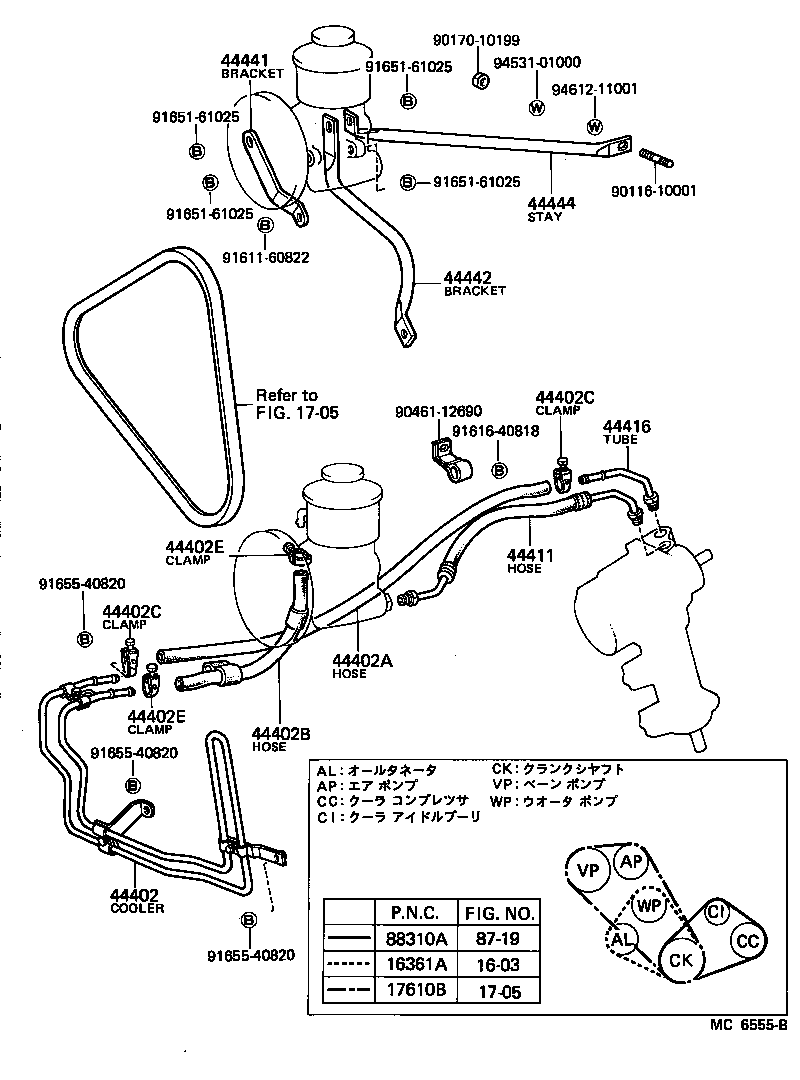

Click highlighted areas on diagram

diagram 1603 16361A 1705 1705 17610B 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44441 44442 44444 8719 88310A 9011610001 9017010199 9046112690 9161160822 9161640818 9165161025 9165161025 9165161025 9165161025 9165540820 9165540820 9165540820 9453101000 9461211001
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

MEU,MJ,5M#,MTEU,MU..MS11#

L=925

 1
17610B - BELT, V(FOR AIR PUMP)
99332-01395

MJ,MU..MS110,117..(BTP,CTE,DLX,SDX)..CBR

W/POWER STEERING

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30071

MS11#,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,LPG)

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18065

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
90445-18065

MS11#,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,LPG)

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18002

MS11#..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,LPG)

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44411 - HOSE, PRESSURE FEED
44411-30110

MS110,117..(BTP,CTE,DLX,SDX)..CBR

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30030

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
44441 - BRACKET, PUMP, FRONT
44441-30040

MS110,117..(BTP,CTE,DLX,SDX)..CBR

 1
44442 - BRACKET, PUMP, REAR
44442-30060

MS110,117..(BTP,CTE,DLX,SDX)..CBR

 1
44444 - STAY, PUMP, REAR
44444-22040

MS110..(BTP,CTE,DLX,SDX)..CBR

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00940

MS11#..CBR,EFI,TBO

 1
Common parts
90116-10001
90170-10199
90461-12690
91611-60822
91616-40818
91651-61025
91655-40820
94531-01000
94612-11001
Linked diagrams
1603
1705
8719
