MS110-STHXS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MJ,MU..CBR

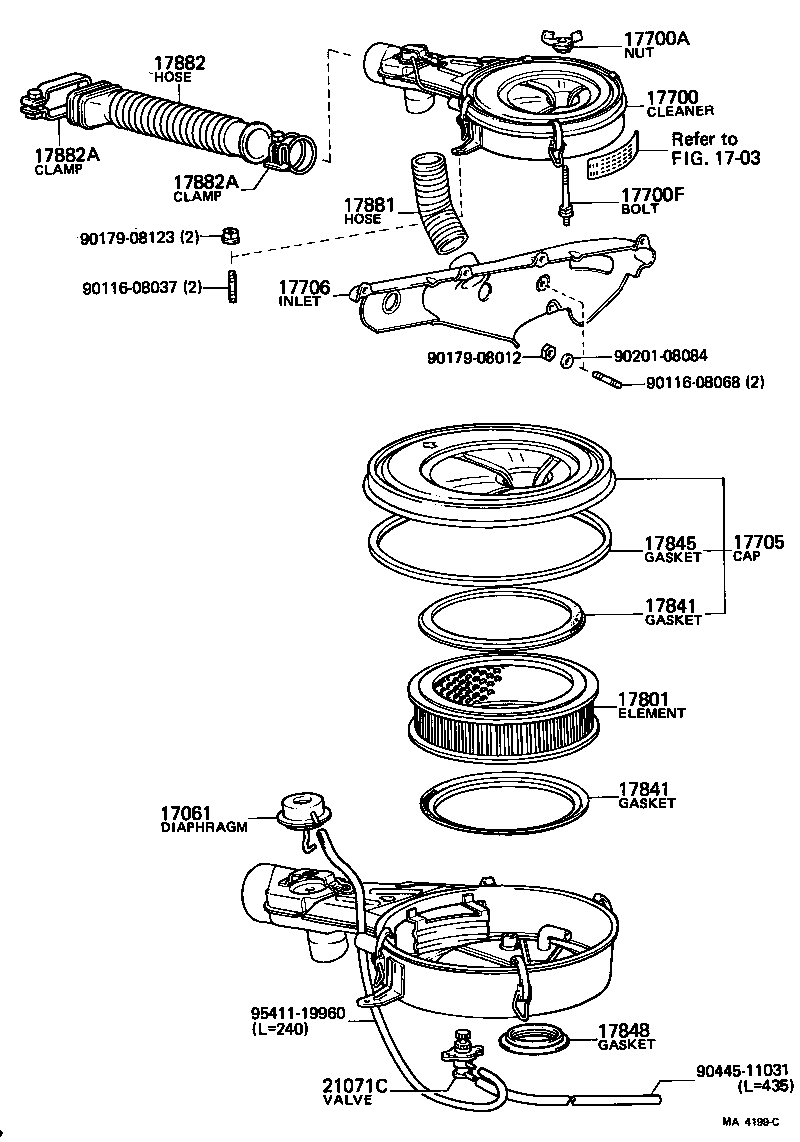

Click highlighted areas on diagram

diagram 1703 17061 17700 17700A 17700F 17705 17706 17801 17841 17841 17845 17848 17881 17882 17882A 17882A 21071C 9011608037 9011608068 9017908012 9017908123 9020108084 9044511031 9541119960
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-41010

MJ,MU..MS110,117..CBR

W/HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-41500

MJ,MU..MS110,117..CBR

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

MJ,MU..MS110,117

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222

MJ,MU..MS110,117..CBR

L=80,S=12&28

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-41130

MJ,MU..MS110,117

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-41011

MU..MS110..CBR

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090

MJ,MU..MS110,117..CBR

 1
17841 - GASKET, FILTER ELEMENT
17841-41050

MJ,MU..MS110,117

 2
17841 - GASKET, FILTER ELEMENT
17841-41050

MJ,MU..MS110,117

 2
17845 - GASKET, AIR CLEANER CAP
17845-41040

MJ,MU..MS110,117

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72003

MJ,MU..MS110,117..CBR

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26010

MJ,MU..MS110,117..CBR

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-41100

MJ,MU..MS110,117..CBR

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01008

MJ,MU..MS110,117..CBR

BODY SIDE

 1
96111-10710

MJ,MU..MS110,117..CBR

AIR CLEANER SIDE,ID=71

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01008

MJ,MU..MS110,117..CBR

BODY SIDE

 1
96111-10710

MJ,MU..MS110,117..CBR

AIR CLEANER SIDE,ID=71

 1
21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER)
17728-41030

MJ,MU..MS110,117..CBR

 1
Common parts
90116-08037
90116-08068
90179-08012
90179-08123
90201-08084
90445-11031
95411-19960
Linked diagrams
1703
