MS110-STHXS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MJ,MU..CBR

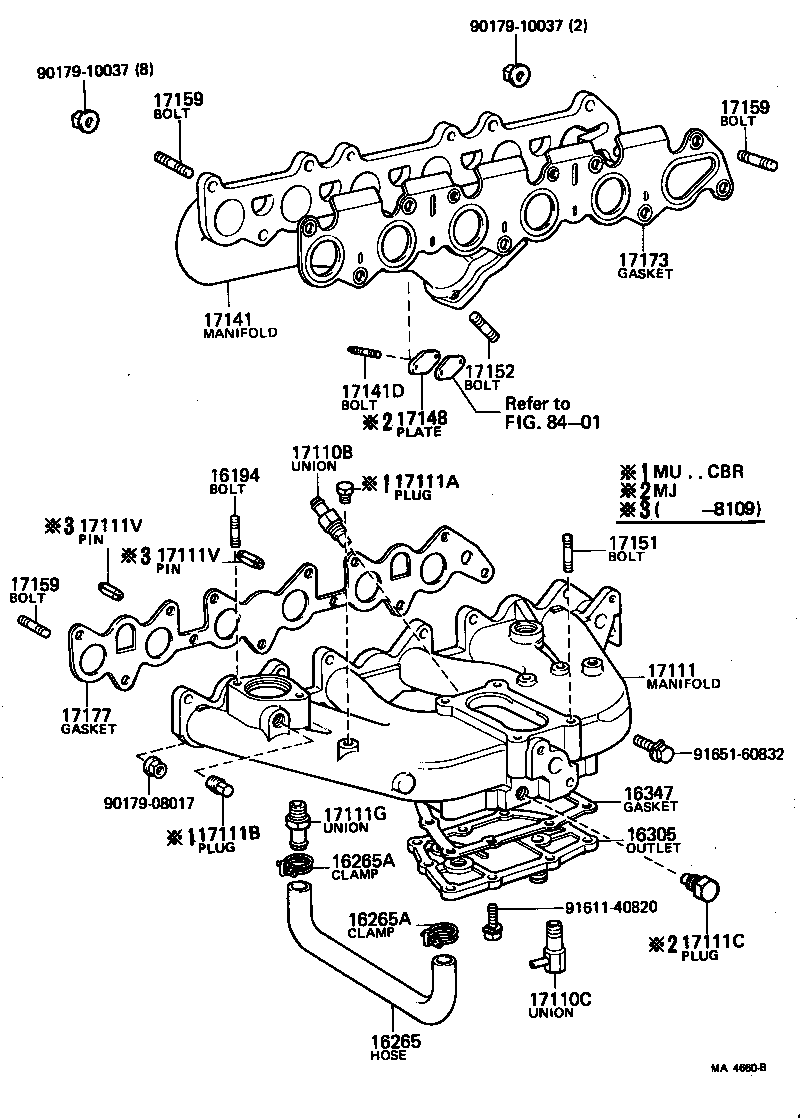

Click highlighted areas on diagram

diagram 16194 16265 16265A 16265A 16305 16347 17110B 17110C 17111 17111A 17111B 17111C 17111G 17111V 17111V 17141 17141D 17148 17151 17152 17159 17159 17159 17173 17177 8401 9017908017 9017910037 9017910037 9161140820 9165160832
Part # Description Qty Price
16194 - BOLT, STUD(FOR WATER OUTLET SETTING)
90116-08025

MEU,MJ,5MEU,MTEU,MU..MS11#

L=34,S=16&11

 2
16265 - HOSE, INTAKE MANIFOLD WATER
16261-45031

MJ,MU..MS110,117..CBR

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96112-10220

MJ,MU..MS110,117..CBR

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96112-10220

MJ,MU..MS110,117..CBR

 2
16305 - OUTLET SUB-ASSY, WATER BY-PASS
16351-45010

MJ,MU..MS110,117..CBR

 1
16347 - GASKET, WATER BY-PASS
16347-45020

MJ,MU..MS110,117..CBR

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-52007

MJ,MU..MS110,117

 1
17110C - UNION(FOR AIR CLEANER TO MANIFOLD)
90407-52004

MJ,MU..MS110,117..CBR

 1
17111 - MANIFOLD, INTAKE
17111-41160

MJ,MU..MS110,117

 1
17111A - PLUG, NO.1
90345-51025

MU..MS110

W/O ESC

 1
17111B - PLUG, NO.2
90345-53030

MEU,5MEU,MTEU,MU..MS110,112..CBR,EFI,TBO

 1
17111G - UNION(FOR INTAKE MANIFOLD WATER)
90404-53001

MJ,MU..MS110,117

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90254-08001

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90254-08001

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
17141 - MANIFOLD, EXHAUST
17141-41060

MEU,5MEU,MU..MS110,112..CBR,EFI

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

MEU,MJ,5MEU,MTEU,MU..MS11#

L=28,S=14&8

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92112-40828

MJ,MU..MS110,117..CBR

L=38,S=10&16

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

MEU,MJ,5MEU,MTEU,MU..MS11#

L=41,S=21&14

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10025

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,UPR,L=57,S=15&31

 7
90116-10024

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,LWR,L=53,S=15&29

 3
90116-08020

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE,L=44,S=12&18

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10025

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,UPR,L=57,S=15&31

 7
90116-10024

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,LWR,L=53,S=15&29

 3
90116-08020

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE,L=44,S=12&18

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10025

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,UPR,L=57,S=15&31

 7
90116-10024

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST,LWR,L=53,S=15&29

 3
90116-08020

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE,L=44,S=12&18

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45030

MEU,MJ,5MEU,MU..MS11#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-45022

MJ,MU..MS110,117

 1
Common parts
90179-08017
90179-10037
91611-40820
91651-60832
Linked diagrams
8401
