MS110-STHXE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

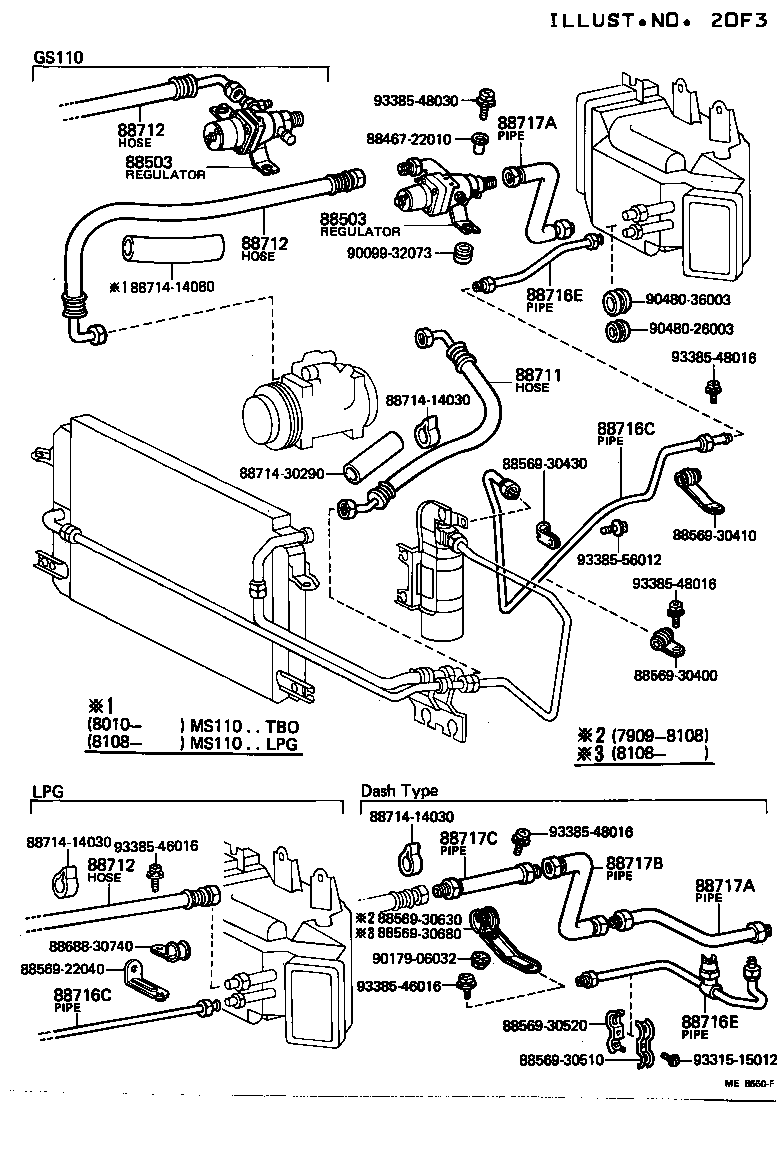

ILLUST NO. 2 OF 3(7909- )GS11#,MS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD

Click highlighted areas on diagram

diagram 8846722010 88503 88503 8856922040 8856930400 8856930410 8856930430 8856930510 8856930520 8856930630 8856930680 8868830740 88711 88712 88712 88712 8871414030 8871414030 8871414030 8871414080 8871430290 88716C 88716C 88716E 88716E 88717A 88717A 88717B 88717C 9009932073 9017906032 9048026003 9048036003 9331515012 9338546016 9338546016 9338548016 9338548016 9338548016 9338548030 9338556012
Part # Description Qty Price
88503 - REGULATOR ASSY, PRESSURE
88503-30330

MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88503 - REGULATOR ASSY, PRESSURE
88503-30330

MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30520

MS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30530

MS11#..CBR,EFI,TBO

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30530

MS11#..CBR,EFI,TBO

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30530

MS11#..CBR,EFI,TBO

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-30310

MS11#..CBR,EFI,TBO

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-30310

MS11#..CBR,EFI,TBO

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30350

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

W/RR COOLER

 1
88726-30400

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30350

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

W/RR COOLER

 1
88726-30400

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30260

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

W/RR COOLER

 1
88727-30400

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30260

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

W/RR COOLER

 1
88727-30400

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
Common parts
88467-22010
88569-22040
88569-30400
88569-30410
88569-30430
88569-30510
88569-30520
88569-30630
88569-30680
88688-30740
88714-14030
88714-14080
88714-30290
90099-32073
90179-06032
90480-26003
90480-36003
93315-15012
93385-46016
93385-48016
93385-48030
93385-56012

ILLUST NO. 1 OF 3(7909- )BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

Click highlighted areas on diagram

diagram 88460 88460 8846714050 8846714050 8846714050 8846714050 8846722040 8846722040 8846730270 8846730270 8846730270 8846730270 88470 88470 88470B 88470B 88472 88472 88479 88479 8856930430 8856930430 8856930460 8856930460 8856930550 8856930590 8856930600 8868830670 8868830670 8868830680 8868830680 88715A 88715A 88716A 88716A 88716B 88716B 9009932073 9009932073 9009932100 9009932100 9009932100 9009932100 9015960128 9015960128 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9338546016 9338546016 9338546025 9338546025 9338546030 9338546030 9338546030 9338546030 9338556012 9338556012 9354055010 9354055010 9354055010
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-30450

GS11#,MS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
88460 - CONDENSER ASSY, COOLER
88460-30450

GS11#,MS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88470B - BOLT, FUSE
90099-04579

GS11#,LS11#,MS11#,RS110

 1
88470B - BOLT, FUSE
90099-04579

GS11#,LS11#,MS11#,RS110

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30250

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30250

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002

GS11#,LS11#,MS11#,RS110

300G

 3
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002

GS11#,LS11#,MS11#,RS110

300G

 3
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30300

GS11#,MS11#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30300

GS11#,MS11#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30290

GS11#,MS11#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30290

GS11#,MS11#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30300

GS11#,LS11#,MS11#,RS110

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30300

GS11#,LS11#,MS11#,RS110

 1
Common parts
88467-14050
88467-22040
88467-30270
88569-30430
88569-30460
88569-30550
88569-30590
88569-30600
88688-30670
88688-30680
90099-32073
90099-32100
90159-60128
90179-06032
93385-46016
93385-46025
93385-46030
93385-56012
93540-55010

ILLUST NO. 3 OF 3(7909- )HT,SED..BTP,CTE,DLX,SAL,SDX,SPE..CBR,EFI,TBO,TD,TDE ; (8108- )LS110..

Click highlighted areas on diagram

diagram 88386A 88386B 88386C 88386D 88386E 88386E 88387A 88387A 88387B 88387C 88387D 8856930420 8856930650 8856930650 8856930650 8856930650 8856930670 8857830290 8857830360 8857830370 8868830550 88713 88713 88716E 88717A 88717A 8871830621 8871830650 8871830650 8871830650 8871830650 8871830780 8871830820 8871830820 8871830840 9048050006 9048050006 9338516014 9338516014 9338516014 9338516014 9338516020 9338518016
Part # Description Qty Price
88386A - PIPE, REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER
88726-30460

GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE)

 1
88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B
88726-30470

GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE)

 1
88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C
88726-30480

MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI)

 1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88726-30330

MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI)

 1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88726-30330

MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI)

 1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88727-30290

MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI)

 1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88727-30290

MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI)

 1
88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B
88727-30340

MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI)

 1
88387C - PIPE, REAR COOLER REFRIGERANT SUCTION, C
88727-30330

GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE)

 1
88387D - PIPE, REAR COOLER REFRIGERANT SUCTION, D
88727-30320

GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC)

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-30520

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-30520

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30350

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

W/RR COOLER

 1
88726-30400

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30260

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

W/RR COOLER

 1
88727-30400

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30260

GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC)

W/RR COOLER

 1
88727-30400

GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)

 1
Common parts
88569-30420
88569-30650
88569-30670
88578-30290
88578-30360
88578-30370
88688-30550
88718-30621
88718-30650
88718-30780
88718-30820
88718-30840
90480-50006
93385-16014
93385-16020
93385-18016
