MS110-STHGE (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
MEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909-8108)LS110,MS110..HT ; (8108- )GS11#,LS11#,MS110,117,RS110

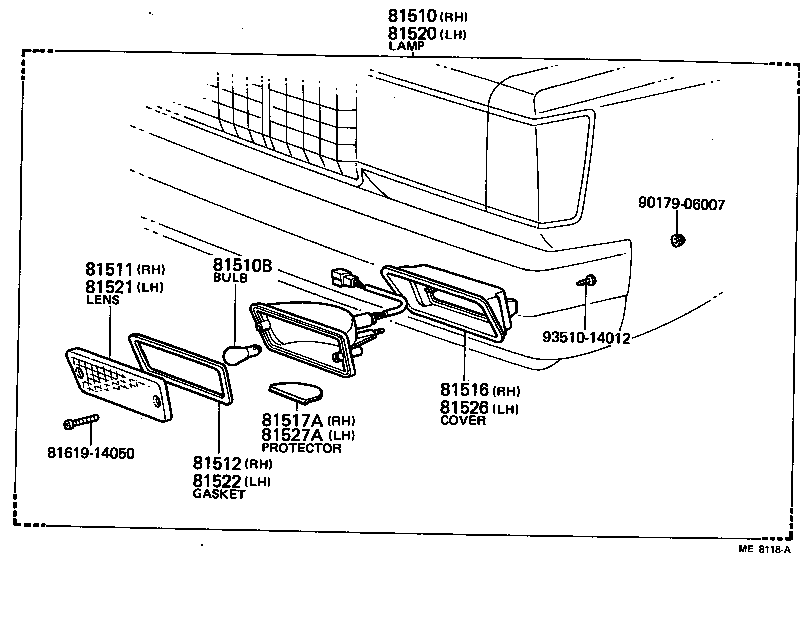

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-39345 |
LS110,MS110..HT |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11230 |
GS11#,LS11#,MS11#,RS110 12V 23W,12V 23W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-14170 |
LS110,MS110..HT |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-14150 |
LS110,MS110..HT |
1 | ||
| 81516 - RIM, FRONT TURN SIGNAL LAMP, RH | ||||
| 81516-30240 |
LS110,MS110..HT |
1 | ||
| 81517A - PROTECTOR, FRONT TURN SIGNAL LAMP, RH | ||||
| 81517-14170 |
LS110,MS110..HT |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-39345 |
LS110,MS110..HT |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-14170 |
LS110,MS110..HT |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-14150 |
LS110,MS110..HT |
1 | ||
| 81526 - RIM, FRONT TURN SIGNAL LAMP, LH | ||||
| 81526-30400 |
LS110,MS110..HT |
1 | ||
| 81527A - PROTECTOR, FRONT TURN SIGNAL LAMP, LH | ||||
| 81517-14170 |
LS110,MS110..HT |
1 | ||
| Common parts | ||||
| 81619-14050 | ||||
| 90179-06007 | ||||
| 93510-14012 | ||||
