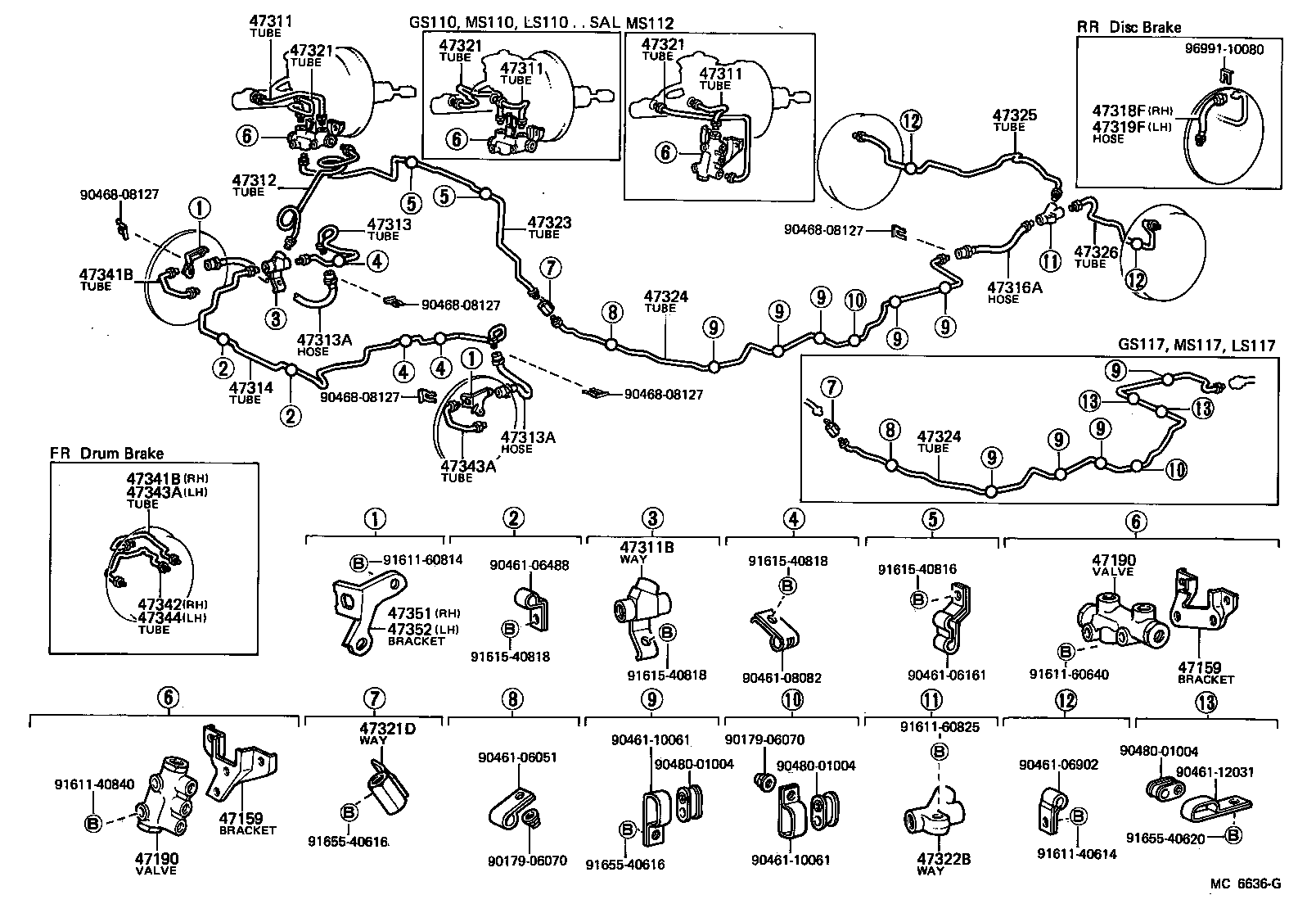

MS110-STHGE (1979)
Toyota Crown
(7909- )CBR,DSL,EFI,LPG,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-30110 |
GS11#,LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-30110 |
GS11#,LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-30090 |
MS110..SPE..TBO;GS110,LS110,111,MS110..SAL 25KG/CM2 |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-30090 |
MS110..SPE..TBO;GS110,LS110,111,MS110..SAL 25KG/CM2 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30310 |
MS110..SAL..EFI |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30310 |
MS110..SAL..EFI |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30310 |
MS110..SAL..EFI |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10014 |
GS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30090 |
LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30090 |
GS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02360 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02360 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE FR DISC BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30130 |
GS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32855 |
GS110,LS110,111,MS110,112,RS110 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96940-32105 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-32105 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30030 |
MS110..SAL..EFI |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30030 |
MS110..SAL..EFI |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30030 |
MS110..SAL..EFI |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10041 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47315-30160 |
LS11#,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47316-30130 |
MS110..SAL..EFI W/ESC |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47322-30060 |
GS110,LS110,111,MS110,112,RS110..HT,SED |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47322-30060 |
GS110,LS110,111,MS110,112,RS110..HT,SED |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47323-30060 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47324-30020 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30010 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30010 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30010 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30010 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30120 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30070 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90461-06051 | ||||
| 90461-06161 | ||||
| 90461-06488 | ||||
| 90461-06902 | ||||
| 90461-08082 | ||||
| 90461-10061 | ||||
| 90461-12031 | ||||
| 90468-08127 | ||||
| 90480-01004 | ||||
| 91611-40614 | ||||
| 91611-40840 | ||||
| 91611-60640 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91615-40816 | ||||
| 91615-40818 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 96991-10080 | ||||

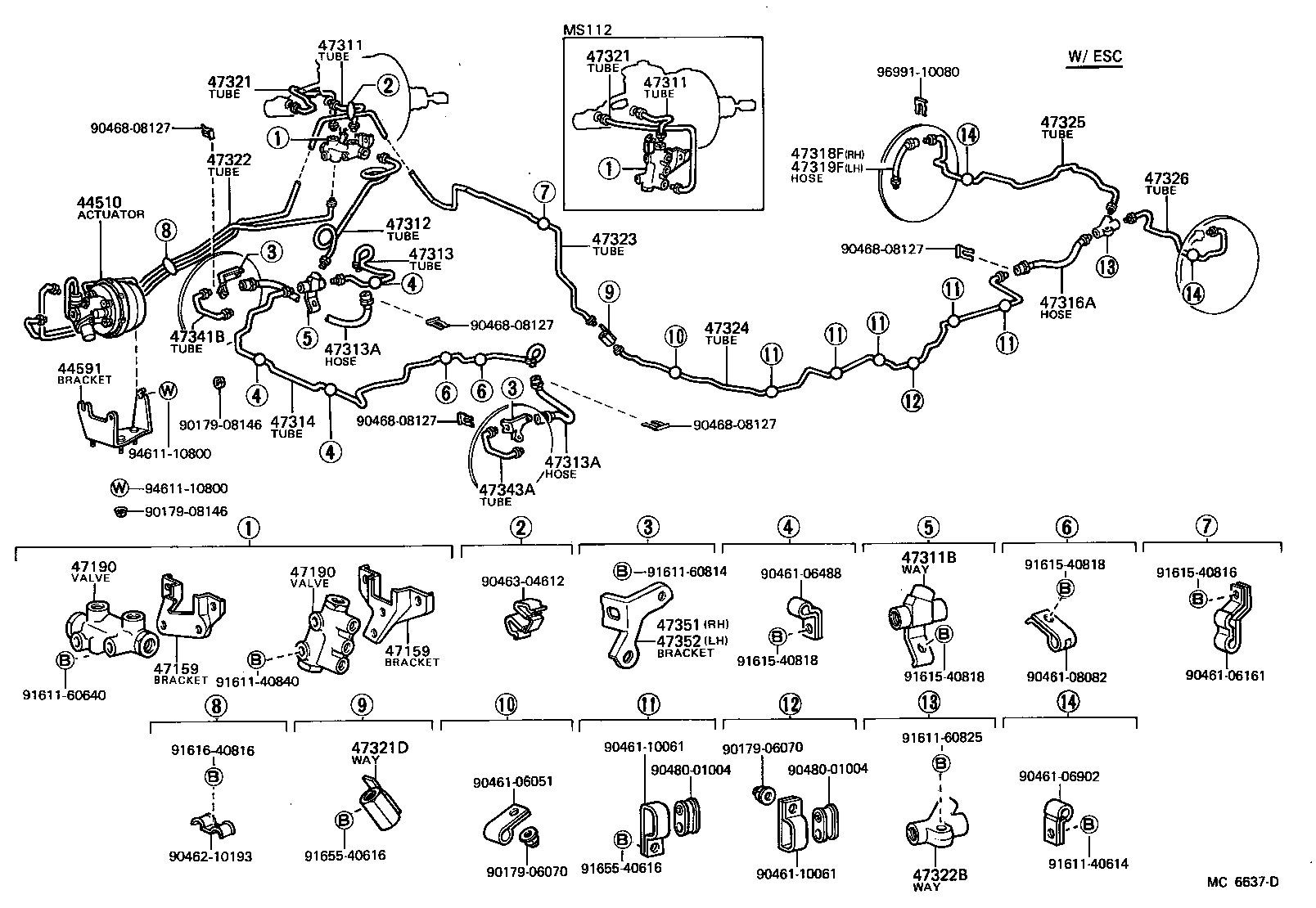

ILLUST NO. 1 OF 2(7909-8108)ROY,SAL..EFI ; (8108- )MS112
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-30110 |
GS11#,LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-30110 |
GS11#,LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-30090 |
MS110..SPE..TBO;GS110,LS110,111,MS110..SAL 25KG/CM2 |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-30090 |
MS110..SPE..TBO;GS110,LS110,111,MS110..SAL 25KG/CM2 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30310 |
MS110..SAL..EFI |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30310 |
MS110..SAL..EFI |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10014 |
GS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30090 |
LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30090 |
GS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02360 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE FR DISC BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02360 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE FR DISC BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30130 |
GS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32855 |
GS110,LS110,111,MS110,112,RS110 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96940-32105 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96940-32105 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30030 |
MS110..SAL..EFI |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30030 |
MS110..SAL..EFI |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10041 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47315-30200 |
MS110..SAL..EFI W/ESC |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47315-30160 |
LS11#,MS110,117,RS110..CBR,DSL,EFI,LPG |
1 | ||
| 47316-30130 |
MS110..SAL..EFI W/ESC |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47322-30060 |
GS110,LS110,111,MS110,112,RS110..HT,SED |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47323-30060 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47324-30020 |
MS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30010 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30010 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30120 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30070 |
GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90461-06051 | ||||
| 90461-06161 | ||||
| 90461-06488 | ||||
| 90461-06902 | ||||
| 90461-08082 | ||||
| 90461-10061 | ||||
| 90462-10193 | ||||
| 90463-04612 | ||||
| 90468-08127 | ||||
| 90480-01004 | ||||
| 91611-40614 | ||||
| 91611-40840 | ||||
| 91611-60640 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91615-40816 | ||||
| 91615-40818 | ||||
| 91616-40816 | ||||
| 91655-40616 | ||||
| 94611-10800 | ||||
| 96991-10080 | ||||

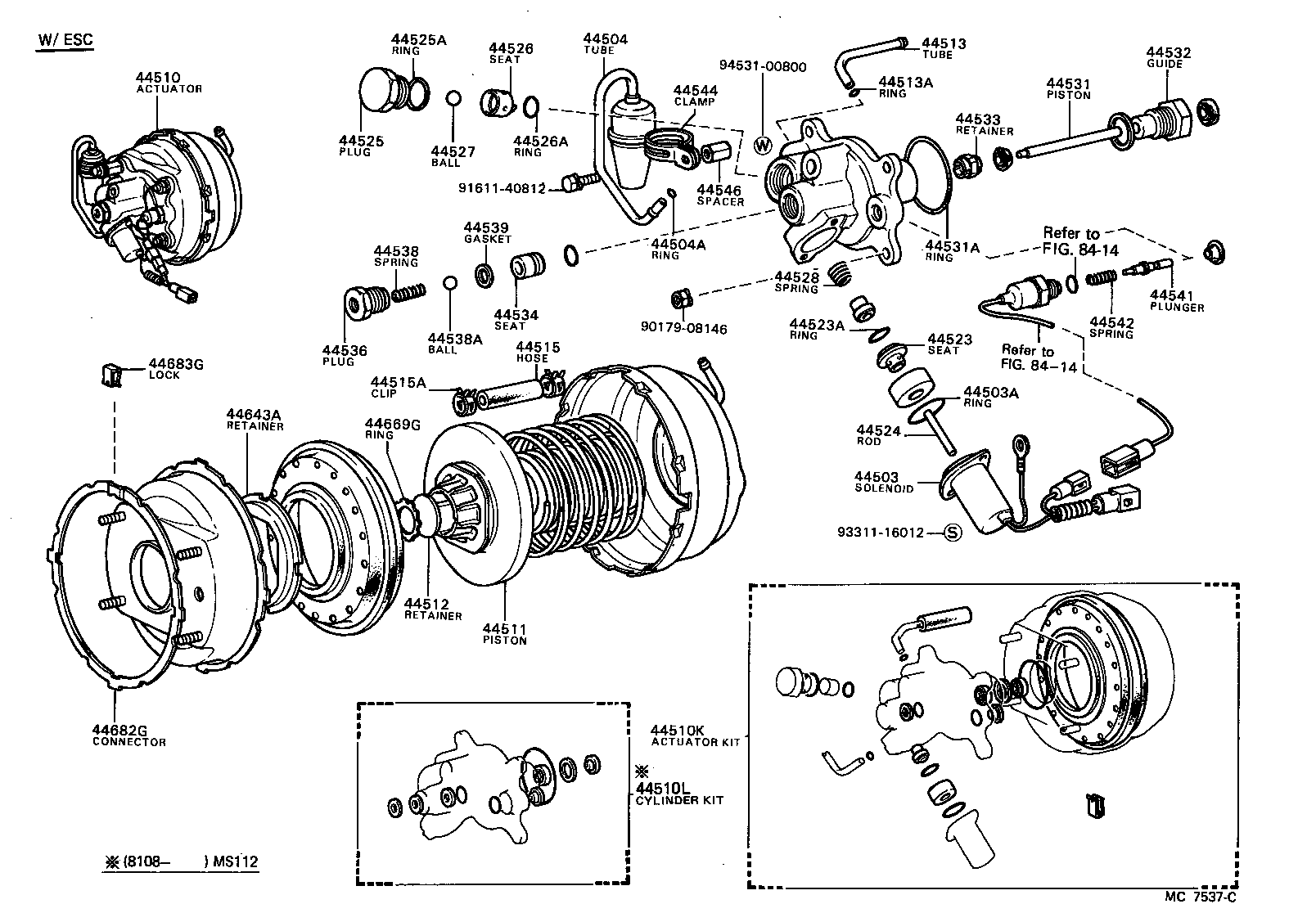

ILLUST NO. 2 OF 2(7909-8108)ROY,SAL..EFI ; (8108- )MS112
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44503 - SOLENOID SUB-ASSY, BRAKE ACTUATOR | ||||
| 44503-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44503A - RING, O(FOR BRAKE ACTUATOR SOLENOID) | ||||
| 96710-01031 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44504 - TUBE SUB-ASSY, AIR INLET | ||||
| 44504-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44504A - RING, O(FOR AIR INLET TUBE) | ||||
| 96710-01009 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44510K - ACTUATOR KIT, BRAKE | ||||
| 04448-30010 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44511 - PISTON, BRAKE ACTUATOR | ||||
| 44511-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44512 - RETAINER, BRAKE ACTUATOR PISTON | ||||
| 44512-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44513 - TUBE, BRAKE ACTUATOR | ||||
| 44513-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44513A - RING, O(FOR BRAKE ACTUATOR TUBE) | ||||
| 96710-01009 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44515 - HOSE, BRAKE ACTUATOR | ||||
| 44515-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44515A - CLIP(FOR BRAKE ACTUATOR HOSE) | ||||
| 90467-16141 |
MS110,112..(ROY,SAL)..EFI |
2 | ||
| 44523 - SEAT, AIR VALVE | ||||
| 44523-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44523A - RING, O(FOR AIR VALVE) | ||||
| 96710-01021 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44524 - ROD, SOLENOID | ||||
| 44524-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44525 - PLUG, G VALVE | ||||
| 44525-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44525A - RING, O(FOR G VALVE PLUG) | ||||
| 96710-01021 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44526 - SEAT, G VALVE | ||||
| 44526-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44526A - RING, O(FOR G VALVE) | ||||
| 96710-01017 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44527 - BALL, G VALVE | ||||
| 44527-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44528 - SPRING, AIR VALVE | ||||
| 44528-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44531 - PISTON, HYDRAULIC CYLINDER | ||||
| 44531-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44531A - RING, O(FOR HYDRAULIC CYLINDER BODY) | ||||
| 96710-02053 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44532 - GUIDE, HYDRAULIC CYLINDER PISTON | ||||
| 44532-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44533 - RETAINER, CYLINDER CAP(FOR BRAKE ACTUATOR) | ||||
| 44533-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44534 - SEAT, CUT VALVE (FOR BRAKE ACTUATOR) | ||||
| 44534-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44536 - PLUG, BRAKE ACTUATOR INLET | ||||
| 44536-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44538 - SPRING, CUT VALVE | ||||
| 44538-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44538A - BALL, CUT VALVE | ||||
| 90360-08009 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44539 - GASKET, BRAKE ACTUATOR BODY | ||||
| 44539-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44541 - PLUNGER, SWITCH | ||||
| 44541-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44542 - SPRING, SWITCH | ||||
| 44542-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44544 - CLAMP, TUBE | ||||
| 44544-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44546 - SPACER, AIR INLET | ||||
| 44546-30040 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44643A - RETAINER, DIAPHRAGM(FOR BRAKE ACTUATOR) | ||||
| 44643-12070 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44669G - RING, CIRCULAR INTERNAL(FOR BRAKE ACTUATOR) | ||||
| 44669-60010 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44682G - CONNECTOR, BOOSTER BODY(FOR BRAKE ACTUATOR) | ||||
| 44682-12070 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| 44683G - LOCK, CONNECTOR(FOR BRAKE ACTUATOR) | ||||
| 44683-20100 |
MS110,112..(ROY,SAL)..EFI |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40812 | ||||
| 93311-16012 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
