MS110-SSMGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MS11#

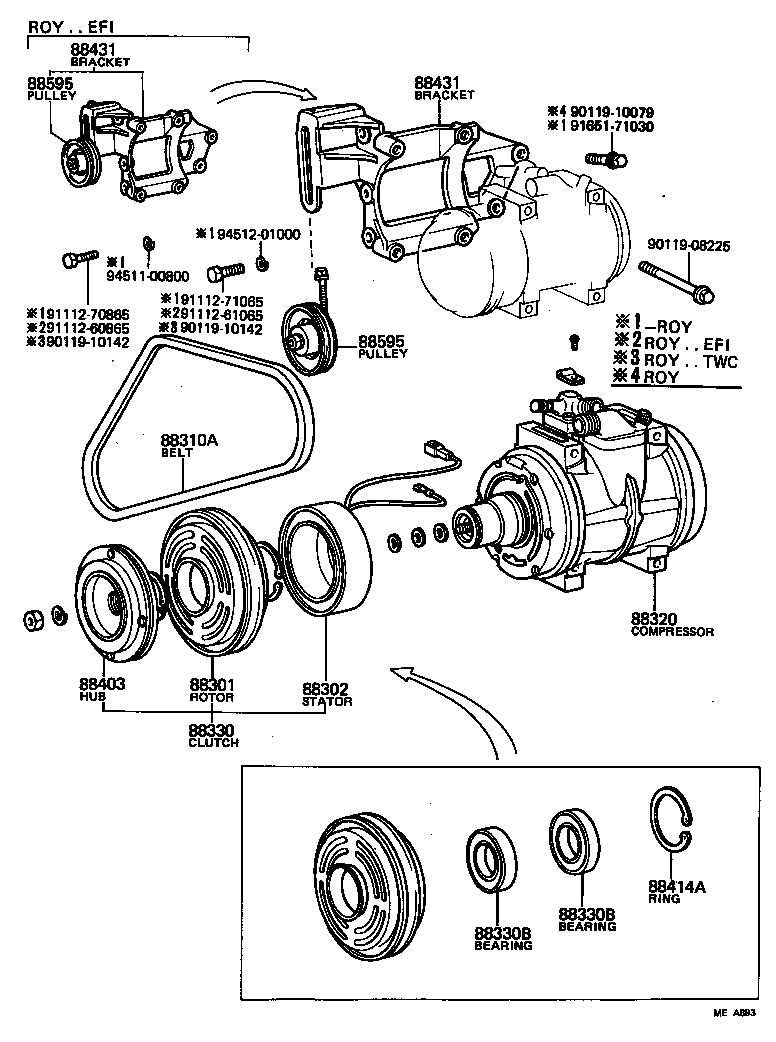

Click highlighted areas on diagram

diagram 88301 88302 88310A 88320 88330 88330B 88330B 88403 88414A 88431 88431 88595 88595 9011908225 9011910079 9011910142 9011910142 9111260865 9111261065 9111270865 9111271065 9165171030 9451100800 9451201000
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

MS11#..CBR,EFI,TBO

 1
88412-22020

MS11#..CBR,EFI,TBO

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-30390

MS11#..CBR,EFI,TBO

 1
88411-30340

MS11#..CBR,EFI,TBO

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00940

MS11#..CBR,EFI,TBO

 1
88320 - COMPRESSOR ASSY, COOLER
88320-30270

MS11#

 1
88330 - CLUTCH ASSY, MAGNET
88410-30390

MS11#..CBR,EFI,TBO

 1
88410-30350

MS11#..CBR,EFI,TBO

 1
88330B - BEARING, MAGNET CLUTCH
90099-10117

MS11#..CBR,EFI,TBO

 2
90099-10133

MS11#..CBR,EFI,TBO

 1
88330B - BEARING, MAGNET CLUTCH
90099-10117

MS11#..CBR,EFI,TBO

 2
90099-10133

MS11#..CBR,EFI,TBO

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

MS11#..CBR,EFI,TBO

 1
88403-22030

MS11#..CBR,EFI,TBO

 1
88414A - RING, SHIELD SNAP
90099-07113

MS11#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30430

MS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30430

MS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

GS11#,MS11#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

GS11#,MS11#

 1
Common parts
90119-08225
90119-10079
90119-10142
91112-60865
91112-61065
91112-70865
91112-71065
91651-71030
94511-00800
94512-01000
