MS110-SSMGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

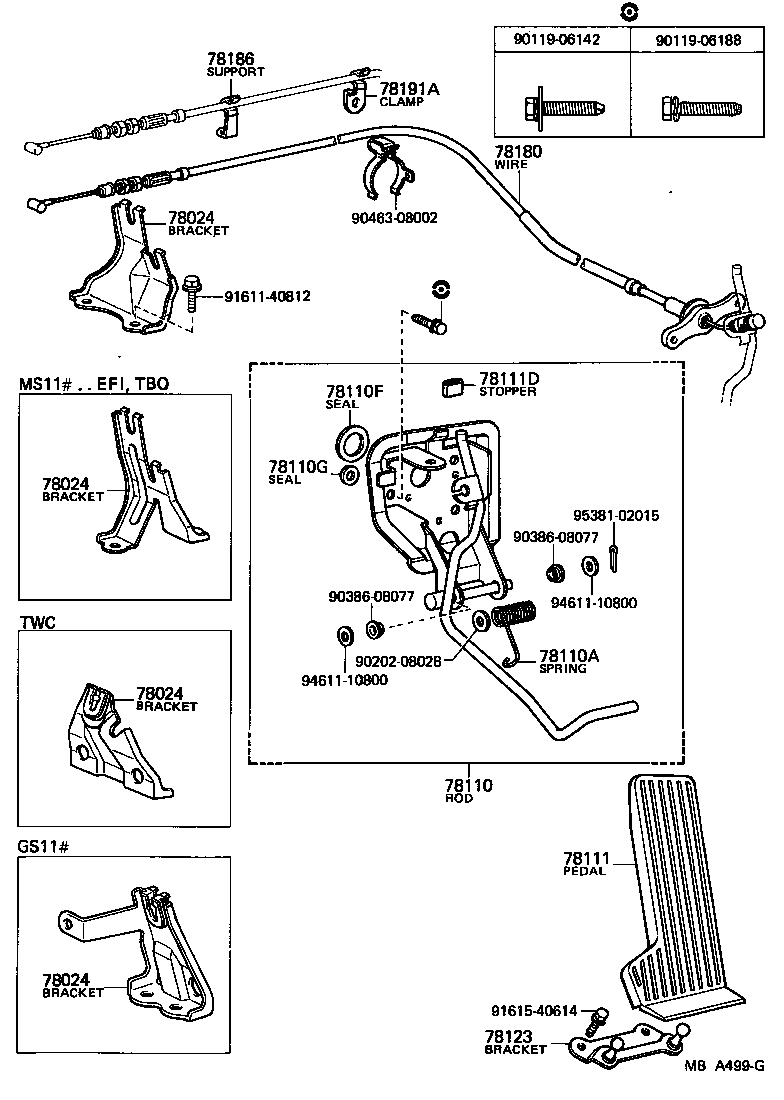

ILLUST NO. 1 OF 2(7909- )CBR,EFI,TBO,TWC

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78110 78110A 78110F 78110G 78111 78111D 78123 78180 78186 78191A 9011906142 9011906188 9020208028 9038608077 9038608077 9046308002 9161140812 9161540614 9461110800 9461110800 9538102015
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30220

MS110,112..MTM..(ROY,SAL,SDX,SPE)..EFI

W/AUTO DRIVE

 1
78120-30210

GS11#,MS11#..MTM..(CBR,EFI)

 1
78120-30280

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
78120-30270

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

W/AUTO DRIVE,COLD SPEC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29010

MS110,112..MTM..(ROY,SAL,SDX,SPE)..EFI

W/AUTO DRIVE

 1
90508-23026

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

W/AUTO DRIVE,COLD SPEC

 1
90508-29011

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
90508-29010

GS11#,MS11#..MTM

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS11#,LS11#,MS11#,RS110

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS11#,LS11#,MS11#,RS110

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS11#,LS11#,MS11#,RS110

 1
78111-12100

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS11#,LS11#,MS11#,RS110

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30040

GS11#,LS11#,MS11#,RS110

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30040

MS110,112..EFI

 1
Common parts
90119-06142
90119-06188
90202-08028
90386-08077
90463-08002
91611-40812
91615-40614
94611-10800
95381-02015

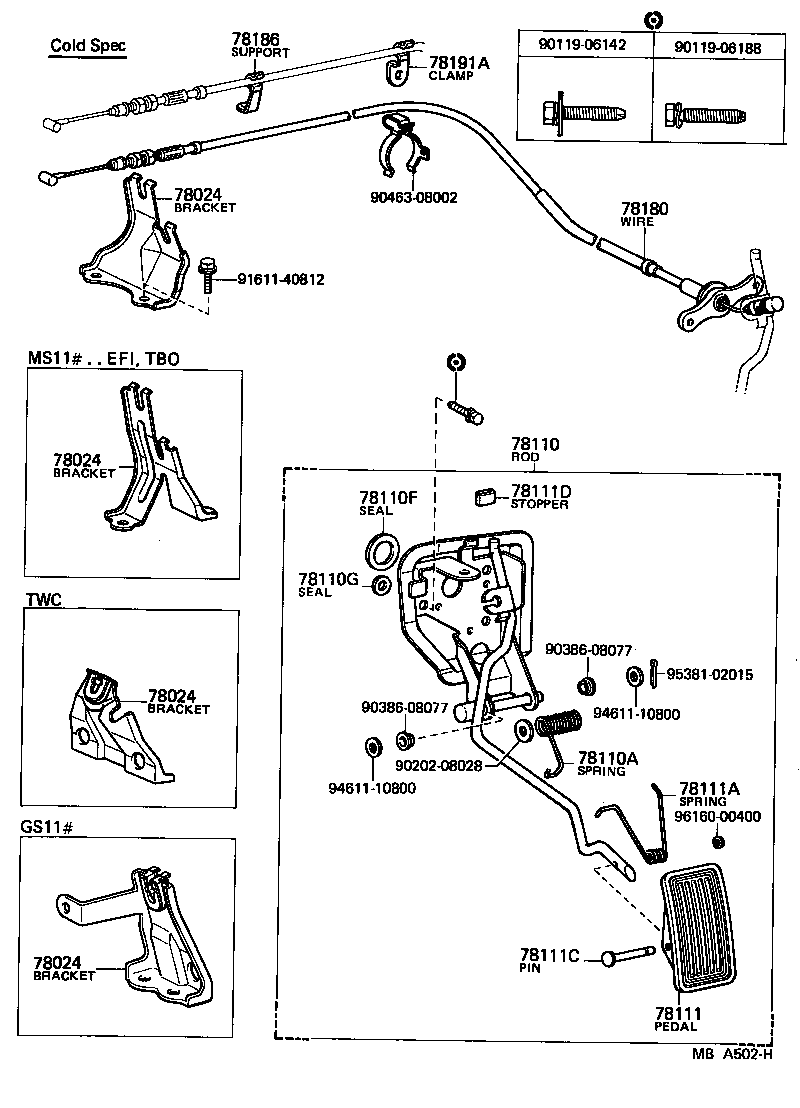

ILLUST NO. 2 OF 2(7909- )CBR,EFI,TBO,TWC

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78110 78110A 78110F 78110G 78111 78111A 78111C 78111D 78180 78186 78191A 9011906142 9011906188 9020208028 9038608077 9038608077 9046308002 9161140812 9461110800 9461110800 9538102015 9616000400
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MS110,112..EFI,TBO

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30220

MS110,112..MTM..(ROY,SAL,SDX,SPE)..EFI

W/AUTO DRIVE

 1
78120-30210

GS11#,MS11#..MTM..(CBR,EFI)

 1
78120-30280

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
78120-30270

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

W/AUTO DRIVE,COLD SPEC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29010

MS110,112..MTM..(ROY,SAL,SDX,SPE)..EFI

W/AUTO DRIVE

 1
90508-23026

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

W/AUTO DRIVE,COLD SPEC

 1
90508-29011

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
90508-29010

GS11#,MS11#..MTM

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS11#,LS11#,MS11#,RS110

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS11#,LS11#,MS11#,RS110

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS11#,LS11#,MS11#,RS110

 1
78111-12100

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-16002

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS11#,LS11#,MS11#,RS110

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30040

MS110,112..EFI

 1
Common parts
90119-06142
90119-06188
90202-08028
90386-08077
90463-08002
91611-40812
94611-10800
95381-02015
96160-00400
