MS110-SSMGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8010)LS110,MS110..HT

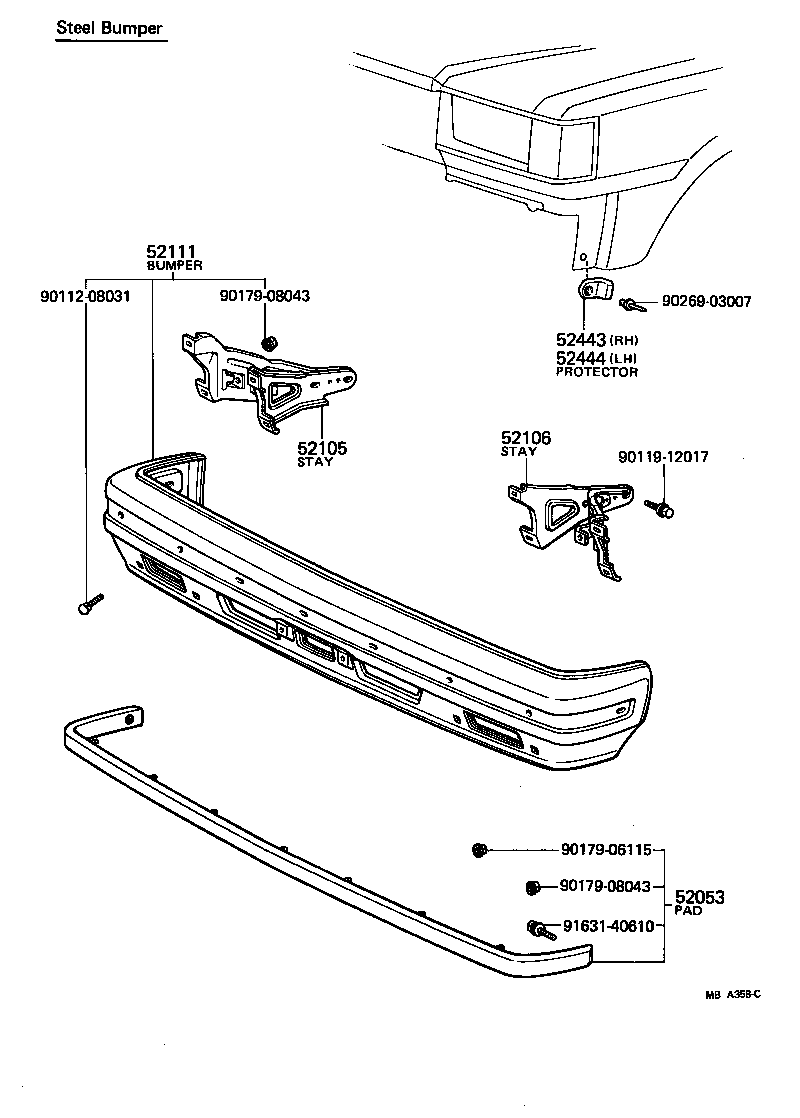

Click highlighted areas on diagram

diagram 52053 52105 52106 52111 52443 52444 9011208031 9011912017 9017906115 9017908043 9017908043 9026903007 9163140610
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52053-39045

LS110,MS110..HT

 1
52051-39045

MS110..HT..SAL

WIDE

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-30070

GS110,LS110,111,MS110..HT

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-30080

GS110,LS110,111,MS110..HT

 1
52111 - BUMPER ASSY, FRONT
52111-39126

LS110,MS110..HT

 1
52111-39125

LS110,MS110..HT

 1
52443 - PROTECTOR, FRONT BUMPER, RH
52541-30030

GS11#,LS11#,MS110,117,RS110

 1
52444 - PROTECTOR, FRONT BUMPER, LH
52541-30030

GS11#,LS11#,MS110,117,RS110

 1
Common parts
90112-08031
90119-12017
90179-06115
90179-08043
90269-03007
91631-40610

(8010-8108)LS110,MS110..HT ; (8108- )GS11#,LS11#,MS110,117,RS110

Click highlighted areas on diagram

diagram 52051 52052 52053 52105 52106 52111 52443 52444 9011208031 9011912017 9017906115 9017906115 9017908043 9017908043 9017908043 9026903007 9163140610 9163140610
Part # Description Qty Price
52051 - PAD SUB-ASSY, FRONT BUMPER, RH
52051-39065

LS110,MS110..HT

 1
52052 - PAD SUB-ASSY, FRONT BUMPER, LH
52052-39045

LS110,MS110..HT

 1
52053 - PAD SUB-ASSY, FRONT BUMPER
52053-39045

LS110,MS110..HT

 1
52051-39045

MS110..HT..SAL

WIDE

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-30070

GS110,LS110,111,MS110..HT

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-30080

GS110,LS110,111,MS110..HT

 1
52111 - BUMPER ASSY, FRONT
52111-39126

LS110,MS110..HT

 1
52111-39125

LS110,MS110..HT

 1
52443 - PROTECTOR, FRONT BUMPER, RH
52541-30030

GS11#,LS11#,MS110,117,RS110

 1
52444 - PROTECTOR, FRONT BUMPER, LH
52541-30030

GS11#,LS11#,MS110,117,RS110

 1
Common parts
90112-08031
90119-12017
90179-06115
90179-08043
90269-03007
91631-40610
