MS110-SSHZT (1980)
Toyota Crown
Production
Oct 1980
-
Aug 1981
Engine
MTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909-8108)HT

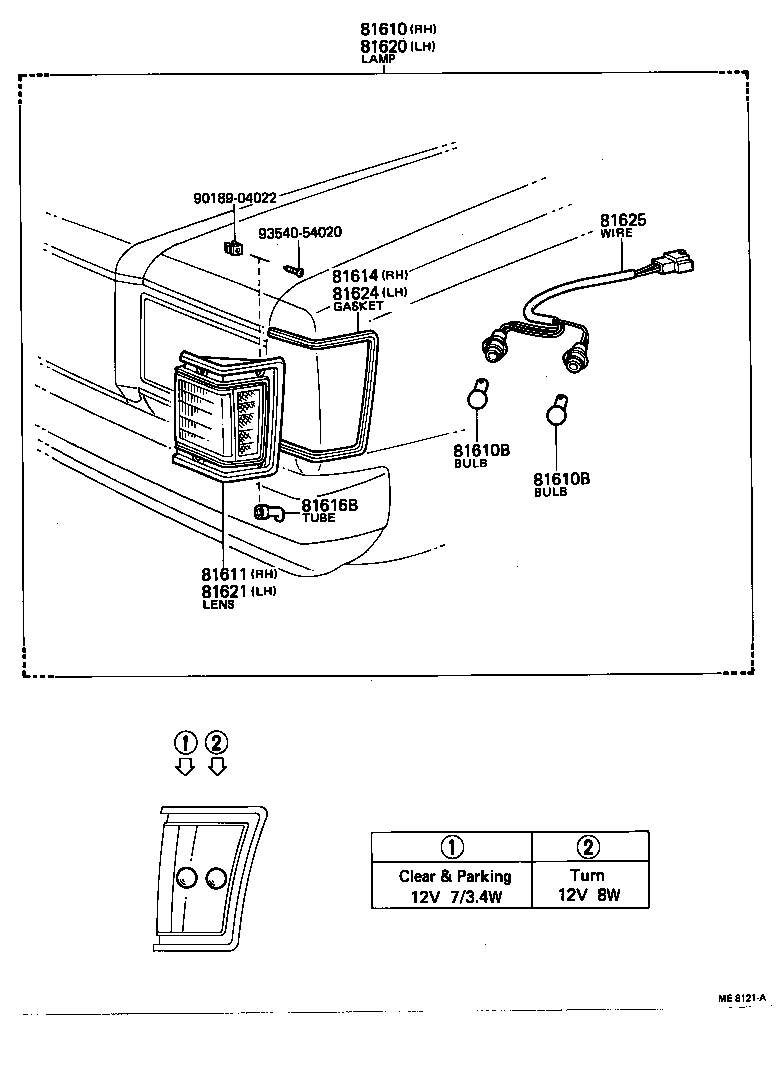

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-39315 |
LS110,MS110,112..HT |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-11080 |
LS11#,MS11#,RS110 12V 8W |
2 | ||
| 90981-12007 |
GS11#,LS11#,MS11#,RS110 12V 7/3.4W |
2 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-11080 |
LS11#,MS11#,RS110 12V 8W |
2 | ||
| 90981-12007 |
GS11#,LS11#,MS11#,RS110 12V 7/3.4W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-30160 |
LS110,MS110,112..HT |
1 | ||
| 81614 - GASKET, PARKING AND CLEARANCE LAMP BODY, RH | ||||
| 81614-30160 |
LS110,MS110,112..HT |
1 | ||
| 81616B - TUBE, PARKING AND CLEARANCE LAMP | ||||
| 81616-30160 |
LS110,MS110,112..HT |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-39315 |
LS110,MS110,112..HT |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-30160 |
LS110,MS110,112..HT |
1 | ||
| 81624 - GASKET, PARKING AND CLEARANCE LAMP BODY, LH | ||||
| 81624-30160 |
LS110,MS110,112..HT |
1 | ||
| 81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP | ||||
| 81615-30160 |
LS110,MS110,112..HT |
2 | ||
| Common parts | ||||
| 90189-04022 | ||||
| 93540-54020 | ||||
